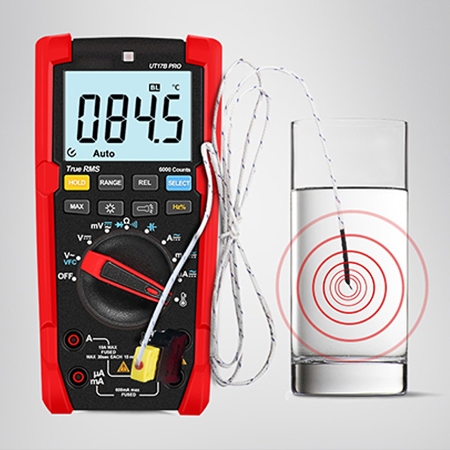

Buy SISCO digital multimeter online. The auto-ranging digital multimeter has frequency and duty cycle modes, which can switch frequency and duty cycle measurements between DC/AC at will, and is also equipped with a temperature measurement function with a resolution of 0.1β.

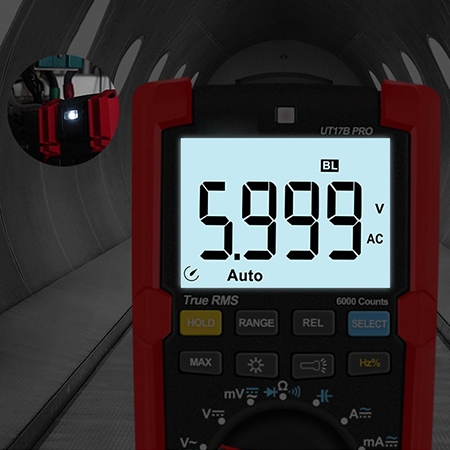

LCD large screen backlight display
- The measurement data function symbol display.
- The digital multimeter with ultra-large screen with high definition can accurately display data with backlight.
Smart digital multimeter with vertical stand design
- A vertical stand can be fixed to support the placement of the machine body.
- Free your hands for easy operation and reading.

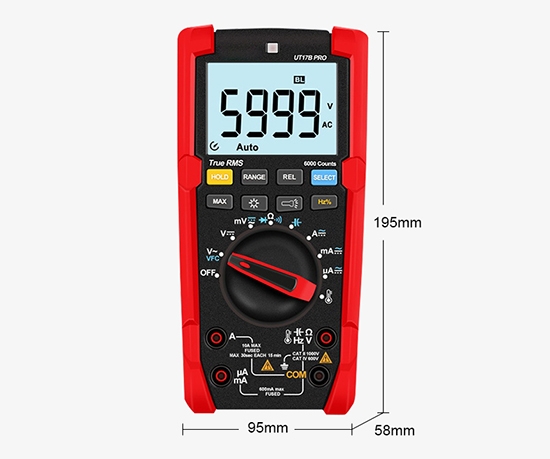

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
Β
| Model | SISCO-DM-17B PRO |
| DC Voltage | 0.1mV~1000V |
| AC Voltage | 0.1mV~1000V |
| DC Current | 0.1γ~10A |
| AC Current | 0.1γ~10A |
| Resistor | 0.1Ξ©~60MΞ© |
| Capacitor | 0.001nF~6000γ |
| Frequency | 10Hz 100kHz |
| Duty Cycle | 1% 99.9% |
| Display digits | 6000 |
| Drop test | 1m |
| Temperature Measurement | -55β~500β |
| Battery | 1.5 V*2 AA |
| Safety level | CAT β ’ 1000V/ CAT β £ 600V |
| Auto shutdown | 15 min |
| VFC | β |
| Manual/Auto Range | β |
| True RMS | β |
| Continuity Test | β |
| Diode Test | β |
| Maximum/Minimum | β |
| Relative Value | β |
| Data Hold | β |
| Auto Backlight | β |
| Flashlight | β |

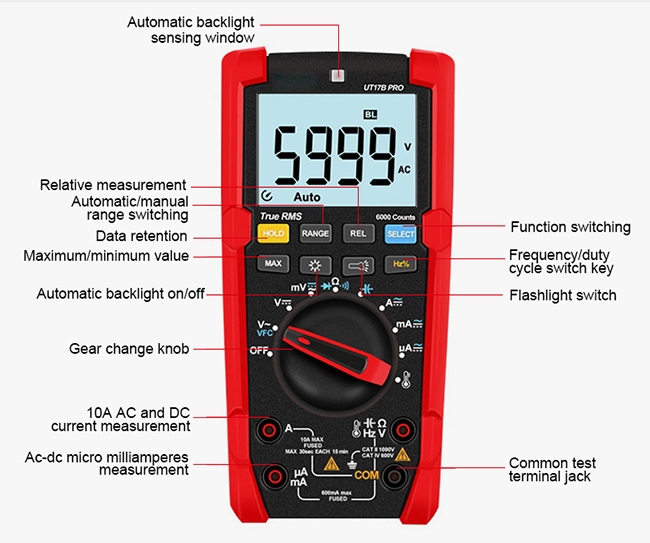

Structure
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: What is true rms digital multimeter?
A True RMS (Root Mean Square) Digital Multimeter is a type of multimeter designed to provide accurate measurements of AC (alternating current) signals, including non-sinusoidal waveforms. Unlike standard multimeters that assume a purely sinusoidal waveform when calculating AC measurements, a True RMS multimeter accurately measures the effective value of any AC waveform, regardless of its shape.
A True RMS digital multimeter is an essential tool for accurately measuring AC signals, especially in environments where waveforms are not purely sinusoidal. Its precision and versatility make it invaluable for industrial, commercial, HVAC, and electronic repair applications.
