Current Transformers

Buy high precision clamp-on current sensor, range 0.00A～800A AC, jaw size Φ48mm, ratio 4000:1. High voltage clamp-on current transformer adopts new CT technology and portable clamp-on design for non-contact measurement without disconnecting the line under test.

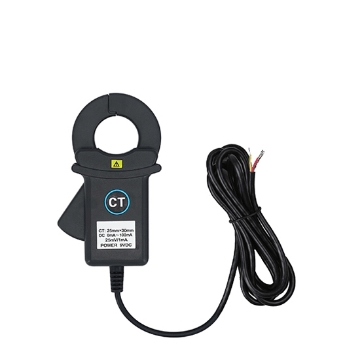

The clamp DC current transformer is used for online detection of DC leakage current and DC small current, with a range of 0.1mA~100mA DC and a jaw size of 25mm x 30mm, the range, output signal, and output interface of the DC transformer can be customized.

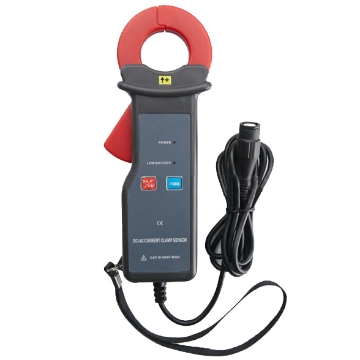

Clamp-on current transformer range of 0.0A ~ 1000A AC DC, resolution of 0.1A, an accuracy level of 2.0, with good stability, and strong anti-interference ability, it is the ideal tool for AC and DC current, phase, electrical energy, power, power factor, and another testing.

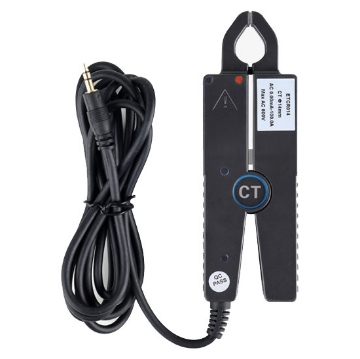

High precision clamp-on current transformer designed for power field testing, range 0.00mA~100A AC, using the new CT technology, without disconnecting the line under test, non-contact measurement, which can be safely and quickly connected to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, etc..

AC DC clip-on current transformer with built-in Hall element, high accuracy, strong anti-interference ability, accuracy level 3.0, ratio 2500:1, jaw size φ68mm, range 0.0A~1500A AC/DC. Clamp-on current transformer is widely used in electric power, communication, railroad, oil field, construction, and other fields.

clamp on current transformer range 0.00mA～20A AC, ratio: 800:1, resolution: 0.01mA, accuracy class: 0.5, output interface optional BNC plug, 4.0mm double banana plug, and 3.5mm audio plug. The portable clamp-on current transformer allows safe and fast connection to phase detection analyzers, industrial control devices, and high-precision digital multi-meters without disconnecting the line under test.

Buy a high-performance clamp-on current transformer online, range 0.00mA~30.0A AC, resolution 0.01mA AC, accuracy class 0.5, ratio 2500:1 (customizable). Clamp ct transformer is suitable for detecting high precision AC leakage current, high harmonic current, phase, electrical energy, power, etc.

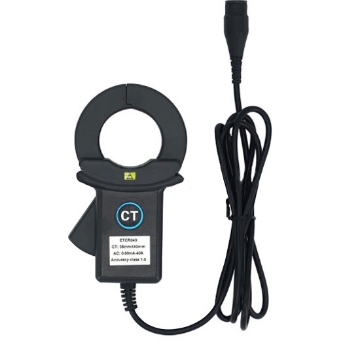

Clamp on high precision leakage current transformer for sale, accuracy level 0.5, maximum range 40A AC, ratio 800:1, the standard length of the output lead is 2 meters, which can measure various electrical parameters without removing the cable.

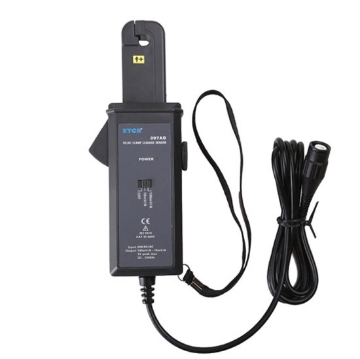

High precision AC/DC clamp-on current transformer measuring range of 0mA～50A, output mode 10mV/1A or 100mV/1A (manual shift), output interface optional BNC plug/4.0mm double banana plug 3.5mm audio plug/bare wire tap, applies to power metering system, high speed rail system and automobile circuit overhaul.

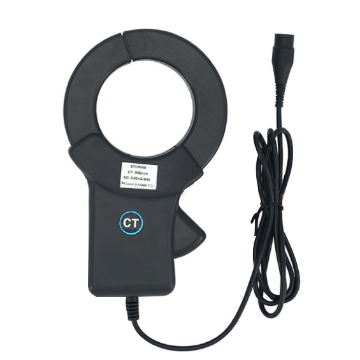

The clamp current transformer is designed for quick and easy installation, range 60A AC, ratio: 800:1, accuracy class 0.5, jaw size Φ68mm. Clamp-on CT provides standard AC current output, suitable for easy measurement on single-phase/three-phase circuits, with good stability and strong anti-interference capability.

The through-hole diameter of the open/closed fire monitoring residual current transformer ranges from 25mm to 150mm, with main circuit currents covering 63A to 1000A, and unbalanced current output values ranging from 10mA to 1A, not only meets the technical requirements for various accuracy levels but also complies with the stringent balance performance requirements of the new national standards.

The flexible current transformer measures AC currents for power metering, power quality analysis and general purpose applications, with a coil diameter of Φ12mm and a response frequency of 0.1Hz to 1MHz, which provides a versatile solution when space is limited and a rope CT is needed to physically wind irregularly shaped conductors or wires.

The flexible current transformer coil diameter Φ7.5mm, range 0A~10000A, coil inner diameter φ50mm,100mm, 500mm optional. The Coil current transformer is soft and flexible, with no exposed metal conductors in the coil section, making it suitable for measuring current in conductors of very large size or irregular shape.

The flexible current transformer is composed of integrator and coil, with a response bandwidth of 0.1Hz-1MHz, range AC 0A~3000A/6000/10000A AC, coil diameter Φ7.5mm or Φ12mm optional. Flexible current transformer with integrator allows more convenient integration into other test equipment, such as power quality analyzer, harmonic analyzer, power parameter recorder, phase detection analyzer, etc.

The flexible current transformer reduces the input current by integrating the output voltage signal, the range is available from AC 3000A, 6000A or 10000A, the coil diameter of 7.5mm, sisco flexible current transformer is soft and flexible, applicable to narrow environments and dense places of the lineup.

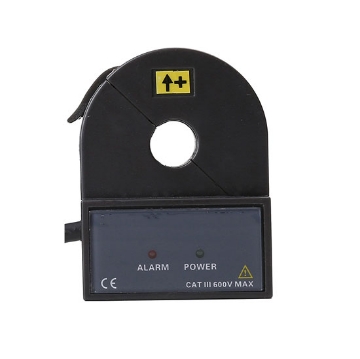

The split core current transformer is a device for high-precision online detection of DC leakage current, with a range of 100mA DC, a closing size of 10mm, and an accuracy level of 3.0. The range, output signal, and output interface of the split core current transformer is available for customization.

The split core current transformer for online detection of DC leakage current, range of 0.0mA ~ 100mA DC, power supply 12V DC, wide application in DC power supply system busbar, and each branch insulation condition real-time monitoring.

Buy online split core current transformer for detecting AC leakage current, range 0.000mA~10A AC, jaw size 80mm x 20mm, AC leakage sensor with split CT structure, which can be installed without disconnecting the circuit under test.

10A AC split core current transformer has super anti-interference ability, high test stability and accuracy, 90mm jaw size, 1000:1 ratio, induction current output, suitable for lightning arrester and insulator leakage current online test.

Split core current transformer measuring range 0.00mA to 20A AC, CT size Φ10mm, accuracy class 0.5, double shielded, suitable for complex interference environments. The Leakage current transformer provides a cost effective way to measure current without disconnecting the conductor, thus reducing installation and commissioning time.
