Good price digital multimeter can accurately measure voltage and current in all conditions, including noisy environments affected by harmonics. The non-contact electrical multimeter also accurately tests temperature, capacitance, frequency, duty cycle, test diodes and continuity.

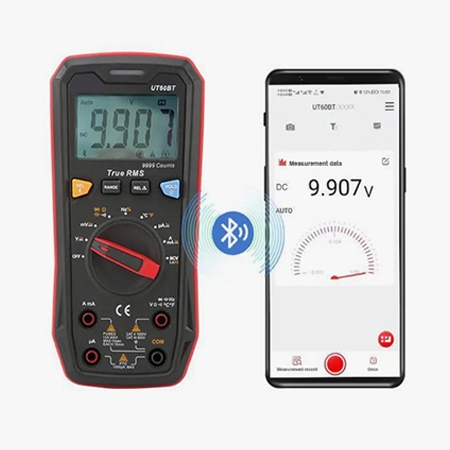

Bluetooth connection APP
- Adopt to mobile phone APP terminal.
- The Bluetooth digital multimeter has photo taking function, screening function and trend chart function.

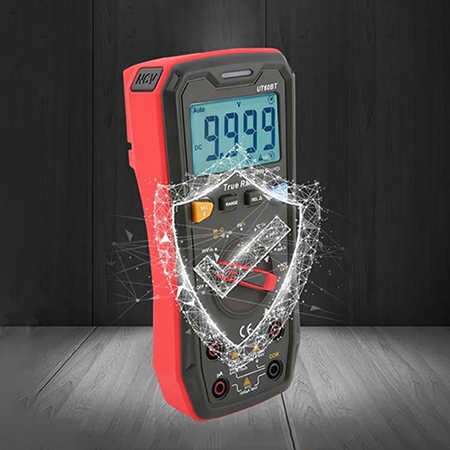

Bluetooth digital multimeter with the function of intelligent anti-burn
- Large LCD 9999-digit analog-to-digital display, true effective value measurement.
- The digital multi-meter has overvoltage and overcurrent alarm prompts, and full-speed anti-burn.

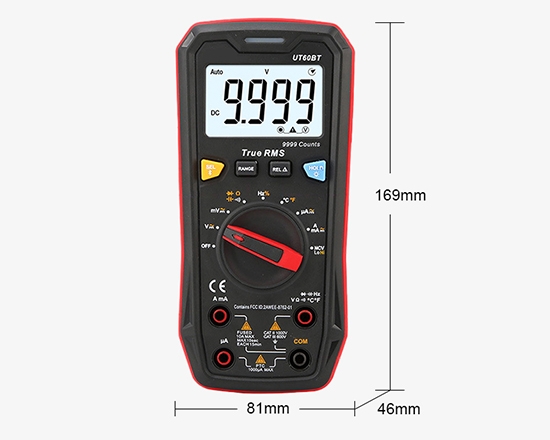

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
Β
| Model | SISCO-DM-UT60BT | |
| Basic Functions | Range | Basic Accuracy |
| DC Voltage | 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V | Β±(0.5%+2) |
| AC Voltage | 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V | Β±(0.8%+3) |
| DC Current | 999.9γ/999.9γ/9.999A | Β±(0.8%+3) |
| AC Current | 999.9γ/999.9γ/9.999A | Β±(1%+3) |
| Resistance | 999.9Ξ©/9.999γ/99.99γ/999.9γ/9.999γ/99.99γ | Β±(0.8%+3) |
| Capacitance | 9.999γ/99.9γ~999.9γ/9.999mF | Β±(4%+5) |
| Frequency | 99.99Hz~9.999MHz | Β±(0.1%+4) |
| Special Functions | ||
| Maximum Display | 9999 | |
| Low Voltage Indication | β€3.6V | |
| Automatic Shut-Down | 15min | |
| Safety Level | CATΒ β ‘Β 1000V/CAT β ’ 600V | |
| NCV | β | |
| Data Retention | β | |
| Diode Test | β | |
| Auto-ranging | β | |
| On/Off Buzzer | β | |
| Bluetooth | β | |
| Three-color LED Indication | β | |
| Overload Protection | β | |

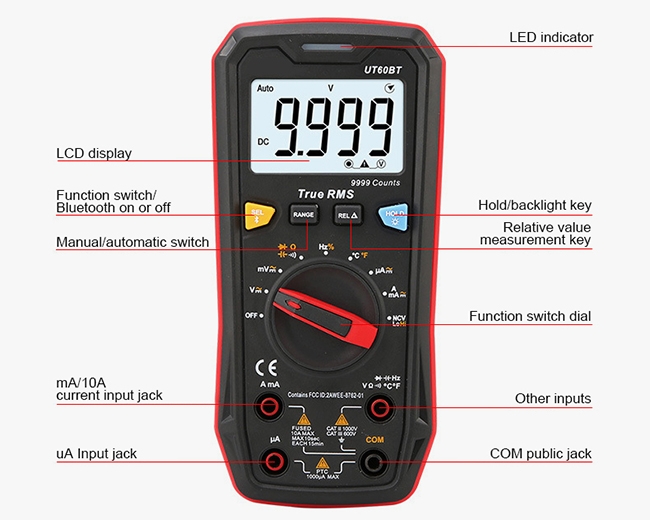

Structure
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: Can I use a Bluetooth digital multimeter without the app?
Yes, you can use a Bluetooth digital multimeter without the app. It functions like a standard digital multimeter, allowing you to measure voltage, current, resistance, and other parameters directly on the device. The Bluetooth functionality is an additional feature that enhances data logging, remote monitoring, and analysis but is not required for basic measurements.
