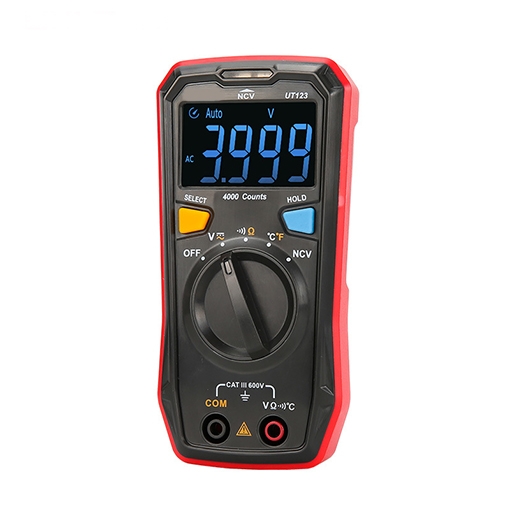

SISCO mini digital multimeter has a non-contact voltage detection NCV, sound and light indication alarm, and full range protection functions, making it safer and more reliable. The portable digital multimeter has a more user-friendly and compact design, which is convenient for one-handed holding, and it is equipped with an EBTN screen display to facilitate users to obtain clear readings at the maximum angle.

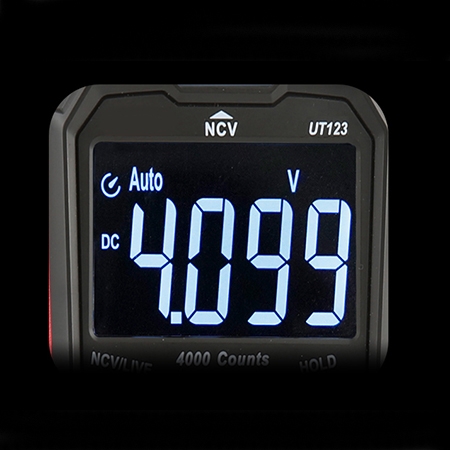

High-definition color screen
- The mini multimeter with a 4099-character display, and clear reading.
- Suitable for various complex and dark environments.
- The mini digital multimeter with ultra-large screen for easy reading.

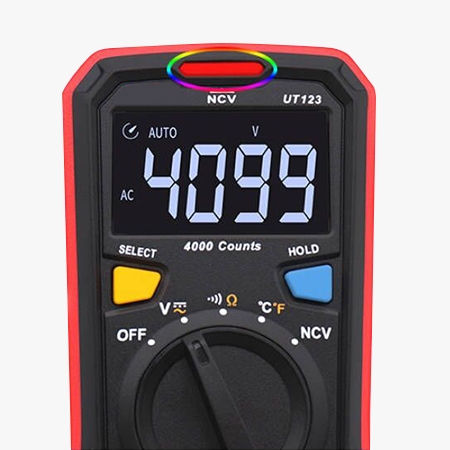

Portable mini digital multimeter with LED indicator light
- The color of the indicator light can better distinguish the strength of the electric field.
- When the front end of the product head is close to the power socket or power cord of about 200V of the mains, the head indicator light will display green, yellow and red from weak to strong as the electric field strength is sensed. The LCD will display "---" synchronously, accompanied by intermittent beeps. The more "---", the stronger the sensed electric field signal.

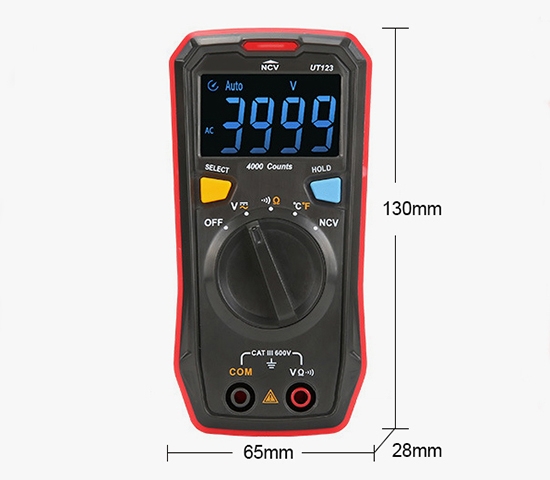

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
Β
| Model | SISCO-DM-UT123 | |
| Basic Functions | Range | Basic Accuracy |
| DC Voltage | 4mV/40V/400V/600V | Β±(0.5%+2) |
| AC Voltage | 4mV/40V/400V/600V | Β±(1%+3) |
| Resistance | 400Ξ©/4γ/40γ/400γ/4γ/20γ | Β±(1.2%+3) |
| Frequency | 40Hz~400Hz | Β±(0.1%+4) |
| Display Digit | 4000 | |
| Sampling Frequency | 3 seconds/time | |
| Power | 2*1.5V AAA | |
| Safety Level | CATΒ β ’ 600V | |
| NCV | β | |
| Data Retention | β | |
| Low Voltage Prompt | β | |
| On/Off Buzzer | β | |
| Professional-Grade Non-Contact AC Voltage Sensing (NCV) | β | |
| Sound and Light Alarm | β | |
| Overload Protection | β | |

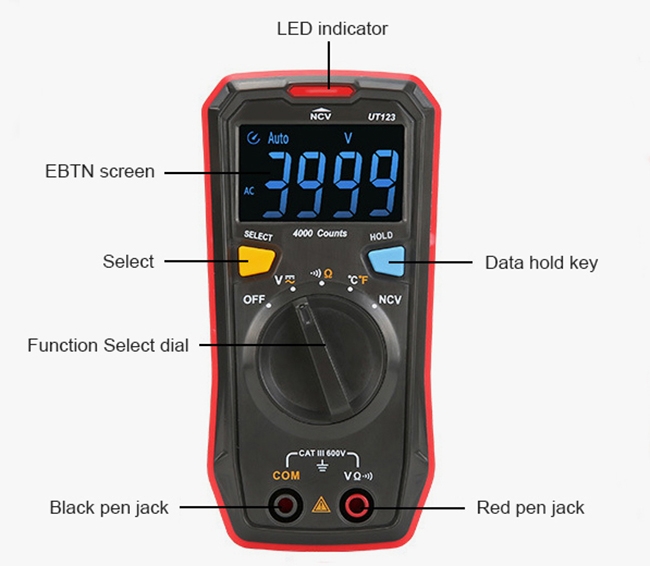

Structure
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: Are mini digital multimeters safe to use for high-voltage measurements?
While mini digital multimeters can handle common household voltages, they generally have lower maximum voltage ratings compared to larger models. Always check the specifications of your mini digital multimeter before using it for high-voltage measurements to ensure it does not exceed the rated capacity. For safety, avoid using mini multimeters for measurements that approach or exceed their maximum voltage rating, and consider using a full-sized multimeter designed for high-voltage applications instead.
