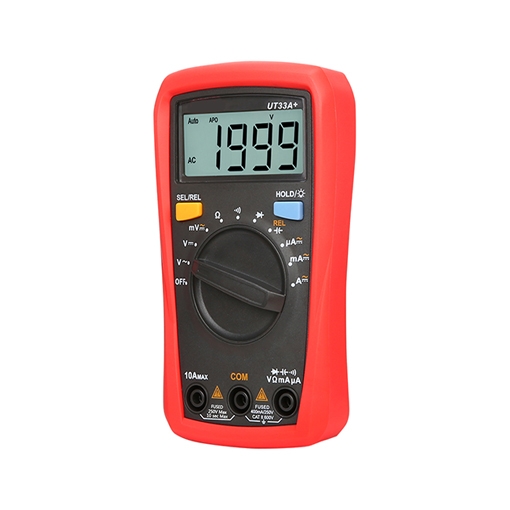

SISCO digital multimeter accurately measures AC/DC Voltage, AC/DC current, and resistance. The auto-ranging multimeter has the advantages of automatic shutdown, the backlight automatically turning off, loud buzzer and smooth ergonomic knob shifting.

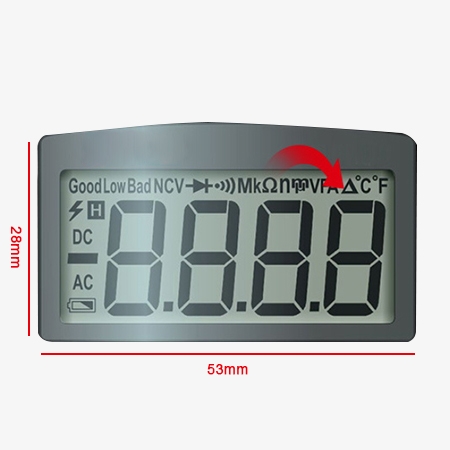

Large screen design for clearer reading
- The digital multimeter with the function of auto power off or can be set or canceled.
- With a backlight automatic shutdown function.
- Effectively save battery consumption.
- Full range gear symbol prompt.
- Full range unit display.
DDM with user friendly design

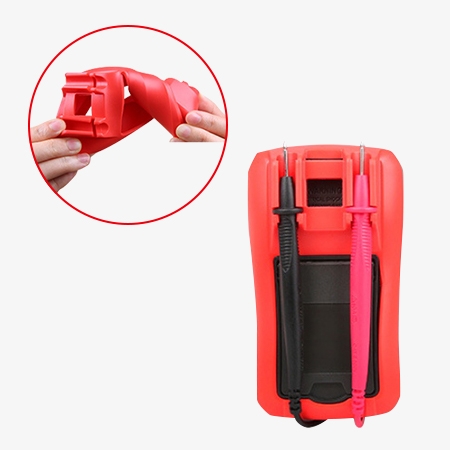

- 2.2mm protective cover 2 meters drop protection.
- Protective cover with pen hanging slot.
- Protective cover fully wrapped with soft rubber, comfortable to hold.

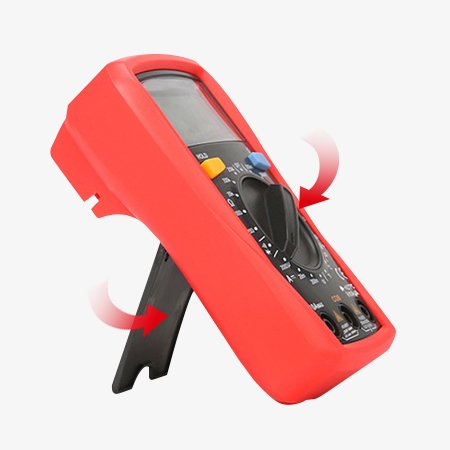

The automatic range digital multimeter adopts a convex knob and an extended bracket.
- Shifting is smoother and reading is more convenient.
- Load ergonomics makes operation more convenient.
- The bracket is longer, thicker and more durable.
- Easy to read data.

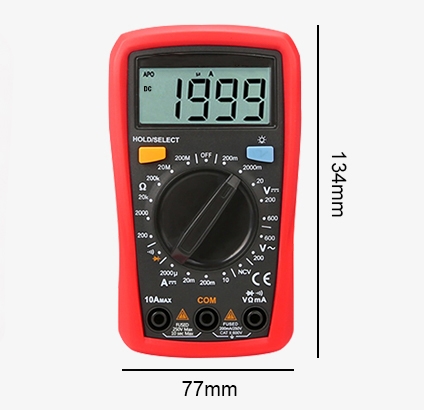

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
| Model | SISCO-DM-33A+ |
| DC Voltage | 600V |
| AC Voltage | 600V |
| DC Current | 10A |
| AC Current | 10A |
| Resistor | 200MΩ |
| Capacitor | 2mF |
| Maximum Display | 1999 |
| Test method | Automatic ranging |
| Drop test | 2m |
| Buzzer device | Buzzer |
| Safety level | CAT Ⅱ 600V |
| Auto shutdown | √ |
| Auto backlight off | √ |
| Diode test | √ |
| Wall mount slot | √ |

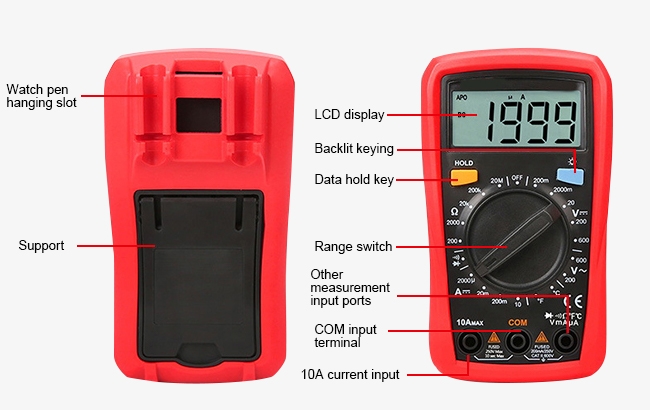

Structure
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: What are the advantages of a digital multimeter's auto-ranging?
- Convenience: Users do not need to manually select the measurement range, which saves time and reduces the complexity of taking measurements.
- Accuracy: By automatically selecting the most appropriate range, the multimeter ensures that measurements are both accurate and within the optimal resolution.
- Safety: Reduces the risk of selecting an incorrect range, which could potentially damage the multimeter or lead to inaccurate readings.
- Ease of Use: Particularly beneficial for beginners or users who may not be familiar with the expected range of the measurement, making the multimeter more user-friendly.
- Resistance Measurement: When checking the resistance of a resistor, the auto-ranging feature will automatically adjust to the proper range to give you an accurate resistance value, whether it's in ohms, kilohms, or megohms.
