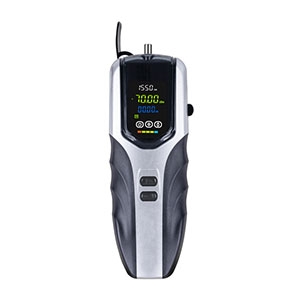

Optical Power Meters

An optical power meter is a device used to measure the power of an optical signal, typically within a fiber optic communication system. It is an essential tool for anyone working with fiber optics, as it helps ensure that the optical signal is within the correct power range for proper system operation.

Features of Optical Power Meter

Optical power meters are precision instruments designed to measure the power of optical signals in fiber optic communication systems. Key features include:

1. High-Precision Measurement: Optical power meters provide highly accurate optical power measurements, typically displayed in decibels-milliwatts (dBm) or milliwatts (mW), making them suitable for various fiber optic applications.
2. Wide Wavelength Range: Most optical power meters support multiple wavelengths, typically covering common wavelengths like 850nm, 1310nm, and 1550nm, to accommodate different types of fibers and application scenarios.
3. Multi-function Interfaces: They support a variety of fiber connector interfaces (such as FC, SC, ST), ensuring compatibility and wide applicability.
4. Data Storage and Export: Some advanced optical power meters feature data storage capabilities, allowing users to record measurement data, which can later be exported via USB or other interfaces for detailed analysis.
5. Portability and Durability: Designed to be lightweight and portable, optical power meters usually have rugged housings to withstand various field measurement conditions.

Optical Power Meter Working Principle

OPM work by detecting the amount of light power transmitted through an optical fiber. The device typically consists of a photodetector, which converts the optical signal into an electrical signal. This electrical signal is then processed by the meter’s internal circuitry to calculate the optical power, usually expressed in decibels relative to a milliwatt (dBm).

The process begins when the fiber optic cable is connected to the optical power meter, allowing light to enter the photodetector. The photodetector, which is sensitive to specific wavelengths, generates a current proportional to the intensity of the incoming light. This current is then amplified and converted into a power reading, which is displayed on the meter’s screen.

Optical Power Meter Applications

Optical Power Meters are widely used in the field of fiber optic communication and network maintenance, with main applications including:

Fiber Network Installation and Maintenance: During the installation and maintenance of fiber optic networks, optical power meters are used to test optical signal power levels, ensuring that signal quality meets standard requirements.

Fiber Link Troubleshooting: By measuring the optical power levels at different points in the link, engineers can locate faults in the fiber link, such as excessive attenuation or fiber breaks.

Optical Equipment Testing and Calibration: Used to test and calibrate the output power of optical sources, optical amplifiers, and other optical devices, ensuring that the equipment operates at the specified power levels.

Laboratory Research: In optical laboratories, optical power meters are used for precise measurement and analysis of optical signals, supporting various optical research and development activities.

Overall, optical power meters are crucial for maintaining the quality and reliability of fiber optic communication systems, ensuring that they operate within their intended parameters.
