SISCO NCV digital multimeter can quickly and accurately distinguish between neutral and live wires and has a high degree of versatility. The portable digital multimeter has the functions of traditional multimeters to measure AC and DC current and voltage, resistance, diodes, transistors, capacitance, frequency, duty cycle, etc. It has complete functions and stable performance.
LCD automatic backlight function
- Equipped with a flashlight and screen automatic backlight, it is convenient for users to work in dark environments.
- The professional NCV digital multimeter with ultra-large screen for easy reading.
Portable digital multimeter with sturdy shell, durable and drop-proof
- The outer red protective shell is made of high-quality rubber, shockproof and dustproof.
- Free your hands for easy operation and reading.

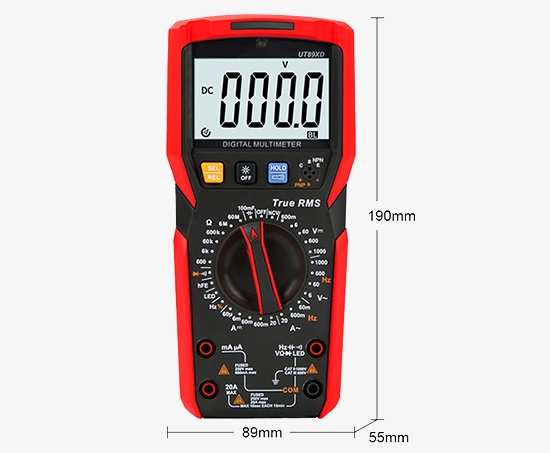

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
Β
| Model | SISCO-DM-89XD | |
| Basic Functions | Range | Basic Accuracy |
| DC Voltage | 600mV/6V/60V/600V/1000V | Β±(0.5%+2) |
| AC Voltage | 600mV/6V/60V/600V/1000V | Β±(0.8%+5) |
| DC Current | 600γ/6γ/60γ/600γ/20A | Β±(0.8%+8) |
| AC Current | 60γ/600γ/20A | Β±(1%+12) |
| Resistance | 600Ξ©/6γ/60γ/600γ/6γ/60γ | Β±(0.8%+8) |
| Frequency | 10Hz~10MHz | Β±(0.1%+4) |
| Resistor | 6γ/60γ/600γ/6γ/60γ/600γ/6mF/60mF/100mF | Β±(0.1%+4) |
| Duty Cycle | 5%~95% | |
| Display Digit | 6000 | |
| Frequency Response | 45~1kHz | |
| Range Selection | Manual | |
| Safety Level | CATΒ β ’ 600V | |
| Drop Test | 1m | |
| Diode | β | |
| Triode | β | |
| True RMS | β | |
| Continuity Test | β | |
| Professional-Grade Non-Contact AC Voltage Sensing (NCV) | β | |
| Sound and Light Alarm | β | |
| LED Test | β | |
| Data Retention | β | |
| Maximum/Minimum Value | β | |
| Relative Value Measurement | β | |
| Backlight Display | β | |
| Low Voltage Prompt | β | |

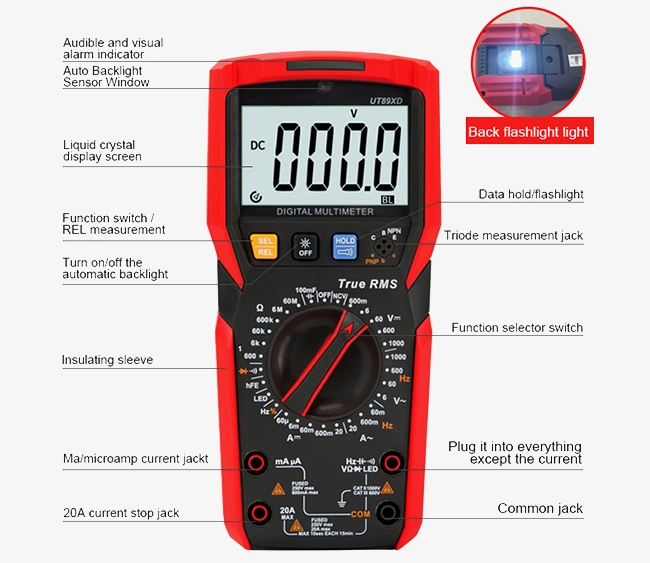

Structure
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: Can I use an NCV digital multimeter to safely detect live wires?
Yes, an NCV (Non-Contact Voltage) digital multimeter is designed to safely detect the presence of AC voltage in wires and electrical devices without requiring direct contact. By simply holding the multimeter near the wire or device, the NCV function will indicate the presence of voltage through visual or audible signals, enhancing safety and convenience during electrical troubleshooting.
