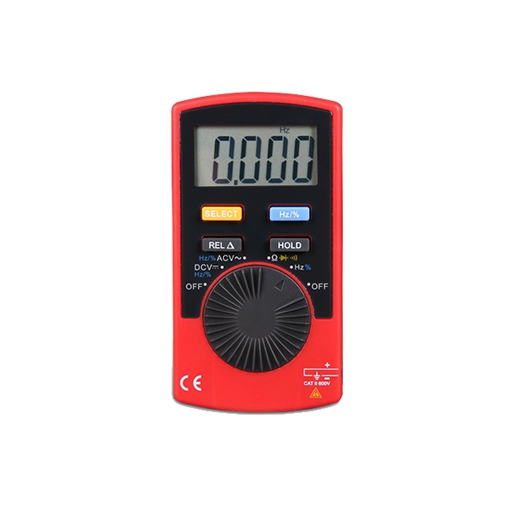

SISCO portable digital multimeter accurately measures AC/DC Voltage, AC/DC current, and resistance. The pocket-size digital multimeter has the advantages of complete functions, stable performance, high accuracy, low power consumption, novel structure, safety and reliability and durable.

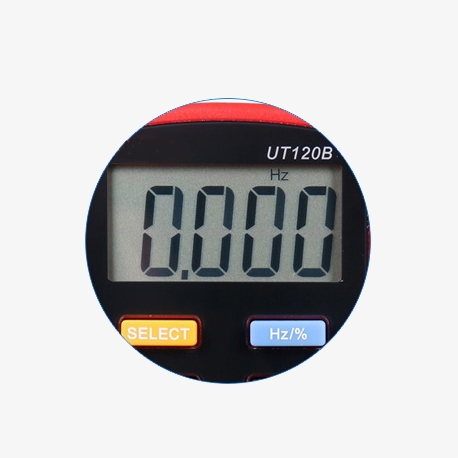

High-definition LCD display
- The pocket multimeter with a 3999-character display, and clear reading.
- Suitable for various complex and dark environments.
- The digital multimeter with measurement data and function symbols are displayed in high definition.

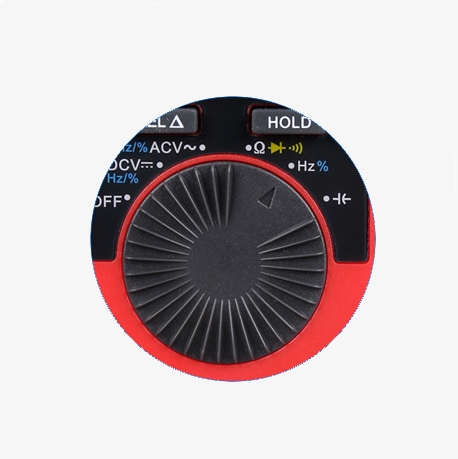

Portable digital multimeter with fan-shaped rotary button design
- Simple fan-shaped design, novel structure.
- The gear can be shifted in a snap, with moderate grip and precise shifting.

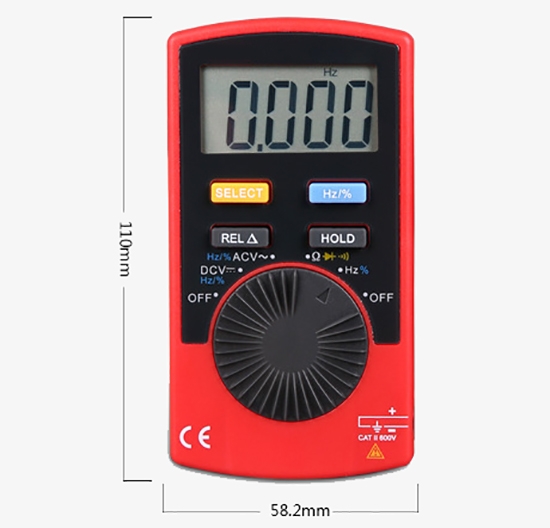

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
Β
| Model | SISCO-DM-UT120B | |
| Basic functions | Range | Basic accuracy |
| DC Voltage | 4V/40V/400V/600V | Β±(0.8%+3) |
| AC Voltage | 4V/40V/400V/600V | Β±(1.2%+3) |
| DC Current | 400γ/4γ/40γ/400γ | Β±(1%+3) |
| AC Current | 400γ/4γ/40γ/400γ | Β±(1.5%+5) |
| Resistance | 400Ξ©/4γ/40γ/4γ/40γ | Β±(1%+2) |
| Frequency | 99.99Hz~99.99kHz | Β±(0.5%+3) |
| Resistor | 4γ/40γ/400γ/4γ/40γ/100γ | Β±(4%+3) |
| Power | 2500W | Β±(2%+5) |
| Special Function | Basic Accuracy | |
| Auto Shutdown | About 30min | β |
| Duty Cycle | 0.1%~99.9% | β |
| input Resistance | β₯10MΞ© | β |
| Maximum Display | 3999 | |
| Low Voltage Indication | β€2.4V | |
| Diode Test | β | |
| On/off Buzzer | β | |
| Digital Hold | β | |
| Relative Measurement | β | |
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: Can I use a pocket digital multimeter for professional work?
Yes, a pocket digital multimeter can be used for professional work, particularly for quick diagnostics, basic troubleshooting, and field service tasks due to its compact size and portability. These multimeters offer essential functions such as measuring voltage, current, resistance, and continuity, making them suitable for many everyday electrical tasks. However, for more complex or high-precision measurements, a full-sized multimeter with advanced features, higher accuracy, and greater measurement ranges might be more appropriate. Pocket multimeters may lack some specialized functions and robustness found in larger, more sophisticated models, so it's important to consider the specific requirements of your work before relying solely on a pocket-sized tool.
