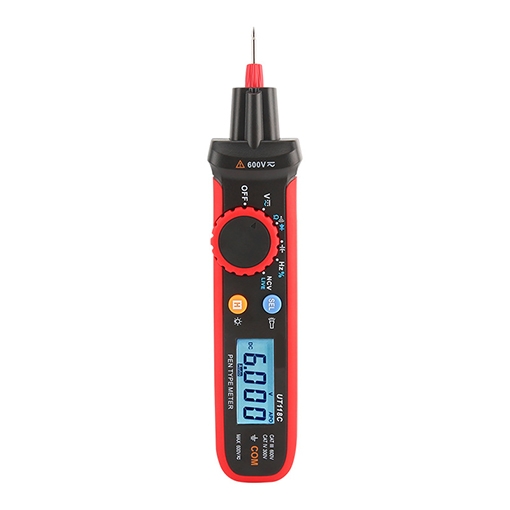

Good quality pen type digital multimeter has functions such as data hold, undervoltage prompt, backlight, flashlight, automatic shutdown and conduction, resistance, and diode automatic identification. The handheld digital multimeter is widely used in electronic and electrical industries, electronic equipment maintenance, etc.

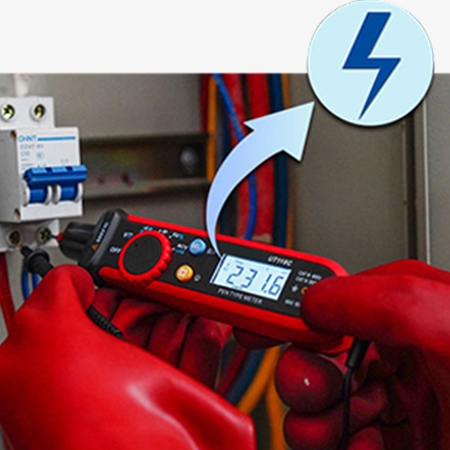

Digital multimeter with high voltage alarm
- High voltage alarm lightning symbol prompt.
- High voltage alarm red backlight prompt.

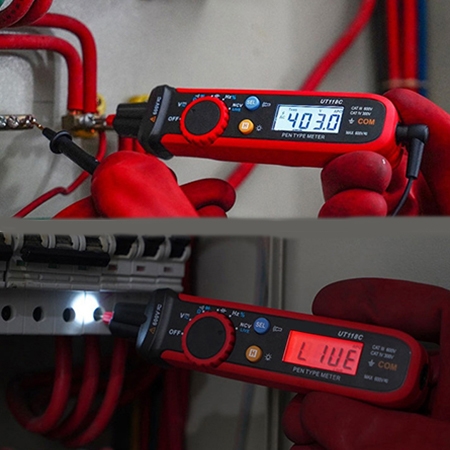

Pen multimeter with design of LCD backlight, body flashlight
- Easy to measure safely in low light and dark environments.
- The screen is large and easy to read.

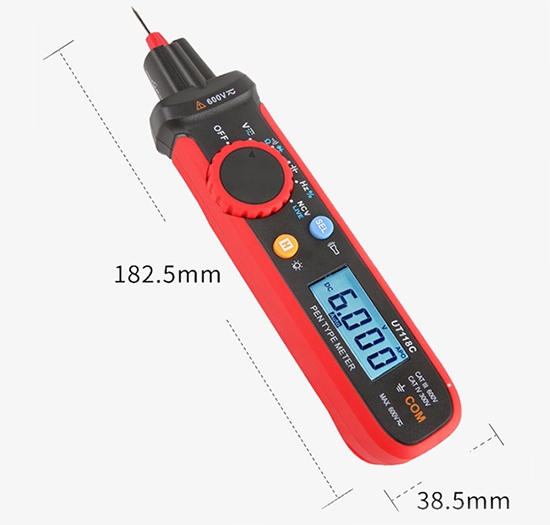

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
| Model | SISCO-DM-118C | |
| Basic functions | Range | Basic accuracy |
| DC Voltage | 6V/60V/600V | ±(1%+3) |
| AC Voltage | 6V/60V/600V | ±(1%+4) |
| Resistance | 600Ω/6㏀/60㏀/600㏀ 6㏁ 60㏁ |
±(1%+3) ±(1.5%+5) ±(2.5%+5) |
| Frequency | 99.99Hz/999.9Hz/9.99kHz/99.99kHz/999.9kHz | ±(0.1%+5) |
| Resistor | 600㎋/6㎌/60㎌/600㎌ 6MF 60MF |
±(3.5%+8) ±(5%+9) ±(10%+9) |
| Duty Cycle | 0.1%~99.9% | |
| Maximum Display | 6000 | |
| Certification | CE, cETLus, RoHS | |
| Size | 182.5mm*38mm*38.5mm | |
| Buzzer device | Buzzer | |
| Safety level | CAT Ⅲ 600V/CAT Ⅳ 300V | |
| Continuity Test/Diode Test | √ | |
| NCV/LIVE | √ | |
| Auto Ranging | √ | |
| High Voltage Alarm | √ | |
| Low Battery Warning/Auto Shutdown | √ | |
| LCD Backlight/Flashlight | √ | |

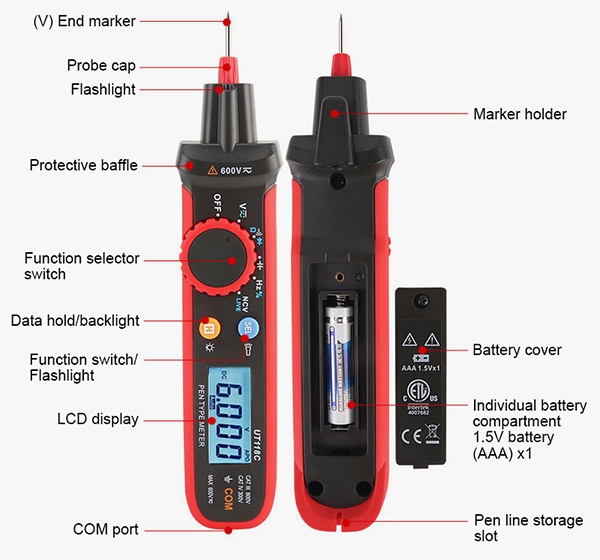

Structure
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: Safety Precautions When Using a Pen Type Digital Multimeter
Using a pen-type digital multimeter safely involves understanding the device and adhering to specific guidelines to prevent accidents and ensure accurate measurements. Here are key safety precautions:
- Inspect the Multimeter: Check for any damage on the multimeter and probes before use.
- Correct Mode and Range: Always set the multimeter to the correct measurement mode (voltage, current, resistance) before use.
- Power Off: If possible, turn off power to the circuit before connecting or disconnecting the probes.
- Use One Hand: When measuring high voltage, use one hand to reduce the risk of electric shock.
- Dry Environment: Ensure the environment is dry to prevent short circuits or inaccurate readings.
