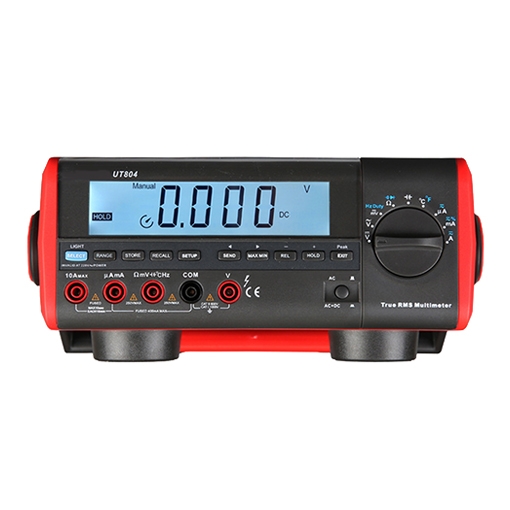

Reliable digital bench multimeter with AC/DC voltage up to 1000V, AC/DC current up to 10A. The benchtop multimeter is suitable for measurement in industries such as electronics, communications, manufacturing, petroleum, national defense, electricity, and chemical industry.

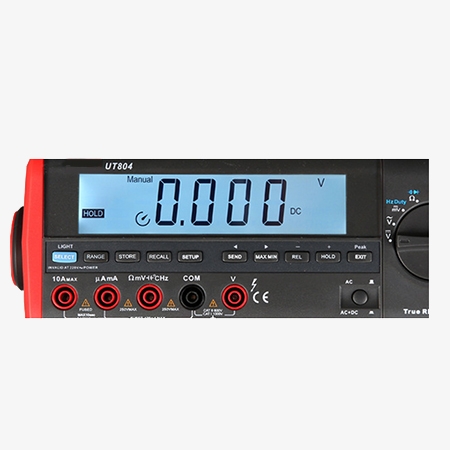

High-definition LCD display
- The digital bench multimeter with a 39999-character display, and clear reading.
- Suitable for various complex and dark environments.
- The benchtop multimeter with high brightness, few failures, long viewing distance.

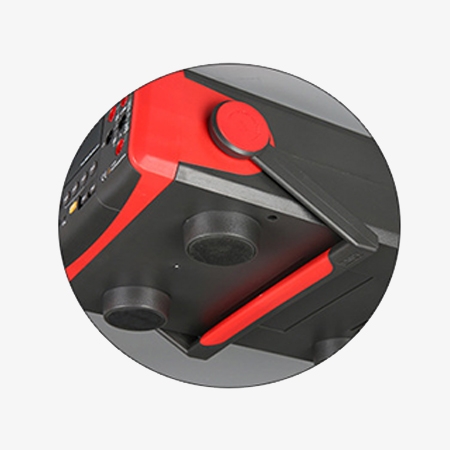

Bench multimeter with vertical stand design
- Vertical stand can be fixed, support the placement of the machine body.
- Free your hands for easy operation and reading.

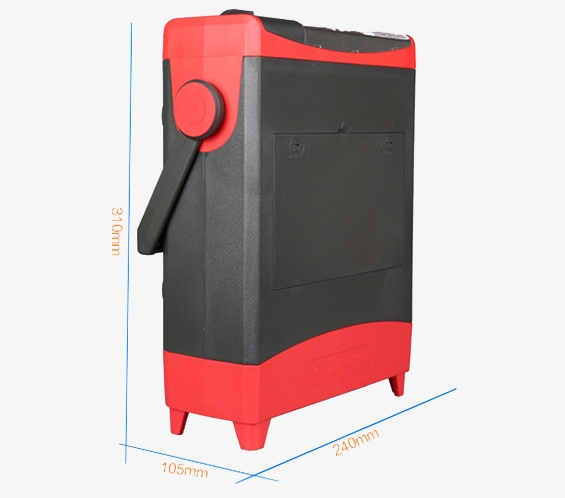

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
Β
| Model | SISCO-DM-UT804 | |
| Basic functions | Range | Basic accuracy |
| DC Voltage | 400mV/4V/40V/400V/1000V | Β±(0.025%+5) |
| AC Voltage | 400mV/4V/40V/400V/1000V | Β±(0.4%+30) |
| DC Current | 400γ/4000γ/40γ/400γ/10A | Β±(0.1%+15) |
| AC Current | 400γ/4000γ/40γ/400γ/10A | Β±(0.7%+15) |
| Resistance | 400Ξ©/4γ/40γ/400γ/4γ/40γ | Β±(0.3%+40) |
| Frequency | 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz | Β±(0.01%+8) |
| Resistor | 40γ/400γ/4γ/40γ/400γ/4mF/40mF | Β±(1%+20) |
| Special Function | Basic accuracy | |
| Frequency Response | 100kHz | β |
| Duty Cycle | 0~100% | β |
| Maximum Display | 39999 | |
| Data Storage | 9999 | |
| Analog Bar | 81 | |
| 4-20mA | Β±(1%+50) | |
| Low Voltage Display | β | |
| Auto Shutdown | β | |
| Diode Test | β | |
| On/off Buzzer | β | |
| Digital Hold | β | |
| Relative Measurement | β | |
| Auto-Ranging | β | |
| Trur RMS | β | |
| Maximum/Minimum Value | β | |
| Transistor Test | β | |
| Auto Shutdown | β | |
| Peak Hold | β | |
| Data readback | β | |
| RS-232 data transmission | β | |
| USB data transmission | β | |
| LCD dual backlight | β | |
| Function setting | β | |
| Input protection | β | |
| Automatic/manual alarm | β | |
| Voltage and current: AC+DC | β | |

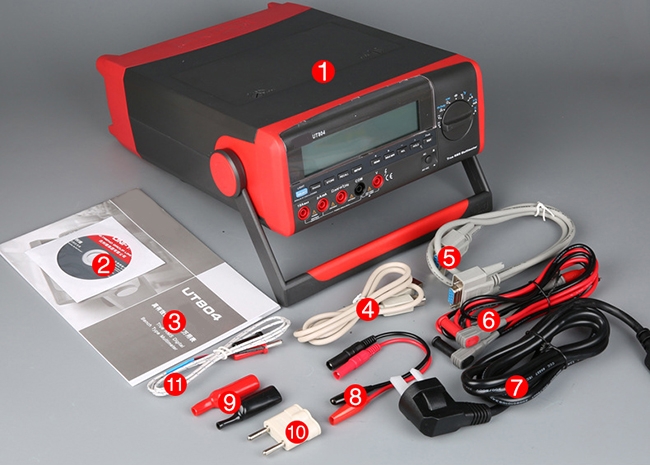

Accessories
- Host
- Software CD
- Instruction manual
- USB data cable
- RS-232 data cable
- Test lead
- AC220V power cord
- Test short pen
- Alligator clip with protective cover
- Adapter socket
- Point temperature probe
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: How does a digital bench multimeter differ from a handheld multimeter?
Digital bench multimeters provide higher accuracy, advanced features, and extensive data logging capabilities, making them ideal for precise measurements in laboratory and industrial settings. They are designed for stationary use with AC power and often include interfaces for computer connectivity. In contrast, handheld multimeters are portable, battery-powered, and rugged, suitable for quick diagnostics and fieldwork. However, they generally offer fewer features and lower accuracy compared to bench models, making them less ideal for highly detailed or critical measurements.
