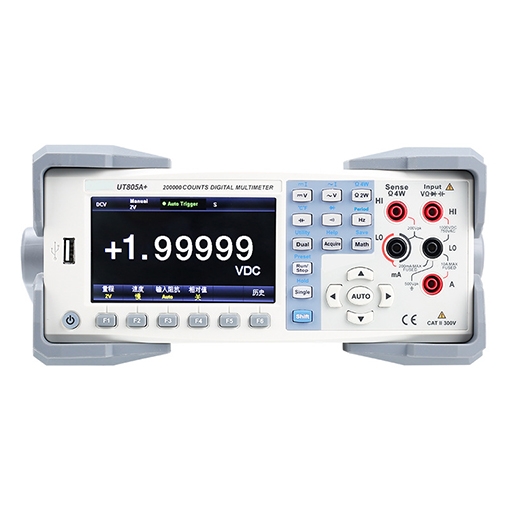

SISCO digital benchtop multimeter with AC/DC voltage of 1000V, AC/DC current of 10A. When the benchtop multimeter measures the voltage or current of an AC signal, it can also measure its frequency, the voltage or current is displayed, and the frequency value is also displayed.

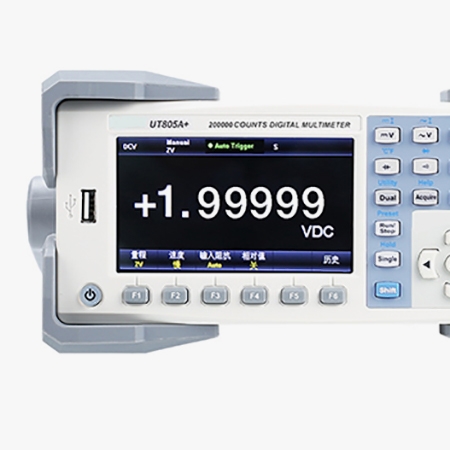

High-definition LCD display
- The digital bench multimeter with a 39999-character display, and clear reading.
- Suitable for various complex and dark environments.
- The benchtop multimeter with high brightness, few failures, long viewing distance.
Bench multimeter with vertical stand design
- Vertical stand can be fixed, support the placement of the machine body.
- Free your hands for easy operation and reading.

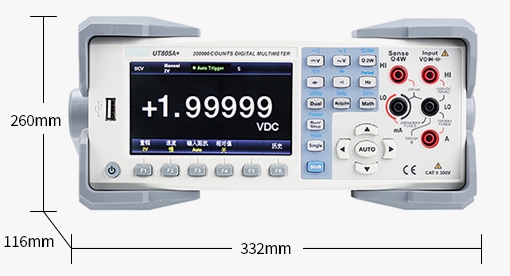

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
Β
| Model | SISCO-DM-UT805+ | |
| Basic Functions | Range | Basic Accuracy |
| DC Voltage | 200mV/2V/20V/200V/1000V | Β±(0.008%+0.003%) |
| AC Voltage | 200mV/2V/20V/200V/750V | Β±(0.19%+0.005%) |
| DC Current | 200γ/2γ/20γ/200γ/2A/10A | Β±(0.05%+0.005%) |
| AC Current | 2γ/20γ/200γ/2A/10A | Β±(0.3%+0.1%) |
| Resistance | 200Ξ©/2γ/20γ/200γ/2γ/10γ/100γ | Β±(0.012%+0.003%) |
| Capacitance | 2γ/20γ/200γ/2γ/20γ/200γ/2mF | Β±(1%+0.5%) |
| Frequency | 20Hz~1MHz | Β±(0.01%+0.003%) |
| Special Functions | ||
| Maximum Display | 199999 | |
| Sampling Rate | 5000 rdgs/s | |
| Storage | 10k data records; 1Gb Nand Flash total capacity | |
| Frequency Response | 100kHz | |
| Mathematical Operations | Pass/Fail, relative value, Min/Max/average, standard deviation, dBm, dB, Hold, histogram, trend chart, bar chart | |
| Voltage and Current | AC+DC | |
| Input Impedance | β₯10GΞ© or 10MΞ© | |

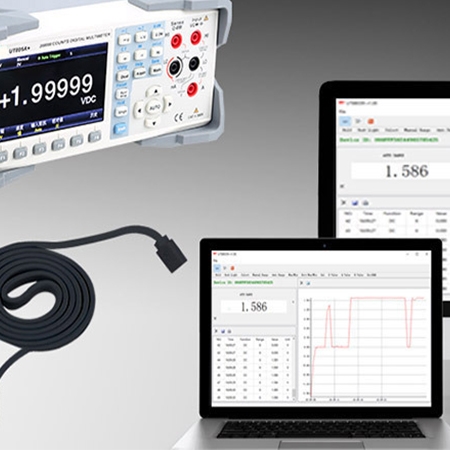

| Standard Interface | USB Host, USB Device, LAN, GPIB (optional) | |
| Power Supply | AC100V~120V: 45Hz~440Hz; AC200V~240V: 45Hz~66Hz | |
| Auto range | β | |
| True RMS | β | |
| Diode | β | |
| On/off Buzzer | β | |
| Digital Hold | β | |

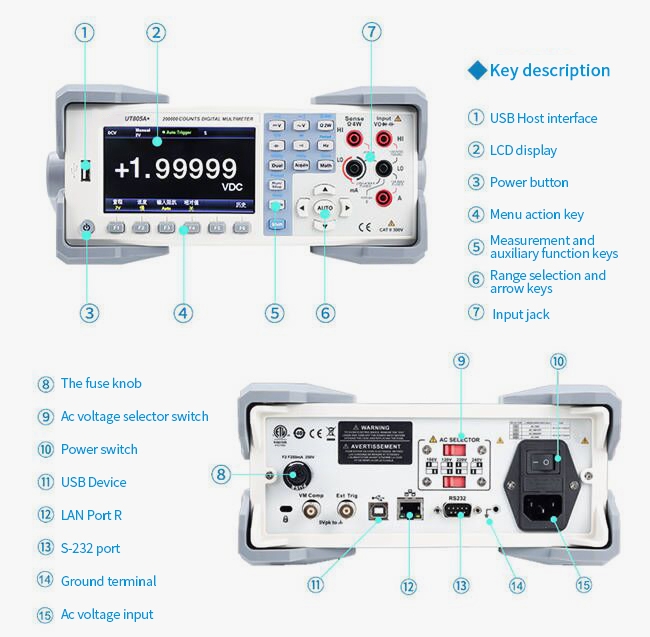

Structure
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: What is a benchtop digital multimeter?
A benchtop digital multimeter is a high-precision instrument designed for accurate and reliable measurements of electrical parameters such as voltage, current, resistance, and more. Unlike portable handheld multimeters, benchtop models are intended for stationary use in laboratories, workshops, and industrial environments. They offer advanced features, high accuracy, extensive data logging capabilities, and often include connectivity options for computer integration, making them ideal for detailed analysis and complex measurement tasks.
