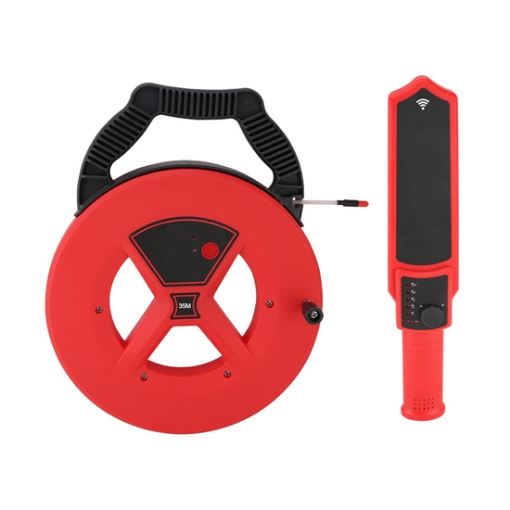

The plastic pipe locator uses an 1800mAh lithium battery, which can be used for about 4-30 hours after fully charged (affected by the volume of the sound). The receiver uses a rotary button to adjust the sensitivity, making detection easier.
Complete functions
- Electromagnetic induction principle, the transmitter probe emits electromagnetic waves, and the receiver receives electromagnetic waves. It has the advantages of not interfering with the fluid, long-distance detection, and adaptability to various flow ranges.
- Dual alarm, with signal lights and buzzer alarm prompts, no missed reports.
- Strong signal penetration, the maximum detection depth can penetrate 50cm thick PVC, plastic, steel, and other pipe blockage points, reducing the demolition area.
Reliable quality
- 1800mAh lithium battery, and one-to-two data cables, the transmitter and receiver can be charged at the same time, solving the charging problem.
- The signal line is durable, and the probe line is made of polymer material, with a smooth surface, can be bent, and is not easy to break.
- IP67 waterproof probe can accurately detect even in harsh environments with water and comes with 4 probes for replacement.
Applications
This pipe detector is suitable for a variety of scenarios. It can detect metal pipes such as iron pipes, cement pipes, steel pipes, copper tubes, and non-metal pipes such as PVC pipes and plastic pipes. The pipe detector machine has good applications for blockage problems in scenes buried in cement walls, ground, and land. In short, the pipe blockage detector is an indispensable device in pipeline maintenance. It not only improves work efficiency and reduces maintenance costs, but also provides important support for ensuring the stable operation of industrial production and urban water supply systems.
Cement Pipe
Copper Tube
Wall Pipe
PVC Pipe
Â
| Model | SISCO-UT-661D |
| Transmitter | √ |
| Signal Wire | 35m |
| Receiver | √ |
| Maximum Detection Depth | 50cm |
| Transmitter Current | Shutdown current<2uA, operating current: 230~310mA |
| Receiver Current | Shutdown current<2uA, standby current≤40mA, maximum operating current: 150~450mA (1cm distance) |
| Charging Current | 450~550mA |
| Sound (1cm Distance) | >93dB |
| Sound (0.5m Distance) | >75dB |
| Battery Duration | 10 hours |
| Operating Temperature And Humidity | -20℃~60℃ 10~80%RH |
| Measurable Pipe Materials | Plastic pipes, metal pipes |
| Buzzer | √ |
| Flash | √ |
| Low Battery Indication | √ |
| IP Rating | P67 (probe) |
| Transmitter Battery | Built-in lithium battery (3.7v 1800mAh) |
| Receiver Battery | Built-in lithium battery (3.7V 1800mAh) |
| Product Color | Red + gray |
| Standard Accessories | Charging cable, probe kit |
| Standard Individual Packing | Gift box, user manual |
| Standard Quantity Per Carton | 5pcs |
| Standard Carton Measurement (mm) | 405x90x350 |

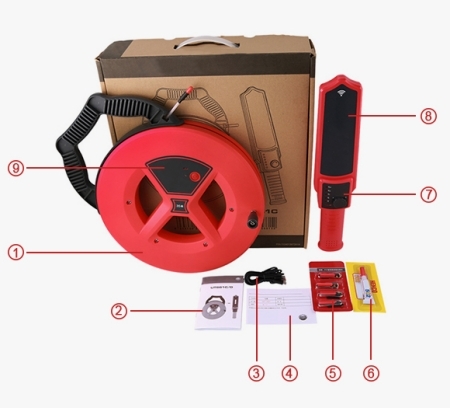

Packaging Diagram
- Transmitter Host
- Instruction Manual
- Charging Cable (USB-AM to dual micro USB heads)
- Warranty Card
- Transmitter Probe accessory set
- Instant Super Glue
- Receiver Hos
- Lithium Battery (1 built-in receiver)
- Lithium Battery (1 built-in transmitter)
SISCO Wall Pipe Blockage Detector User ManualQ1: How does a pipe detector work?
A1: Pipe blockage detectors generally use the principle of radio transmission and reception. It sends a specific signal. When encountering a blockage, the propagation of the signal will change, and the specific location of the blockage is determined by the signal change captured by the receiver.
Q2: What factors can affect pipe detectors?
A2: During use, it is necessary to consider many factors such as pipeline material, structural characteristics, external environment, fluid state in the pipeline, as well as equipment performance, and operator skill level. Through reasonable use and scientific operation, interference can be minimized and the accuracy and efficiency of detection can be improved.
Q3: How do I store a pipe detector when not in use?
A3: When the pipe blockage detector is not used for a long time, it should be stored in a dry, cool, dust-free environment, preferably in an air-conditioned room. The storage location should be away from direct sunlight and high-temperature sources to prevent the device from overheating and damage. At the same time, the device should be powered on and tested regularly to keep it in good working condition.
Tips: Analysis of the causes of wrong results of plastic water pipe detectors.
In actual application, due to the influence of various factors, the pipe detector may give wrong detection results. The following are several possible reasons for the wrong results:
- Failures in the PVC pipe detector underground itself, such as sensor damage, circuit failure, or connection problems, may cause distortion of measurement data.
- Changes in the density, viscosity, and other properties of the fluid inside the pipeline, or physical properties of the pipeline such as corrosion and wear, may also affect the accuracy of the water pipe detector.
- Insufficient technical level and experience of the operator, or improper operation, such as improper selection of sensor installation location and inaccurate calibration, may lead to deviations in measurement results.
- The type, density, and uneven distribution of blockages in the pipeline will also affect the accuracy of the measurement.
- If the plumbing pipe locator is not calibrated regularly or the calibration is inaccurate, it will also lead to deviations in measurement results.
