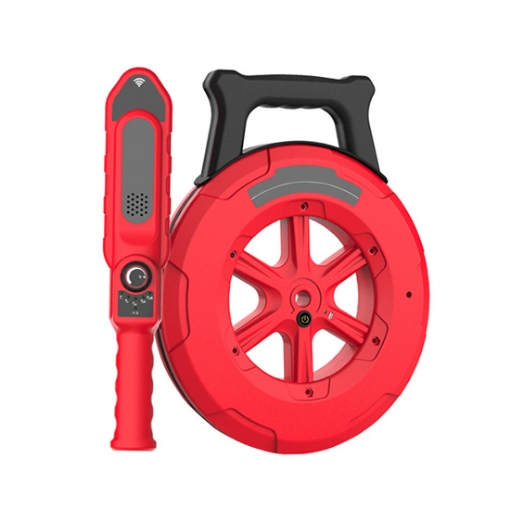

The plastic water pipe detector is equipped with a 30m tube lamp, which is suitable for a variety of application scenarios. The receiver speaker hole has clear sound and fast response and automatically adjusts the sound volume according to the actual measured distance.
Complete functions
- Electromagnetic induction principle, the transmitter probe emits electromagnetic waves, and the receiver receives electromagnetic waves. It has the advantages of not interfering with the fluid, long-distance detection, and adaptability to various flow ranges.
- The transmitter probe has a self-check function. After turning it on, the probe can automatically detect whether it is operating normally, improving work efficiency.

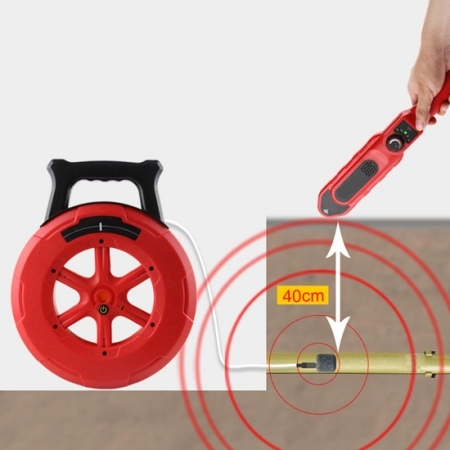

- Strong signal penetration, the maximum detection depth can penetrate the pipe blockage point under the 40cm thick cement wall/ floor, reducing the demolition area.
Reliable quality
- Large-capacity lithium battery, transmitter 2600mAh, receiver 1400mAh, working time can reach 10h/5h after a full charge, and a double-head charging cable is used.
- The signal line is durable, the probe line is made of polymer material, the surface is smooth, can be bent, and is not easy to break.
- IP67 waterproof probe can accurately detect even in harsh environments with water, and 6 probes are standard for replacement.
Applications
This pipe detector is suitable for a variety of scenarios. It can detect metal pipes such as iron pipes, cement pipes, steel pipes, copper tubes, and non-metal pipes such as PVC pipes and plastic pipes. The pipe detector machine has good applications for blockage problems in scenes buried in cement walls, ground, and land. In short, the pipe blockage detector is an indispensable device in pipeline maintenance. It not only improves work efficiency and reduces maintenance costs, but also provides important support for ensuring the stable operation of industrial production and urban water supply systems.
Cement Pipe
copper Tube
Wall Pipe
PVC Pipe
Â
| Model | SISCO-NF-5130 | |
| Emitter | Tube Lamp | 30M |
| Applications | PVC/ plastic steel/ copper cement/ iron tube | |
| Power Supply | 18650 Lithium battery 2600mAh | |
| Working Frequency | 300Hz | |
| Working Hour | 10H | |
| Working Temperature | 10~40°C | |
| Size (mm) | 300x360x45 | |
| Weight | 1500g | |
| Receiver | Sensitivity Adjustment | Yes |
| Distance Range | Non-pipe pipe: 0-40cm, metal pipe: 0-15cm | |
| Power Supply | Lithium1400mAh | |
| Working Frequency | 300Hz | |
| Working Hour | 5H | |
| Working Temperature | 10~40°C | |
| Size (mm) | 65x360x40 | |
| Storage Temperature | -10°C~50°C | |
| Voice Indication | Yes | |

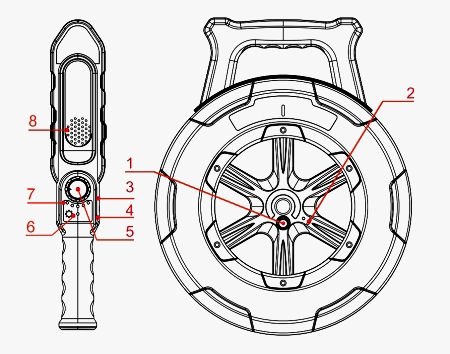

Structure Diagram
- OFF/ON
- Charging Port
- Charging Port
- Headphone Jack
- Sensitivity Adjustment
- Power Light
- Signal Light *5 Charging Port
- Horn Hole
SISCO PVC Underground Pipe Detector User ManualQ1: How does a pipe detector work?
A1: Pipe blockage detectors generally use the principle of radio transmission and reception. It sends a specific signal. When encountering a blockage, the propagation of the signal will change, and the specific location of the blockage is determined by the signal change captured by the receiver.
Q2: What factors can affect pipe detectors?
A2: During use, it is necessary to consider many factors such as pipeline material, structural characteristics, external environment, fluid state in the pipeline, as well as equipment performance, and operator skill level. Through reasonable use and scientific operation, interference can be minimized and the accuracy and efficiency of detection can be improved.
Q3: How do I store a pipe detector when not in use?
A3: When the pipe blockage detector is not used for a long time, it should be stored in a dry, cool, dust-free environment, preferably in an air-conditioned room. The storage location should be away from direct sunlight and high-temperature sources to prevent the device from overheating and damage. At the same time, the device should be powered on and tested regularly to keep it in good working condition.
Tips: The usage of pipe blockage detector.
The basic steps for using the water pipe locators are as follows:
Step one, insert the signal transmission line and the transmitter into the pipeline to be tested until the signal line can no longer move forward.
Step two, connect the signal generator, turn on the power switch, and the indicator light will light up to indicate that the device has started.
Step three, turn on the signal receiver switch, and hold the signal receiver to detect along the pipeline. When the receiver is close to the blockage point, it will emit an obvious sound or light prompt, and the operator can determine the specific location of the blockage based on these signals.
