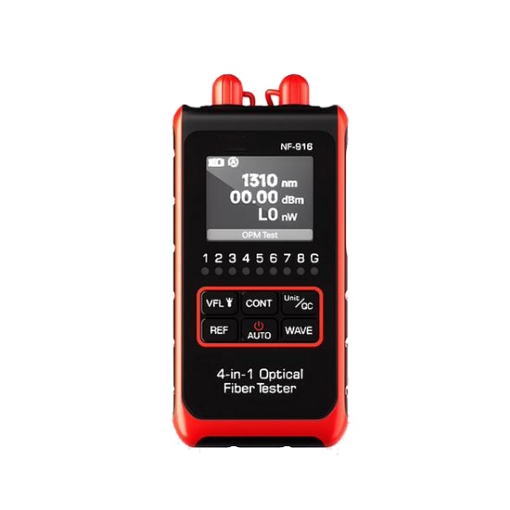

SISCO best compact and portable 4-in-1 multifunctional power meter is designed for convenience and ease of use. It includes an automatic shutdown feature, a low battery alert, and a built-in light, ensuring it meets diverse testing needs. Its user-friendly design makes it an essential tool for professionals on the go.

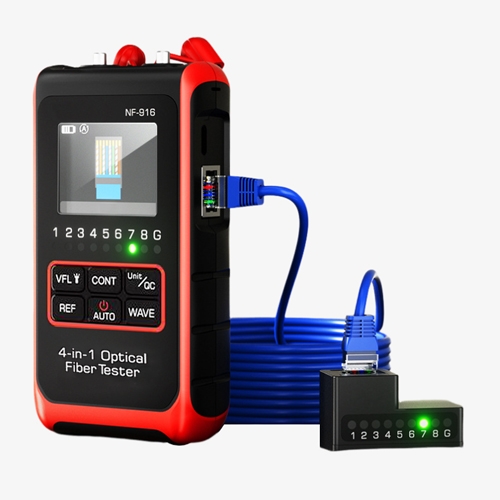

More Convenient RJ45 Network Tester with Split Design
- Split detachable design: uses automatic scanning to detect whether the network cable sequence is connected correctly.
- Instant testing of single-ended RJ45 connectors: Determines whether the RJ45 connector is properly crimped automatically. Even with just one end of the connector, testing is still possible.
- Wavelength Memory and Intelligent Standby Mode: automatically saves the wavelength setting before shutdown and restores it upon the next power-up. Additionally, it features an intelligent standby mode with an auto shutdown function, turning off automatically after 30 minutes of inactivity.
Advanced Visibility and Illumination Functions
- High-Definition Large Color Screen: upgraded high-definition digital display screen with rich colors, providing clear and easy-to-read data.

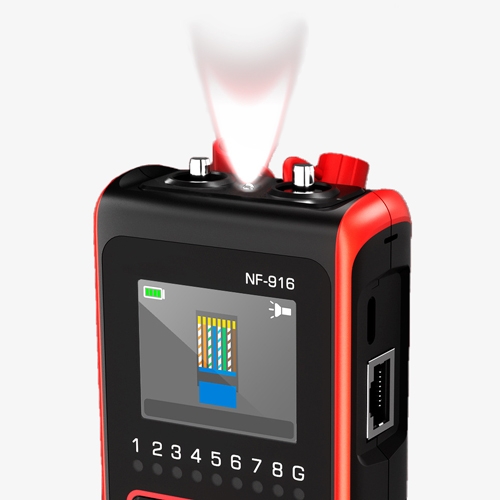

- High-Brightness LED Flashlight: includes a flashlight function, making it easy to work in dark or complex environments.
- Powerful Red Light Source Easily Penetrates Fiber Optics: equipped with an imported laser head for stronger penetration and longer service life.
Versatile Connectivity, Safe Charging, and Accurate Optical Testing

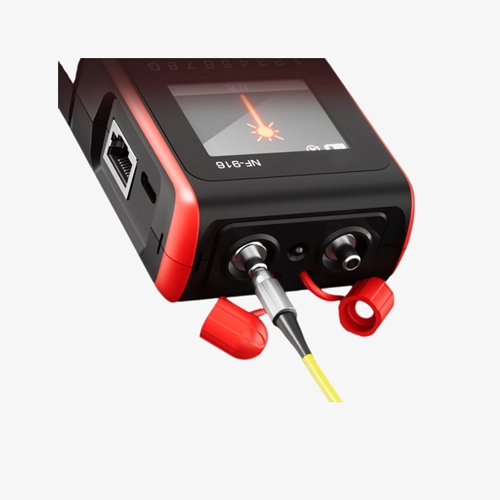

- 2.5mm Universal Interface: compatible with FC, SC, and ST fiber optic connectors, meeting various connector requirements. Users can easily replace adapter heads and ceramic ferrules.
- Mainstream Type-C Charging Interface: features a built-in lithium battery with intelligent protection against overcharging, overcurrent, overvoltage, and short circuits.
- Automatic Optical Power Frequency Recognition: supports testing at six wavelengths, with a measurement range of -60 to 8 dBm and an accuracy of ±0.3 dB.
Applications
Fiber optical power meter can be widely used in optical cable construction and maintenance, optical fiber communication, optical fiber sensing, CATV and other fields. It is mainly used for the measurement of continuous optical signal power, optical fiber line loss test, optical device insertion loss test, optical fiber breakpoint location, end-to-end optical fiber identification, etc.
Optical Fiber Communicate
Optical Fiber Sensing
CATV
Optical Cable Const.&Maint.
| Model | SISCO-PQA-NF916 |
| Display | Color display |
| Power Meter | Wavelength: 850 / 980 / 1310 / 1490 / 1550 / 1625nm |
| Unit: dBm / mW / uW / nW | |
| REF | |
| Frequncy: 270Hz / 1KHz / 2KHz | |
| Continuity Test (CONT) | √ |
| VFL | Steady on / slow flashing / fast flashing |
| QC | √ |
| AUTO Shutdown | √ |
| Lamp | √ |
| Low Battery Warning | √ |
| Power | 3.7 V lithium batery (not including) |
| Size | 128*61*32mm |

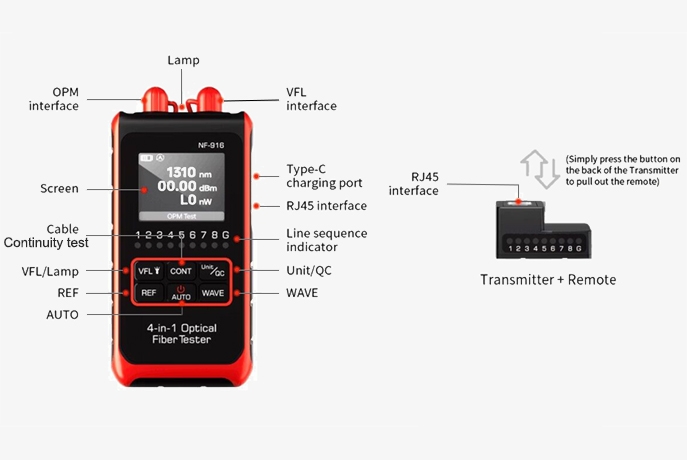

Details

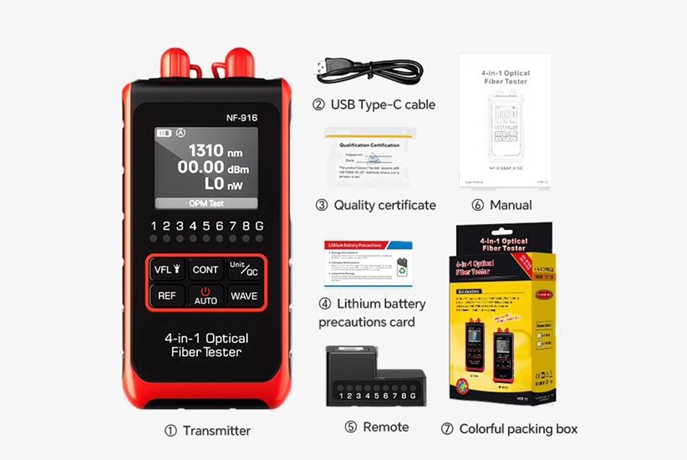

Packing List
- 1 x Power meter
- 1 x USB TYPE-C cable
- 1 x Quality certificate
- 1 x Lithium battery precautions card
- 1 x Remote
- 1 x User manual
- 1 x Packing box
Q1: What do EN61326-1:2013 and EN61326-2-2:2013 compliance standards mean?
A1: EN61326-1:2013 and EN61326-2-2:2013 are European standards that define the requirements for electromagnetic compatibility (EMC) for electrical equipment used in industrial and laboratory environments. Compliance with these standards ensures that a device, such as a fiber optic power meter, can operate without causing or being affected by electromagnetic interference in these settings. EN61326-1:2013 covers the general requirements for all equipment, while EN61326-2-2:2013 provides additional requirements specific to test and measurement equipment, ensuring reliable and accurate performance in environments with potential electromagnetic disturbances.
Q2: Why is wavelength selection important in a fiber optic power meter?
A2: Wavelength selection is crucial in a fiber opm because different optical signals are transmitted at specific wavelengths, depending on the type of fiber and the application. Accurate measurement of the optical signal's power requires the power meter to be tuned to the correct wavelength, as signal strength can vary significantly across different wavelengths. Incorrect wavelength selection can lead to inaccurate measurements, potentially compromising the performance of the network. Therefore, having a power meter that supports a range of wavelengths ensures versatility and precision in various testing and troubleshooting scenarios within fiber optic systems.
Q3: What wavelengths do fiber optic power meter typically measure?
A3: Fiber optic power meter typically measure a range of wavelengths commonly used in fiber optic communications. The most standard wavelengths include 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, and 1650nm. These wavelengths cover the primary bands used for data transmission in various types of optical fibers, including multimode and single-mode fibers, ensuring that the power meter can accurately measure the signal strength across different fiber optic networks.
Tips: How does a fiber optic power meter work?
A fiber optic power meter works by measuring the optical power of light transmitted through a fiber optic cable. The device uses a photodetector to capture the light signal, which then converts the optical energy into an electrical signal. This electrical signal is proportional to the power of the light entering the meter. The power meter processes this electrical signal and displays the optical power level, typically in units such as decibels-milliwatts (dBm), decibels (dB), or milliwatts (mW). The user selects the appropriate wavelength on the meter to match the wavelength of the light being measured, ensuring accurate readings. This process allows technicians to verify signal strength, troubleshoot issues, and ensure the fiber optic network is functioning correctly.
