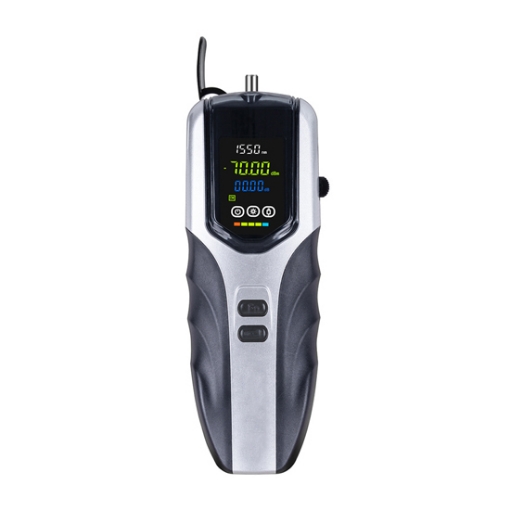

    USB Handheld Optical Power Meter

    Controlled by a microprocessor, the USB handheld optical power meter offers a power measurement range of -70 to 3 dBm and a wavelength range of 800 to 1700 nm. It is fully functional with an ergonomic design and features advanced cold molding technology, ensuring a durable and aesthetically pleasing appearance. Additionally, the built-in detector provides excellent protection.
    SKU: SISCO-PQA-G770
    $54.59
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview

    The SISCO USB portable optical power meter integrates multiple functions into one device, including one-button start, LCD color screen, USB charging, LED illumination, wavelength memory, frequency recognition, automatic calibration, and more. With all the features you need, it is the ideal optical power meter for your measurements.

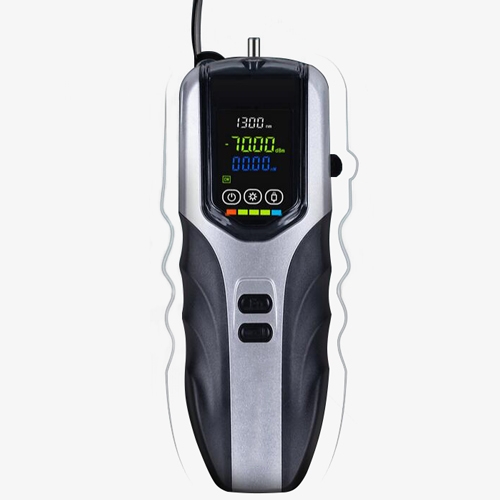

    USB handheld optical power meter

    Precision OPM: DIY Calibration & Smart Protection

    • High-Precision Optical Power Meter: Measurement error is less than +/-0.2dB, supporting manual calibration.
    • DIY Self-Calibration: Allows adjustment of testing parameters based on actual testing needs.
    • Smart Multi-Protection Design Tested: Portable opm providing multiple protections, including overcharge protection, overpower protection, overcurrent protection, overvoltage protection, short circuit protection, and temperature protection.

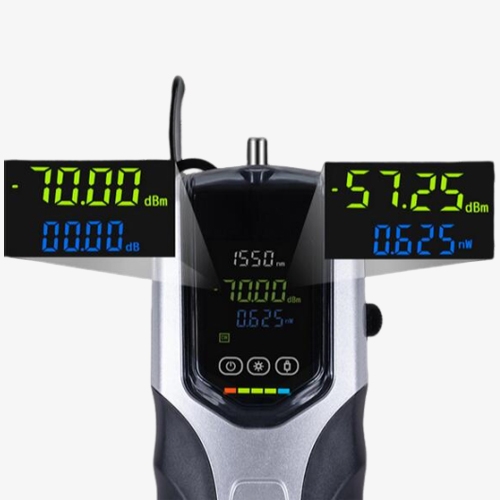

    USB handheld optical power meter details

    LCD Display with Multi-Wavelength & Unit Options

    • LCD Color Display: Vibrant colors, high definition, and a sleek design, visible even in darkness.
    • 7 Test Wavelengths: Press the "Fn" key to switch between 7 different test wavelengths.
    • Two Display Units: In the powered-on state, short press to cycle through and select the display units (nW or dB). Test data will be shown in the corresponding unit.

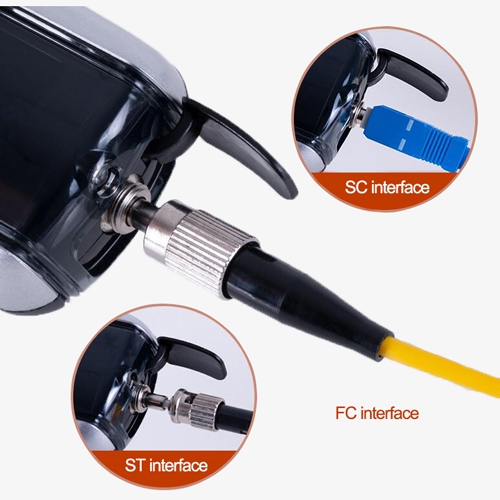

    USB handheld optical power meter interface details

    Universal Interface, Long Battery, & Wavelength Memory

    • 2.5mm Universal Interface: compatible with FC, SC, and ST fiber optic connectors, meeting various connector requirements. Users can easily replace adapter heads and ceramic ferrules.
    • Large-Capacity Lithium Battery: Rechargeable lithium battery with ultra-large capacity, offering long-lasting endurance. Comes with a universal USB interface.
    • Wavelength Memory Function: Thoughtful design that allows the device to remember the last used wavelength upon startup.


    Applications

    Fiber optical power meter can be widely used in optical cable construction and maintenance, optical fiber communication, optical fiber sensing, CATV and other fields. It is mainly used for the measurement of continuous optical signal power, optical fiber line loss test, optical device insertion loss test, optical fiber breakpoint location, end-to-end optical fiber identification, etc.

    Handheld fiber optic power meter for optical fiber communication

    Optical Fiber Communicate

    Handheld fiber optic power meter for optical fiber sensing

    Optical Fiber Sensing

    Handheld fiber optic power meter for catv

    CATV

    Handheld fiber optic power meter for optical cable construction and maintenance

    Optical Cable Const.&Maint.

    Specs



    Model SISCO-PQA-G770
    Power Measurement Range -70~+3dBm
    Wavelength Range 800~1700
    Interface Type 2.5mm universal adapter
    Detection Area 300(um)
    Standard Wavelength 850, 980, 1300, 1310, 1490, 1550, 1625
    Uncertainty ±5%(nm)
    Display Resolution Linear display: 0.1%, logarithmic display: 0.01dBm
    Operating Temperature -20~+60(°C)
    Storage Temperature -25~+70(°C)
    Working Current <35mA
    Charging Current 300mA
    Charging Time <3 hours
    Automatic Shutdown Time 10 minutes
    Power Supply Lithium battery
    Battery Life >18 hours
    Standby Time >365 days
    Size 127*45*20(mm)
    Net Weight 87g



    Details

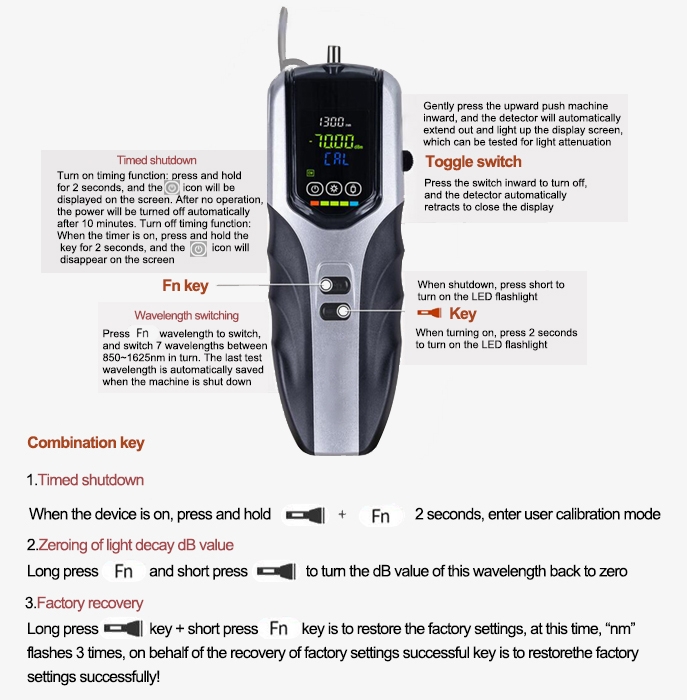

    USB handheld optical power meter button details

    Packing List

    • 1 x Optical Power meter
    • 1 x USB cable
    • 1 x Warranty card
    • 1 x Certificate
    • 1 x User manual
    • 1 x Packing box

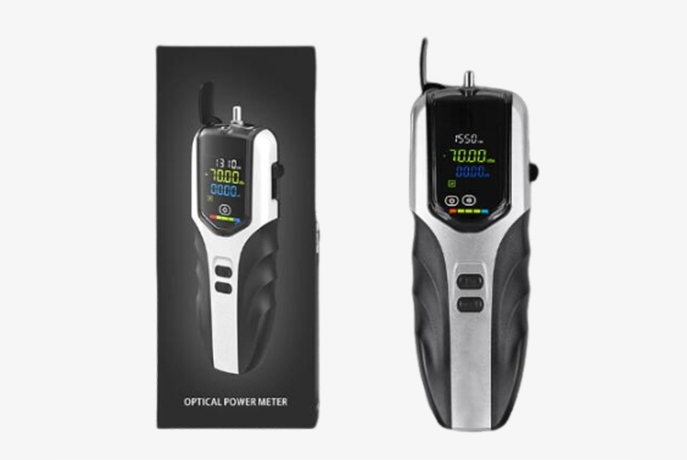

    USB handheld optical power meter packing list

    FAQ

    Q1: What do EN61326-1:2013 and EN61326-2-2:2013 compliance standards mean?
    A1: EN61326-1:2013 and EN61326-2-2:2013 are European standards that define the requirements for electromagnetic compatibility (EMC) for electrical equipment used in industrial and laboratory environments. Compliance with these standards ensures that a device, such as a fiber optic power meter, can operate without causing or being affected by electromagnetic interference in these settings. EN61326-1:2013 covers the general requirements for all equipment, while EN61326-2-2:2013 provides additional requirements specific to test and measurement equipment, ensuring reliable and accurate performance in environments with potential electromagnetic disturbances.

    Q2: Why is wavelength selection important in a fiber optic power meter?
    A2: Wavelength selection is crucial in a fiber opm because different optical signals are transmitted at specific wavelengths, depending on the type of fiber and the application. Accurate measurement of the optical signal's power requires the power meter to be tuned to the correct wavelength, as signal strength can vary significantly across different wavelengths. Incorrect wavelength selection can lead to inaccurate measurements, potentially compromising the performance of the network. Therefore, having a power meter that supports a range of wavelengths ensures versatility and precision in various testing and troubleshooting scenarios within fiber optic systems.

    Q3: What wavelengths do fiber optic power meter typically measure?
    A3: Fiber optic power meter typically measure a range of wavelengths commonly used in fiber optic communications. The most standard wavelengths include 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, and 1650nm. These wavelengths cover the primary bands used for data transmission in various types of optical fibers, including multimode and single-mode fibers, ensuring that the power meter can accurately measure the signal strength across different fiber optic networks.

    Tips: How does a fiber optic power meter work?

    A fiber optic power meter works by measuring the optical power of light transmitted through a fiber optic cable. The device uses a photodetector to capture the light signal, which then converts the optical energy into an electrical signal. This electrical signal is proportional to the power of the light entering the meter. The power meter processes this electrical signal and displays the optical power level, typically in units such as decibels-milliwatts (dBm), decibels (dB), or milliwatts (mW). The user selects the appropriate wavelength on the meter to match the wavelength of the light being measured, ensuring accurate readings. This process allows technicians to verify signal strength, troubleshoot issues, and ensure the fiber optic network is functioning correctly.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
