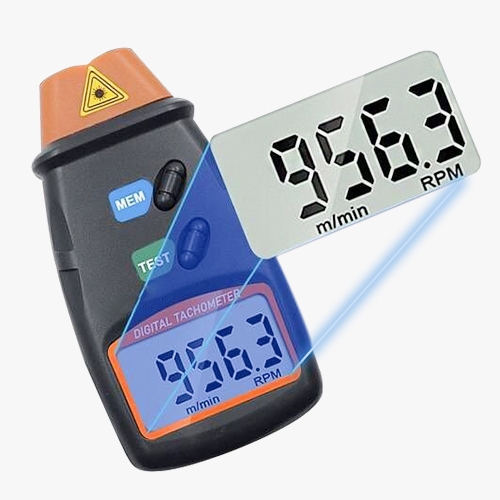

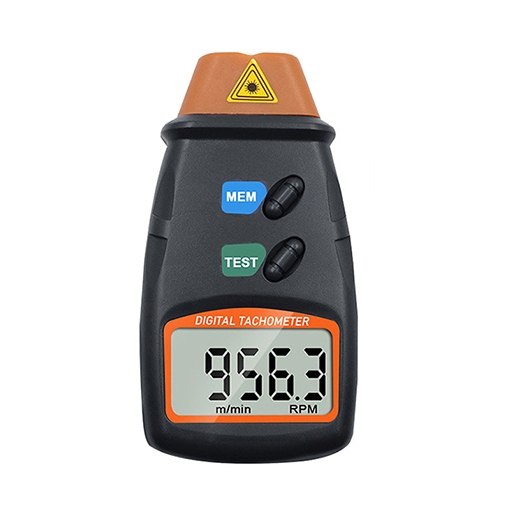

Buy a non-contact laser digital tachometer for motors, engines, aircraft, motorcycles, and automotive now available at a cheap price, offering reliable performance for your measurement needs. The non-contact laser digital tachometer has accurate data, handheld size, and ease of use.
Non-contact Laser Digital Tachometer Functions
-
Wide measuring range, high precision.
-
Large display, easy to operate.
-
Data recording and storage.
Non-contact Laser Digital Tachometer Features
-
Automatic switch-off.
-
Uses a single 6F22 9V battery.
-
Precise measurement of the rotational speed of impeller blades, drums, and shafts.
Applications
SISCO laser digital tachometer is a non-contact tachometer, one of the necessary instruments in the mechanical industry to determine a motor's rotational speed, linear speed, or frequency. It is commonly used in manufacturing motors, electric fans, engines, plastic and chemical fibers, diesel, motorcycles, cars, aircraft, and marine vessels.
Engine
Marine
Car
Motor
Â
| Model | SISCO-DT-2234C |
| Test range | 2.5RPM ~99,999RPM(RPM) |
| Resolution | 0.1RPM(rpm)(2.5~999.9RPM) 1RPM(rpm)(1000RPM or more) |
| Measurement accuracy | ±(0.05% + 1 character) |
| Sampling time | 0.8sec(60 RPM or more) |
| Effective measuring distance | 50mm~500mm(Laser light source) |
| Time base | 6MHz quartz crystal oscillator |
| Data storage | 20 groups |
| Range selection | Automatic switching |
| Power supply | Single 6F22 9V battery, rechargeable battery not supported |
| Power consumption | Approx. 35mA |
| Accuracy | Value after 4 consecutive tests after switching on the device |
Â

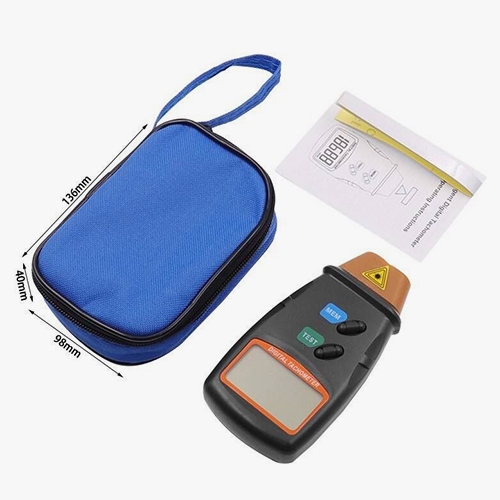

Package List
Q1: What is a digital tachometer?
A1: A digital tachometer is an instrument used to measure the rotational speed of a shaft or disk in motors or other machines. It displays the speed in revolutions per minute (RPM) on a digital screen. Digital tachometers are known for their accuracy, ease of use, and ability to provide real-time readings.
Q2: What are the types of digital tachometers?
A2: There are several types of digital tachometers, each designed for specific applications and measurement methods.
- Contact Tachometers: These require physical contact with the rotating object. A probe or wheel is placed against the rotating part, and the tachometer measures the RPM based on the contact.
- Non-contact Tachometers: These use optical or laser methods to measure RPM. A beam of light or laser is directed at a reflective mark on the rotating object, and the tachometer counts the number of reflections per minute.
- Handheld Tachometers: Portable and easy to use, these can be either contact or non-contact and are used for on-site measurements.
- Laser Tachometers: A subset of non-contact tachometers, these use laser technology for high precision and can measure from a distance.
Q3: What is the use of a digital tachometer?
A3: A digital tachometer is used to measure the rotational speed of an object, typically a motor or other machinery. Here are some common uses.
- Industrial Applications: Monitoring and controlling the speed of machines and motors to ensure they operate within safe and efficient ranges.
- Automotive Industry: Measuring engine RPM to diagnose performance issues or ensure optimal operation.
- Maintenance and Troubleshooting: Detecting mechanical issues in rotating equipment by monitoring speed irregularities.
- Research and Development: Gathering data on the performance of prototypes and experimental setups.
- HVAC Systems: Measuring fan and blower speeds to ensure proper airflow and system efficiency.
- Quality Control: Ensuring that products requiring rotational components meet specified speed criteria during production.
Tips: How to calibrate a laser digital tachometer?
- Use a Reference Standard: Select a known accurate RPM source.
- Set Up Tachometer: For contact models, attach the tip; for a non-contact, position with reflective tape.
- Measure and Compare: Measure RPM and compare to the reference standard.
- Adjust Calibration: If readings differ, adjust settings per the manufacturer's instructions.
- Verify: Re-check readings for accuracy.
- Document: Record the process and results.
