Buy a contact and non-contact digital tachometer for motors, engines, aircraft, and cars now available at a cheap price, offering reliable performance for your measurement needs. The contact and non-contact digital tachometer is stable, safe, and reliable.
Contact and Non-contact Digital Tachometer Functions
-
2 in 1 measurement modes, contact and non-contact.
-
Can be used to measure rotational speed, frequency, counting, surface speed, and length parameters.
-
Can store 10 sets of data, while maintaining the maximum value, minimum value, average value, and last reading.
-
Support mobile phone APP Bluetooth transmission, convenient for users to view data on mobile phones and export graphs and other operations.
-
Screen display with up and down flip function.
Contact and Non-contact Digital Tachometer Features
-

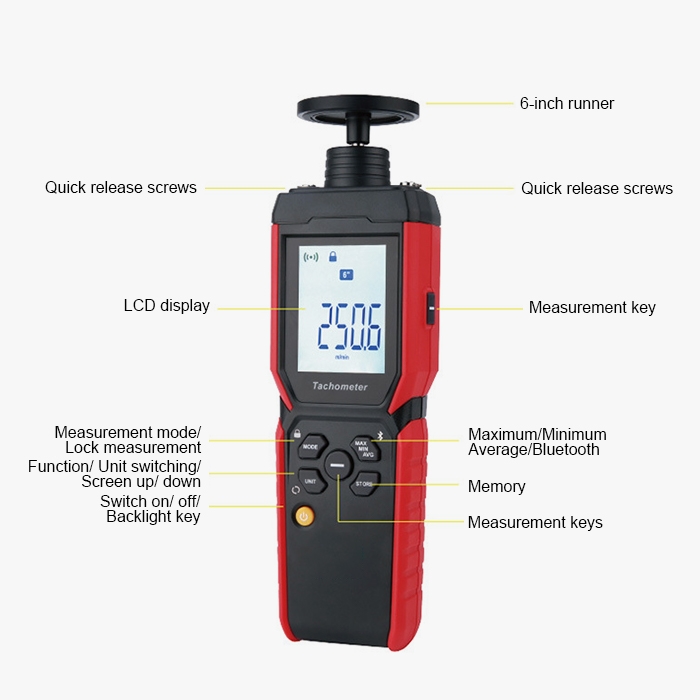

Dual measurement buttons design, convenient for different angle measurement.
-

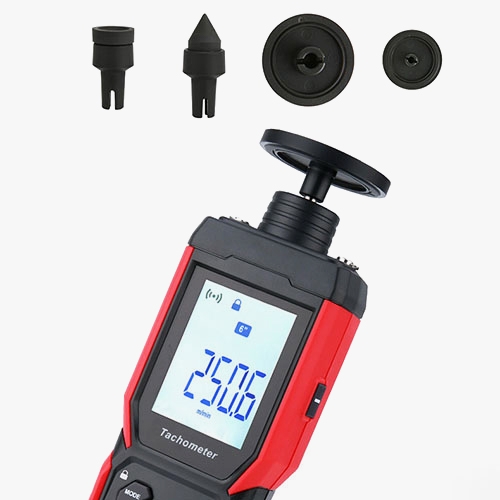

Converter head and battery back cover are fastened with quick-release screws, no screwdriver is required for removal.
-

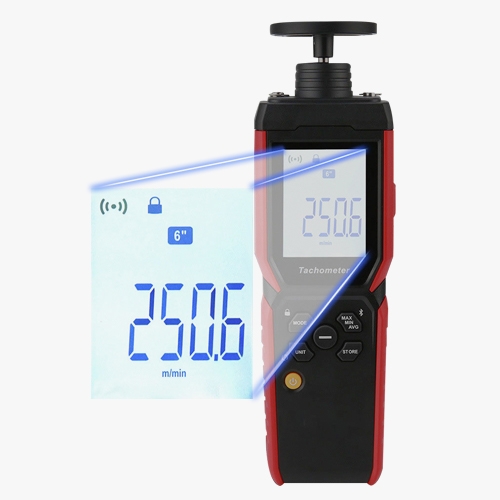

Large display with backlight for easy reading in a dark environment.
-
Manual measurement and lock measurement can be switched freely.
Applications
SISCO digital tachometer is a contact and non-contact tachometer, one of the necessary instruments in the mechanical industry to determine a motor's rotational speed, linear speed, or frequency. The digital RPM meter is commonly used in manufacturing motors, electric fans, engines, plastic and chemical fibers, diesel, motorcycles, cars, aircraft, and marine vessels.
Engine
Marine
Car
Motor
Â
| Model | SISCO-DT-UT372D | |
| Non-contact measurement | Speed measurement range (RPM) | 1-99,999 |
| Frequency (Hz) | 1-1,666 | |
| Counting range (times) | 1-99,999 | |
| Contact measurement | Speed measurement range (RPM) | 1-19,999 |
| Frequency (Hz) | 1-333 | |
| Surface speed measurement range | 0.1m runner（0.1-1,999m/min）（0.4-6,550ft/min）（4-78,700in/min） 6'' runner（0.15-1,524m/min）（0.5-5,000ft/min）（6-60,000in/min） |
|
| Surface length measuring range | 0-99999m/0-99999ft/0-99999in | |
| Resolution | Rotation speed resolution | 0.01(1-99.99）/0.1 (100-999.9)/1( 1000-99,999) |
| Frequency resolution | 0.1 | |
| Surface speed resolution | 0.01(1-99.99）/0.1 (100-999.9)/1( 1000-99,999) | |
| Surface length resolution | 0.01(1-99.99）/0.1 (100-999.9)/1( 1000-99,999) | |
| Accuracy | RPM and frequency | ± (0.02% of reading + 1 word) |
| Maximum/minimum/average/last value | Yes | |
| Data storage | 10 groups | |
| Auto power off/backlight | Yes | |
| Bluetooth wireless transmission | Yes | |
| Low battery reminder | Yes | |
| Automatic range switching | Yes | |
| Screen flip | Yes | |
| Working temperature and humidity | 0℃～50℃; ≤80% | |
| Storage temperature | -20℃～60℃ | |
| Drop test | 1 meter (mainframe) | |
| Power supply | 3*AAA batteries | |
| LCD size | 36mm*49mm | |
| Dimension | 176mm*63mm*38mm | |
| Weight | 181g (main unit weight / without battery) | |
Â
Details
Q1: What is a digital tachometer?
A1: A digital tachometer is an instrument used to measure the rotational speed of a shaft or disk in motors or other machines. It displays the speed in revolutions per minute (RPM) on a digital screen. Digital tachometers are known for their accuracy, ease of use, and ability to provide real-time readings.
Q2: What are the types of digital tachometers?
A2: There are several types of digital tachometers, each designed for specific applications and measurement methods.
- Contact Tachometers: These require physical contact with the rotating object. A probe or wheel is placed against the rotating part, and the tachometer measures the RPM based on the contact.
- Non-contact Tachometers: These use optical or laser methods to measure RPM. A beam of light or laser is directed at a reflective mark on the rotating object, and the tachometer counts the number of reflections per minute.
- Handheld Tachometers: Portable and easy to use, these can be either contact or non-contact and are used for on-site measurements.
- Laser Tachometers: A subset of non-contact tachometers, these use laser technology for high precision and can measure from a distance.
Q3: What is the use of a digital tachometer?
A3: A digital tachometer is used to measure the rotational speed of an object, typically a motor or other machinery. Here are some common uses.
- Industrial Applications: Monitoring and controlling the speed of machines and motors to ensure they operate within safe and efficient ranges.
- Automotive Industry: Measuring engine RPM to diagnose performance issues or ensure optimal operation.
- Maintenance and Troubleshooting: Detecting mechanical issues in rotating equipment by monitoring speed irregularities.
- Research and Development: Gathering data on the performance of prototypes and experimental setups.
- HVAC Systems: Measuring fan and blower speeds to ensure proper airflow and system efficiency.
- Quality Control: Ensuring that products requiring rotational components meet specified speed criteria during production.
Tips: How to calibrate a digital tachometer?
- Use a Reference Standard: Select a known accurate RPM source.
- Set Up Tachometer: For contact models, attach the tip; for a non-contact, position with reflective tape.
- Measure and Compare: Measure RPM and compare to the reference standard.
- Adjust Calibration: If readings differ, adjust settings per the manufacturer's instructions.
- Verify: Re-check readings for accuracy.
- Document: Record the process and results.
