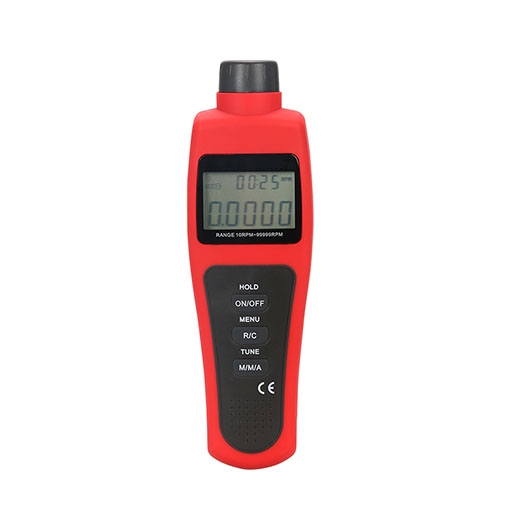

Non-contact Digital Photo Tachometer for Automotive/Engine

Details

Non-contact Digital Tachometer

Q1: What is a digital tachometer?
A1: A digital tachometer is an instrument used to measure the rotational speed of a shaft or disk in motors or other machines. It displays the speed in revolutions per minute (RPM) on a digital screen. Digital tachometers are known for their accuracy, ease of use, and ability to provide real-time readings.

Q2: What are the types of digital tachometers?
A2: There are several types of digital tachometers, each designed for specific applications and measurement methods.

• Contact Tachometers: These require physical contact with the rotating object. A probe or wheel is placed against the rotating part, and the tachometer measures the RPM based on the contact.
• Non-contact Tachometers: These use optical or laser methods to measure RPM. A beam of light or laser is directed at a reflective mark on the rotating object, and the tachometer counts the number of reflections per minute.
• Handheld Tachometers: Portable and easy to use, these can be either contact or non-contact and are used for on-site measurements.
• Laser Tachometers: A subset of non-contact tachometers, these use laser technology for high precision and can measure from a distance.

Q3: What is the use of a digital tachometer?
A3: A digital tachometer is used to measure the rotational speed of an object, typically a motor or other machinery. Here are some common uses.

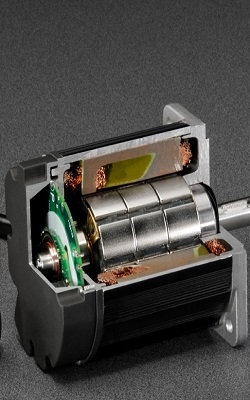

• Industrial Applications: Monitoring and controlling the speed of machines and motors to ensure they operate within safe and efficient ranges.

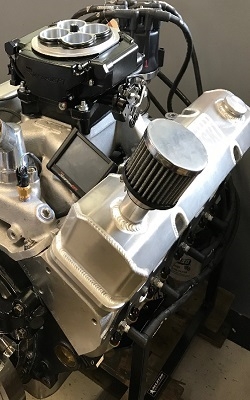

• Automotive Industry: Measuring engine RPM to diagnose performance issues or ensure optimal operation.
• Maintenance and Troubleshooting: Detecting mechanical issues in rotating equipment by monitoring speed irregularities.
• Research and Development: Gathering data on the performance of prototypes and experimental setups.
• HVAC Systems: Measuring fan and blower speeds to ensure proper airflow and system efficiency.
• Quality Control: Ensuring that products requiring rotational components meet specified speed criteria during production.

Tips: How to calibrate a digital tachometer?

• Use a Reference Standard: Select a known accurate RPM source.
• Set Up Tachometer: For contact models, attach the tip; for a non-contact, position with reflective tape.
• Measure and Compare: Measure RPM and compare to the reference standard.
• Adjust Calibration: If readings differ, adjust settings per the manufacturer's instructions.
• Verify: Re-check readings for accuracy.
• Document: Record the process and results.
