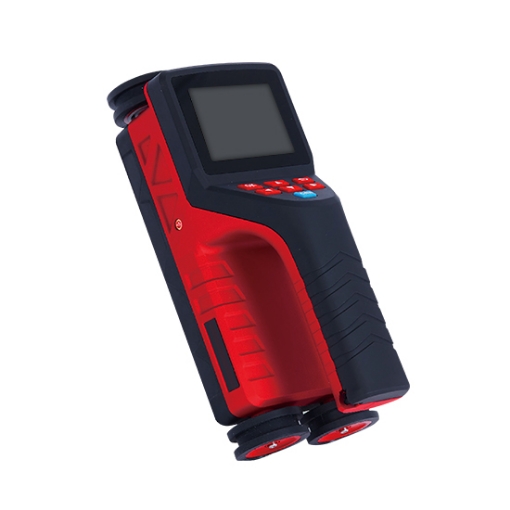

SISCO integrated rebar scanner for concrete precisely maps rebar distribution and provides high-accuracy, high-speed detection data. Its all-in-one main unit and sensor coil design make the rebar detector portable and easy to operate on-site. The multi-coil structure enhances detection speed, accuracy, and resolution for superior scanning performance. It is widely used in bridge construction, highway engineering, railway projects, tunnel construction, and building sites.
Key Functions

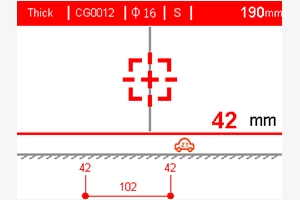

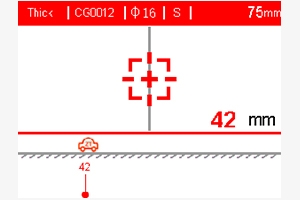

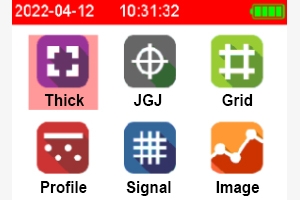

- Concrete cover thickness detection with multiple scanning modes: standard, grid, cross-section, fine, and image scanning.
- Precise determination of rebar position, orientation, and distribution.
- Measurement of rebar cover thickness and diameter estimation.
- Storage, review, and transfer of detection data.
Special Features
- The fine scanning mode of the rebar finder enhances detection accuracy for dense rebar layouts, improving rebar count and cover thickness precision.
- Real-time X/Y-axis switching during grid scanning allows seamless transitions, ensuring continuous and flexible on-site testing.
- Horizontal and vertical laser positioning with visual indicators and targeting frames for precise rebar scan.
- Automatic data storage prevents data loss due to operational errors.
- Type-C port of this rebar detector enables faster data transfer and convenient charging.
Main Features
- 2.8-inch high-resolution color LCD screen (320×240 pixels).
- Multi-coil structure for faster speed, higher precision, and enhanced resolution.
- Built-in high-capacity lithium battery with low power consumption, providing up to 16 hours of standby time on a full charge.
- Comprehensive data management with storage, review, and deletion functions, supporting up to 200,000 rebar measurement points.
- Configurable with a professional calibration block for enhanced accuracy.
- Compact and lightweight integrated design, making the rebar scanner highly portable.
- Professional rebar detection software for PC-based data analysis, processing, and complete report generation.
Applications
The rebar scanner is widely used in reinforced concrete structure inspections, furniture wall installations, drilling rebar positioning, and electrical cable detection. In reinforced concrete inspections, the rebar detector accurately measures rebar position, spacing, and concrete cover thickness, ensuring construction quality and safety. For furniture wall installations and drilling, it helps avoid rebars, improving installation precision and reducing damage risks. In electrical cable detection, the rebar locator effectively identifies hidden cables within walls or floors, preventing accidental drilling or cutting and enhancing construction safety.
Drilling Positioning
Concrete Structure
Cable Detection
Furniture Installation
| Model | SISCO-RS-ZT707 | |
| Rebar Diameter Range (mm) | φ6~φ50 | |
| Protective Layer Thickness Range (mm) | Small Range: 1~120 | |
| Large Range: 5~210 | ||
| Communication Mode | Type-C Transmission Interface | |
| Storage Capacity | 200,000 Rebar Measurement Points | |
| Display Resolution | 320 × 240 | |
| Power Supply | Built-in High-capacity Lithium Battery | |
| Operating Time | ≥16 hours | |
| Operating Temperature | -10℃~+50℃ | |
| Relative Humidity | <90% RH | |
| Overall Dimensions (mm) | 219 × 92 × 106 | |
| Operation Method | Silicone keypad | |
| Net Weight | 0.60 kg (Battery Included) | |
| Measurement Range for Different Rebar Diameters | ||
| Rebar Diameter (mm) | Small Range (mm) | Large Range (mm) |
| φ6~φ8 | 1~60 | 5~120 |
| φ10~φ20 | 1~80 | 5~160 |
| Above φ20 | 1~120 | 5~210 |
| Measurement Error for Different Thickness Ranges | ||
| Error (mm) | Small Range (mm) | Large Range (mm) |
| ±1 | 1~80 | 5~80 |
| ±2 | 81~120 | 81~120 |
| ±4 | / | 121~210 |
Q1: What parameters can the integrated rebar scanner for concrete detect?
A1: This rebar scanner detects rebar position, concrete cover thickness, rebar spacing, and diameter within concrete structures. By accurately measuring these parameters, it provides a comprehensive understanding of rebar distribution, offering crucial data for construction quality assessment and safety evaluation.
Q2: How to ensure measurement accuracy during detection?
A2: Calibrate the rebar scanner before use by following the steps in the user manual. Ensure the detector probe maintains firm contact with the concrete surface. Move the probe slowly and evenly, avoiding rapid movements or shaking. Scan on flat, debris-free surfaces to minimize external interference in measurement results.
Q3: How to export stored data from the rebar locator?
A3: Connect the rebar finder to a computer using a data cable and follow the on-screen prompts or user manual instructions to export stored data. The exported files are in common formats, making them easy to analyze and process with relevant software.
Tips: Important considerations when using the rebar scanner
- Plan Your Scanning Route: Before scanning large concrete areas, map out a detection route to avoid redundant scans or missed sections, improving efficiency.
- Keep the Probe Clean: Before and after each use, wipe the probe with a clean, soft cloth to remove dust and debris, ensuring optimal contact and measurement precision.
- Use Multi-Angle Scanning: For complex concrete structures, scan from multiple angles to obtain a more complete rebar distribution map, minimizing errors from single-angle detection.
