High-quality digital absolute pressure gauge has five units can be choosen, which has a LCD display to read easier. The SISCO digital pressure gauges are widely used for various gas or liquid pressure measurements in industries, laboratories, scientific research, HVAC systems, water treatment, etc.
5 measurement units which is easy to switch
- The digital pressure gauge with a clear, easy-to-read dial that shows 5 pressure readings in psi, kPa, MPa, bar and kfg/cm².
- Increment Markings: The electronic pressure gauge provides precise increment markings for accurate readings.
Powered by 2 AAA batteries, easy to replace
- No external leads and power supply required.
- 4-digit display, can retain 3 decimal places, more accurate measurement.
- Long press to clear the history, maximum and minimum values recorded.
Note: When the LCD digital display is dim or no display, the battery should be replaced in time.

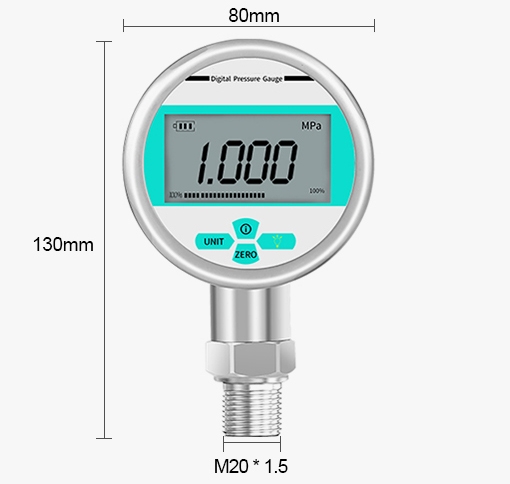

Dimension
Applications
SISCO digital pressure gauges are widely used for various gas or liquid pressure measurements in industries, laboratories, scientific research, HVAC systems, water treatment, etc. The electronic pressure gauges are used to monitor and accurately measure the pressure of liquids and gases in real time. They provide high-precision readings, are easy to read, and can integrate data logging and remote monitoring functions.
HVAC Systems
Laboratory
Water Treatment
Industry
| Model | SISCO-DPS-YB80-1M |
| Measuring Range | 0-10 bar/ 0-145 psi/ 0-1MPa |
| Accuracy | ±0.2% |
| Thread | M20*1.5 |
| Pressure Type | Gauge pressure, absolute pressure, sealed gauge pressure |
| Measurement Medium | Water, air |
| Dial Size | 80mm |
| Overload Capacity | ＜40MPa,150%;＞40MPa,120% |
| Long-term Stability | 0.2% FS/Y |
| Sampling Frequency | 3 times/s |
| Display Screen | LCD display |
| Supply Voltage | 3V (two AAA batteries) |
| Material | 304 stainless steel |
| Installation Method | Radial |
| Peak Value Recording | √ |
| One-button Power On/Off | √ |
| Unit Conversion | √ |
| Peak and Valley Value Recording | √ |
| Low Power Prompt | √ |
Detail
Q1: What is a digital pressure gauge?
A1: A digital pressure gauge is an instrument that measures and displays pressure readings electronically using a digital display. It typically offers higher accuracy and ease of use compared to analog pressure gauges.
Q2: How does a digital pressure gauge work?
A2: A digital pressure gauge measures pressure using a sensor that converts pressure into an electrical signal. This signal is amplified, converted from analog to digital, processed by a microprocessor, and then displayed on a digital screen. The result is an accurate, real-time pressure reading.
Q3: What is a pressure gauge used for?
A3: Yes, a digital pressure gauge is generally more accurate than a mechanical pressure gauge, as it offers higher precision, better resolution, and easier readability due to its electronic components and digital display.
Tips: What applications are suitable for a 0-10 bar digital pressure gauge?
A 0-10 bar digital pressure gauge is suitable for a variety of applications, including:
- Industrial Processes: Monitoring and controlling pressure in manufacturing and production lines.
- Hydraulic Systems: Ensuring proper pressure levels in hydraulic machinery and equipment.
- Pneumatic Systems: Measuring air pressure in pneumatic tools and systems.
- HVAC Systems: Checking pressure levels in heating, ventilation, and air conditioning systems.
- Automotive: Measuring tire pressure and monitoring other automotive systems.
- Water Treatment Plants: Monitoring pressure in water filtration and distribution systems.
- Laboratories: Conducting experiments and tests that require precise pressure measurements.
