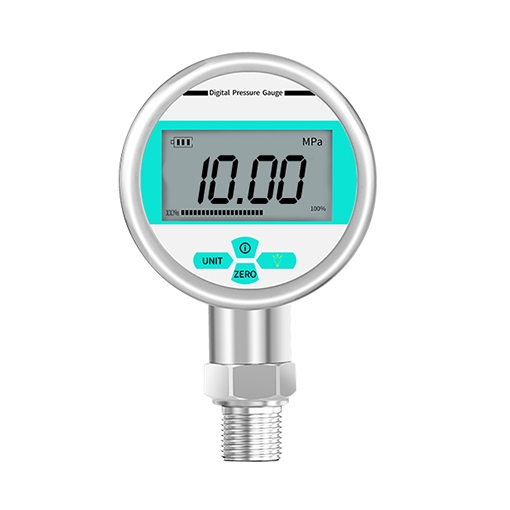

Get a high-pressure digital pressure gauge from SISCO to help measure water pressure, hydraulic pressure, oil pressure and air pressure. The precision digital pressure gauge Can display pressure readings in various units such as PSI, bar, kPa, and MPa, allowing for flexibility in different applications.
5 measurement units which is easy to switch
- The digital pressure gauge with a clear, easy-to-read dial that shows 5 pressure readings in psi, kPa, MPa, bar and kfg/cm².
- Increment Markings: The electronic pressure gauge provides precise increment markings for accurate readings.
Powered by 2 AAA batteries, easy to replace
- No external leads and power supply required.
- 4-digit display, can retain 3 decimal places, more accurate measurement.
- Long press to clear the history, maximum and minimum values recorded.
Note: When the LCD digital display is dim or no display, the battery should be replaced in time.

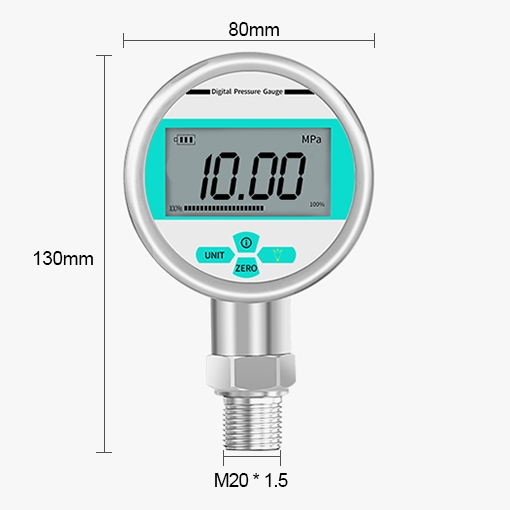

Dimension
Applications
SISCO digital pressure gauges are widely used for various gas or liquid pressure measurements in industries, laboratories, scientific research, HVAC systems, water treatment, etc. The electronic pressure gauges are used to monitor and accurately measure the pressure of liquids and gases in real time. They provide high-precision readings, are easy to read, and can integrate data logging and remote monitoring functions.
Car
Bike
Truck
Motorcycle
| Model | SISCO-DPS-YB80-10MP |
| Measuring Range | 0-100 bar/ 0-1450 psi/ 0-10 MPa |
| Accuracy | ±0.2% |
| Thread | M20*1.5 |
| Pressure Type | Gauge pressure, absolute pressure, sealed gauge pressure |
| Measurement Medium | Water, air, hydraulic, oil |
| Dial Size | 80mm |
| Overload Capacity | ＜40MPa,150%;＞40MPa,120% |
| Long-term Stability | 0.2% FS/Y |
| Sampling Frequency | 3 times/s |
| Display Screen | LCD display |
| Supply Voltage | 3V (two AAA batteries) |
| Material | 304 stainless steel |
| Installation Method | Radial |
| Peak Value Recording | √ |
| One-button Power On/Off | √ |
| Unit Conversion | √ |
| Peak and Valley Value Recording | √ |
| Low Power Prompt | √ |
Detail
Q1: What is a digital pressure gauge?
A1: A digital pressure gauge is an instrument that measures and displays pressure readings electronically using a digital display. It typically offers higher accuracy and ease of use compared to analog pressure gauges.
Q2: How does a digital pressure gauge work?
A2: A digital pressure gauge measures pressure using a sensor that converts pressure into an electrical signal. This signal is amplified, converted from analog to digital, processed by a microprocessor, and then displayed on a digital screen. The result is an accurate, real-time pressure reading.
Q3: What is a pressure gauge used for?
A3: Yes, a digital pressure gauge is generally more accurate than a mechanical pressure gauge, as it offers higher precision, better resolution, and easier readability due to its electronic components and digital display.
Tips: What are the benefits of using a digital pressure gauge?
Using a digital pressure gauge offers several benefits:
- High Accuracy: Digital pressure gauges provide precise readings, often with accuracy within ±0.1% to ±0.5% of the full-scale reading.
- Easy Readability: The digital display makes it easy to read pressure values quickly and accurately, reducing the chance of human error compared to analog gauges.
- User-Friendly Interface: Digital gauges often have intuitive interfaces, making them easy to operate and configure.
- Versatility: They can measure various types of pressure, including gauge, absolute, and differential pressure, making them suitable for a wide range of applications.
- Durability: Digital pressure gauges are often designed to withstand harsh environments, with robust construction that includes features like waterproofing, and resistance to vibration and shock.
- Multiple Units of Measurement: They can display pressure in various units such as psi, bar, kPa, and more, allowing users to select their preferred measurement unit.
