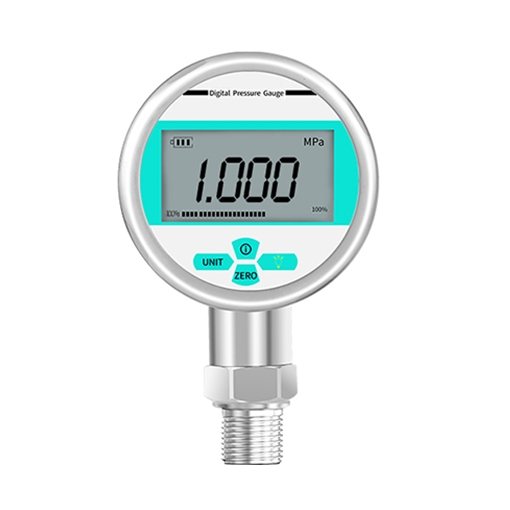

SISCO high-quality digital pressure gauge is available with a 0~0.1 bar measuring range and stainless steel material. Digital low pressure gauge is designed for measuring water pressure, hydraulic pressure, oil pressure and air pressure, suitable for industries, laboratories, scientific research, HVAC systems, water treatment, etc.

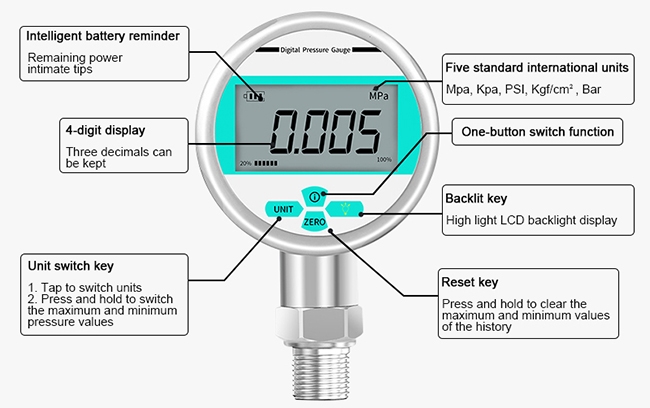

5 measurement units which is easy to switch
- The digital pressure gauge with a clear, easy-to-read dial that shows 5 pressure readings in psi, kPa, MPa, bar and kfg/cm².
- Increment Markings: The electronic pressure gauge provides precise increment markings for accurate readings.
Powered by 2 AAA batteries, easy to replace
- No external leads and power supply required.
- 4-digit display, can retain 3 decimal places, more accurate measurement.

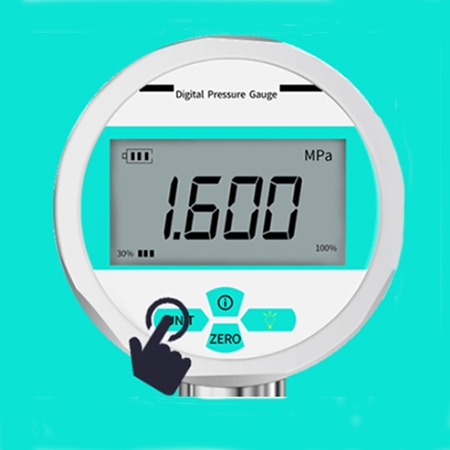

- Long press to clear the history, maximum and minimum values recorded.
Note: When the LCD digital display is dim or no display, the battery should be replaced in time.

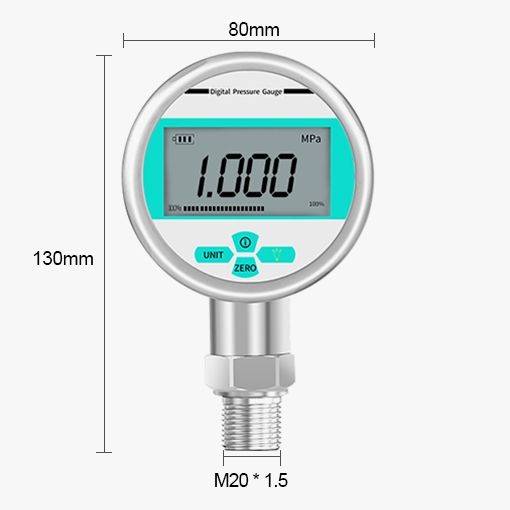

Dimension
Applications
SISCO digital pressure gauges are widely used for various gas or liquid pressure measurements in industries, laboratories, scientific research, HVAC systems, water treatment, etc. The electronic pressure gauges are used to monitor and accurately measure the pressure of liquids and gases in real time. They provide high-precision readings, are easy to read, and can integrate data logging and remote monitoring functions.
HVAC Systems
Laboratory
Water Treatment
Industry
| Model | SISCO-DPS-YB80-10kP |
| Measuring Range | 0-0.1 bar/ 0-1.45 psi/ 0-10 kPa |
| Accuracy | ±0.4% |
| Thread | M20*1.5 |
| Pressure Type | Gauge pressure, absolute pressure, sealed gauge pressure |
| Measurement Medium | Water, air, hydraulic, oil |
| Dial Size | 80mm |
| Overload Capacity | ＜40MPa,150%;＞40MPa,120% |
| Long-term Stability | 0.2% FS/Y |
| Sampling Frequency | 3 times/s |
| Display Screen | LCD display |
| Supply Voltage | 3V (two AAA batteries) |
| Material | 304 stainless steel |
| Installation Method | Radial |
| Peak Value Recording | √ |
| One-button Power On/Off | √ |
| Unit Conversion | √ |
| Peak and Valley Value Recording | √ |
| Low Power Prompt | √ |

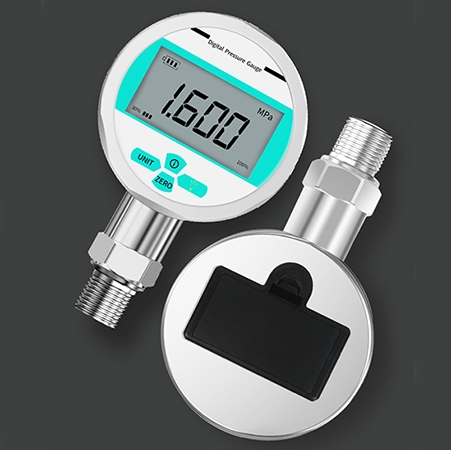

Detail
Q1: What is a digital pressure gauge?
A1: A digital pressure gauge is an instrument that measures and displays pressure readings electronically using a digital display. It typically offers higher accuracy and ease of use compared to analog pressure gauges.
Q2: How does a digital pressure gauge work?
A2: A digital pressure gauge measures pressure using a sensor that converts pressure into an electrical signal. This signal is amplified, converted from analog to digital, processed by a microprocessor, and then displayed on a digital screen. The result is an accurate, real-time pressure reading.
Q3: What is a pressure gauge used for?
A3: Yes, a digital pressure gauge is generally more accurate than a mechanical pressure gauge, as it offers higher precision, better resolution, and easier readability due to its electronic components and digital display.
Tips: How to maintain a digital low pressure gauge?
Maintenance for a digital low pressure gauge is crucial to ensure its accuracy and longevity. Here are the key maintenance tasks:
- Periodic Calibration: Regularly calibrate the gauge according to the manufacturer's recommendations to maintain accuracy. Calibration should be done using a standard reference pressure.
- Sensor Cleaning: Keep the pressure sensor clean. Contaminants or debris can affect the accuracy of the readings. Use appropriate cleaning methods as specified by the manufacturer.
- Battery Replacement: If the gauge is battery-operated, replace the batteries as needed to ensure consistent performance. Monitor battery life indicators, if available.
- Storage Conditions: When not in use, store the gauge in a clean, dry, and stable environment. Avoid exposing it to conditions that could cause damage.
Regular maintenance not only ensures accurate and reliable readings but also extends the life of the digital low pressure gauge.
