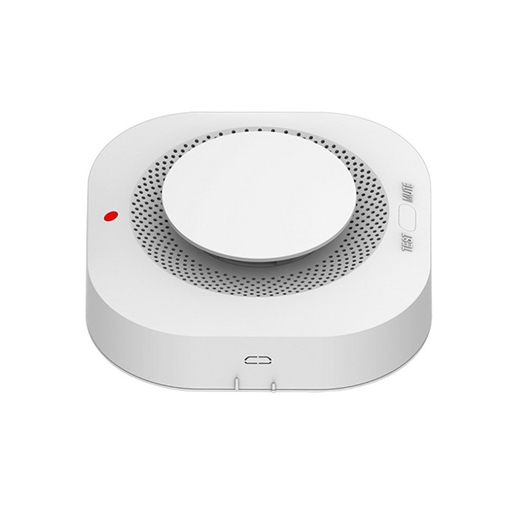

High-quality wireless smoke detectors prevent fires by monitoring the concentration of smoke. When the smoke concentration exceeds the limit, the smoke detector will give an audible and visual alarm and output a 433MHZ wireless signal. The smoke detector alarm provides clear, high-decibel alarm alerts, ensuring quick response in emergencies.

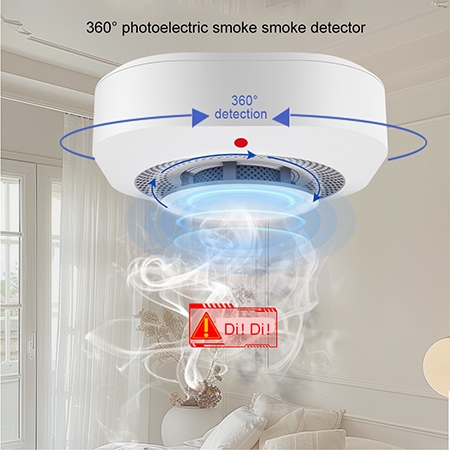

360° real-time smoke detection
- The photoelectric smoke detector is designed to monitor all directions simultaneously, ensuring no blind spots and maximizing area coverage for more reliable fire detection.
- The smoke detector provides instant alerts as soon as smoke is detected, enhancing response time and improving safety in critical moments.
- With a 360° detection capability, even the smallest traces of smoke are identified promptly, helping prevent false alarms and ensuring accuracy.

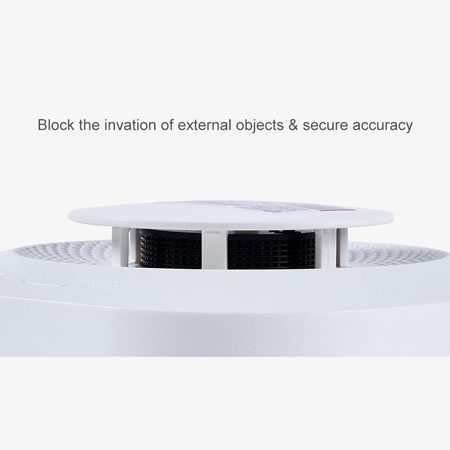

Anti-insect design blocks the intrusion of foreign objects to ensure accuracy
- The wireless smoke detector features a specialized barrier that prevents insects and external particles from entering the sensor area, maintaining consistent and accurate smoke detection.
- By blocking potential contaminants, the design minimizes false alarms and ensures that the detector remains focused solely on smoke particles.
- This protective feature enhances long-term performance, making it ideal for environments where external interference could impact sensor accuracy.

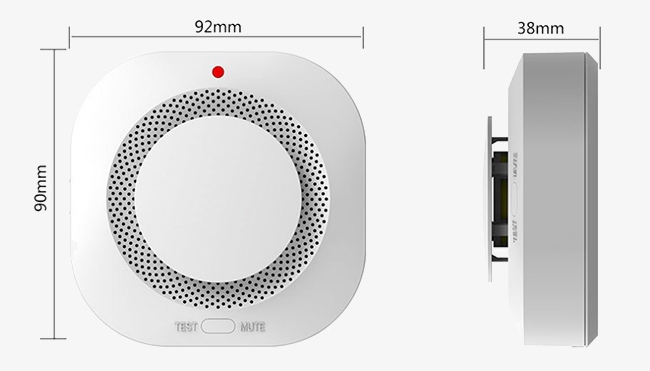

Dimension
Applications
SISCO smoke detectors are essential safety devices widely used across various spaces, from homes, hotels, and schools to shopping malls to quickly alert people to fire hazards. By detecting smoke early, these detectors help protect lives and property, facilitating quick evacuation and minimizing fire-related risks, making them crucial in enhancing safety and security for occupants in diverse environments.
Home
School
Shopping Mall
Hotel
| Model | SISCO-SMOKE-ZC-S003 | |
| Working Voltage | 3V | 9V |
| Quiescent Current | ≤15μA | ≤10μA |
| Alarm Current | ≤50mA | ≤35mA |
| Smoke Sensitivity | Level 2 | |
| Alarm Sound | ＞80db | |
| Transmitting Frequency | 433MHz | |
| Transmitting Distance | ≥100m (open distance) | |
| Working Temperature | -10~50℃ | |
| Working Humidity | 10%~90% RH | |
| Output Form | Sound and light alarm | |
| Temperature Alarm | 57±5℃ | |
| Dimension | 92*92*38mm | |
| Weight | 150g | |
Q1: What is a smoke detector?
A1: A smoke detector is a typical device converted from space fire protection measures to civilian use. The smoke detector mainly realizes fire prevention by monitoring the concentration of smoke. The smoke detector adopts ion-type smoke sensor. The ion-type smoke sensor is a kind of advanced technology, stable and reliable sensor, which is widely used in various daily life. Its performance is far better than that of gas-sensitive resistance fire alarms.
Q2: How does a smoke detector work?
A2: The infrared beam of the infrared emission tube is dispersed by the smoke particles, and the intensity of the scattered light is proportional to the smoke concentration. Therefore, the intensity of the infrared beam received by the photosensitive tube will change, and it will be converted into a point signal, which will eventually become an alarm signal.
Q3: What does a smoke detector do?
A3: Smoke detectors assemble sensors, control assemblies, and alarm notifications. Therefore, this is a collection of multi-functional detector in one, is the most suitable for residential. Once the smoke detector is triggered, the device sends a signal to the audio-visual notification device, which will issue an alarm. Inside the smoke detector, you'll find a power source and a built-in sensor that can react to the smoke in different ways.
Tips: What are the advantages of a wireless smoke detector?
- Easy Installation: Without the need for wiring, wireless detectors are quick and simple to install, making them ideal for existing buildings or spaces where running electrical lines is challenging.
- Flexible Placement: They can be easily relocated or added to new areas, providing adaptable coverage as needs change in a home, office, or commercial building.
- Smart Connectivity: Many wireless detectors integrate with smart home systems or security networks, allowing remote monitoring and real-time alerts via smartphone apps or connected hubs, ensuring you’re notified even when away.
- Interconnectivity: Wireless detectors can be interconnected, meaning if one detects smoke, it can trigger alarms on all units in the network, alerting everyone in the building.
Overall, wireless smoke detectors offer enhanced flexibility, ease of installation, and connectivity, making them a popular choice for both residential and commercial safety.
