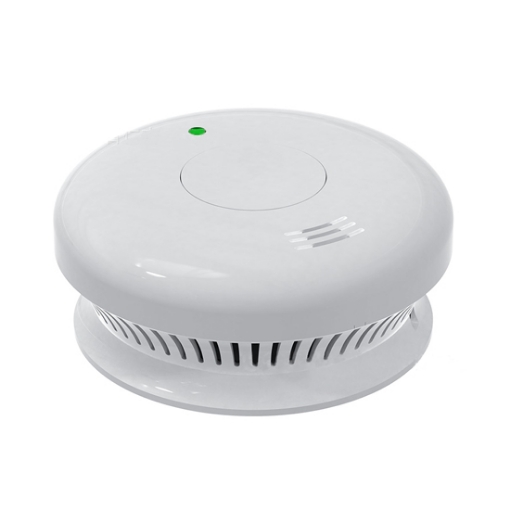

Operates on a 3V battery, offering a remarkable 10-year standby life. Crafted from ABS resin, the housing exhibits exceptional fire resistance and high-temperature resilience. It produces a sound pressure of up to 85dB, detectable within a 3-meter radius in an open environment.
Features
- Fault Self-Check: Highly stable smoke sensor, with high stability and sensitivity, automatically reporting detection data.
- Multiple Defense: Immediate flashing of corresponding lights and high-pitched audible alarm when smoke concentration exceeds the preset threshold or a product malfunction is detected, signaling a danger.
- Long standby time: Powered by a 3V battery, it boasts an extended 10-year standby duration, offering an exceptionally long standby time and eliminating the hassle of battery replacement.
Interlinked smoke alarms, stand alone fire alarm detail

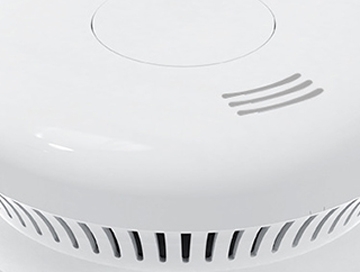

- ABS shell: The enclosure is constructed from ABS resin, an engineering plastic known for its exceptional fire resistance and high-temperature durability.
- Loud speaker: The sound pressure can reach 85 dB when measured within a 3-meter radius in an open space.
- 360-degree circular air intake: Circular body air intake for increased airflow, ensuring comprehensive detection.

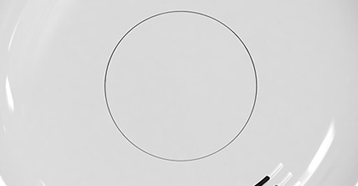

- Test button: Test whether the equipment is working properly, and can also be used to manually reset alarm equipment.

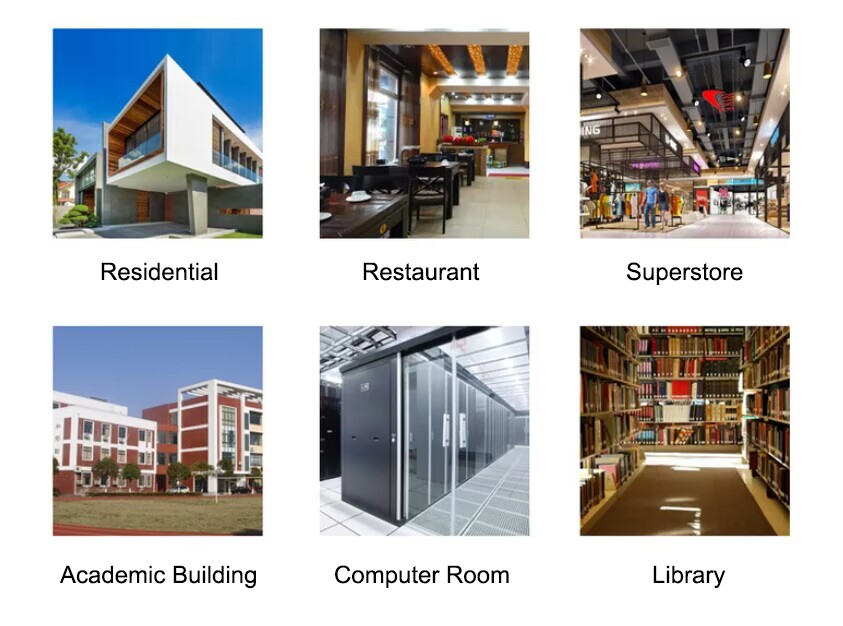

Applications
Interlinked smoke alarms and standalone fire alarms have various applications in ensuring safety and early detection of fires in different settings. It is suitable for the following scenarios.
| Model | SISCO-SMOKE-BRJ317 |
| Working voltage | CR123A 3V battery |
| Standby current | Less than 10uA |
| Alarm current | Less than 10 mA |
| Operating temperature | -10℃ to +50° |
| Operating humidity | Less than 95%RH |
| Alarm mode | Audible and visual alarms |
| Alarm pressure | More than 85dB/3m |
| Gas detection | Fog |
| Size | 140*41 mm |
| Installation | Ceiling mount |
| Warning indication | Red light flashing |
| Alarm mode | Audible and visual alarm |
Q1. Where should I install photoelectric smoke detectors?
A1. Photoelectric smoke detectors are suitable for most areas of the home, including bedrooms, hallways, and living spaces. They are especially recommended in areas where smoldering fires are more likely to occur.
Q2. What is a stand-alone fire alarm?
A2. A stand-alone fire alarm is a single fire detection device that operates independently. It typically includes a smoke or heat sensor and a built-in alarm sounder. When it detects a fire or smoke, it activates the alarm to alert occupants.
Tips: Precautions for photoelectric smoke detector use
- Proper Placement: Install photoelectric smoke detectors in key areas of your home, such as bedrooms, hallways, and living areas. Avoid placing them too close to sources of steam or cooking appliances to prevent false alarms.
- Regular Testing: Test your smoke detectors at least once a month by pressing the test button. This ensures that the alarm sounder and the detection mechanism are functioning correctly.
- Battery Replacement: If your photoelectric smoke detector is battery-powered, replace the batteries at least once a year or as soon as you hear a low-battery warning chirp. Consider using long-life lithium batteries for extended durability.
- Cleaning: Periodically clean the smoke detector to remove dust, cobwebs, and debris that can affect its performance. Use a soft brush or a vacuum cleaner with a brush attachment.
