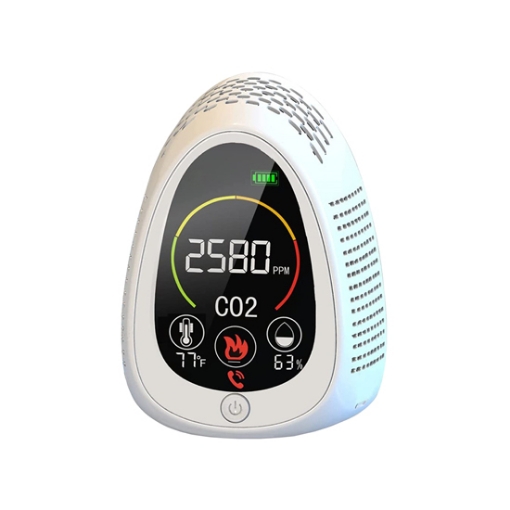

4 in 1 smoke and carbon dioxide detector detects CO2, smoke, temperature and humidity in the air, powered by 1400mAh battery, operating voltage DC 5V, CO2 detection range from 0 to 1500 ppm. This detector is also a wall-mounted smoke alarm.

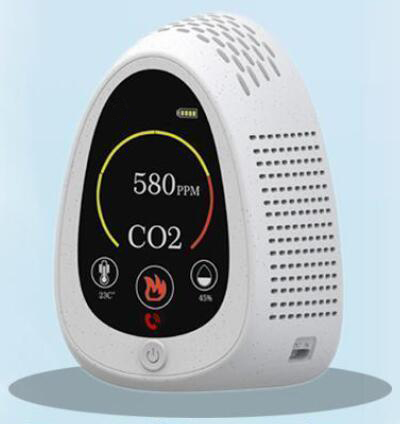

4 in 1 carbon dioxide (CO2) and smoke detector details
- Smoke sensor
- NDIR CO2 sensor
- Charging port
- CO2 alarm buzzer
- Audible smoke alarm
- Wall mount hole
- Rear cover
- LCD display
- Power button
4 in 1 carbon dioxide (CO2) and smoke detector functions
- LCD display with adjustable backlight.
- With self-test/mute function.
- Built-in battery. Can work 6-8 hours without charging.
- Fireproof ABS material.
- Language changes with the system.
Applications
Smoke detectors have a wide range of applications, such as bedrooms, living rooms, restaurants, offices, gyms, car cinemas, parks, schools, plant growing greenhouses, factories, bars, hotels, etc.
| Model | SISCO-PT01C |
| Product name | Smoke alarm & carbon dioxide detector |
| Material | Fire resistant ABS + LCD |
| Smoke sensor | Photoelectric smoke sensor |
| CO2 sensor | NDIR CO2 sensor |
| CO2 measure range | 0-1500 ppm |
| Accuracy | ±5% or ±10 ppm |
| Resolution | 0.5 ppm |
| Repeatability | ±2% |
| Response time | <60S |
| CO2 indicator | 0~499 ppm, shown as green |
| 500~999 ppm, shown as yellow | |
| 1000~1499 ppm, shown as orange | |
| 1500 ppm and above, shown as red | |
| Smoke sensitivity | 0.1% db/m~0.3% db/m |
| CO2 and smoke alarm | Sound alarm, 85dB (1~3M) |
| Temperature measuring range | -20℃~60℃ (±2%) |
| Humidity measuring range | 5%~95% (±5%) |
| Working temperature | 0℃~50℃ |
| Storage temperature | -10℃~60℃ |
| Working humidity | 5~95%RH |
| Battery capacity | 1400mAh |
| Resolution | 1ppm |
| Input voltage | DC 5V |
| Power supply | Chargeable battery and 2M long USB |
| Warm-up Time | < 7 seconds |
| Warranty time | 12 months |
| Dimension | 102*52*140mm |
| Weight | 1.5kg |
How to setup a 4 in 1 smoke detector via App?
To connect a smart CO2 detector to an app, follow these steps: Download the App associated with your CO2 meter from the App Store or Google Play. Ensure your CO2 detector is powered on and in pairing mode. Open the app, create an account, and log in.
Follow the on-screen instructions to add a new device. Select the CO2 smoke detector from the list of available devices and follow the prompts to complete the pairing process. Once connected, you can monitor CO2 levels, receive alerts, and customize settings through the app for enhanced safety and convenience.
Q1: What is a smoke detector?
A1: A smoke detector is a typical device converted from space fire protection measures to civilian use. The smoke detector mainly realizes fire prevention by monitoring the concentration of smoke. The smoke detector adopts ion-type smoke sensor. The ion-type smoke sensor is a kind of advanced technology, stable and reliable sensor, which is widely used in various daily life. Its performance is far better than that of gas-sensitive resistance fire alarms.
Q2: How does a smoke detector work?
A2: The infrared beam of the infrared emission tube is dispersed by the smoke particles, and the intensity of the scattered light is proportional to the smoke concentration. Therefore, the intensity of the infrared beam received by the photosensitive tube will change, and it will be converted into a point signal, which will eventually become an alarm signal.
Q3: What does a smoke detector do?
A3: Smoke detectors assemble sensors, control assemblies, and alarm notifications. Therefore, this is a collection of multi-functional detector in one, is the most suitable for residential. Once the smoke detector is triggered, the device sends a signal to the audio-visual notification device, which will issue an alarm. Inside the smoke detector, you'll find a power source and a built-in sensor that can react to the smoke in different ways.
Tips: How to install a 4 in 1 smoke detector?
- Find the best location for the installation of the smoke alarm detector and find out the location of hidden pipes and cables, avoiding drilling holes there.
- Remove the smoke detector cover and install the battery as needed.
- Fix the rear cover chassis of the smoke alarm on the wall or ceiling, and mark the screw points with a sharp cone or a nail through hole.
- Drill holes and install screws and bolts.
- Screw the smoke alarm into place and start testing.
