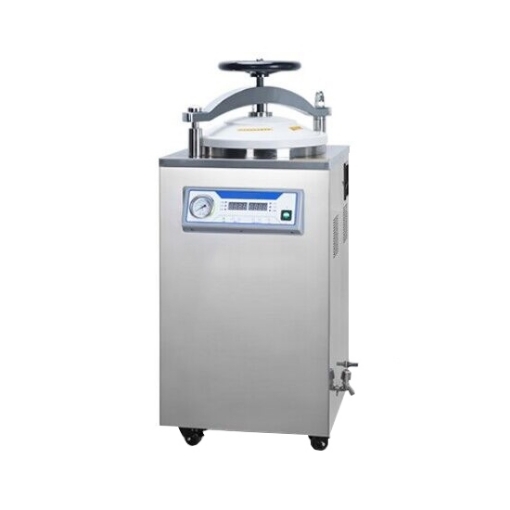

This vertical steam sterilizer is easy to operate and widely used in laboratories, medical facilities, research institutes, and pharmaceutical manufacturing. Featuring a handwheel sliding door and rollers for one-person operation, it offers practical functions, ensuring efficient sterilization of instruments, glassware, and media.
Durable 304 Stainless Steel Construction for Long-Lasting Performance
- Made of 304 stainless steel, the vertical steam sterilizer is corrosion-resistant, withstands high temperatures, and is easy to clean.

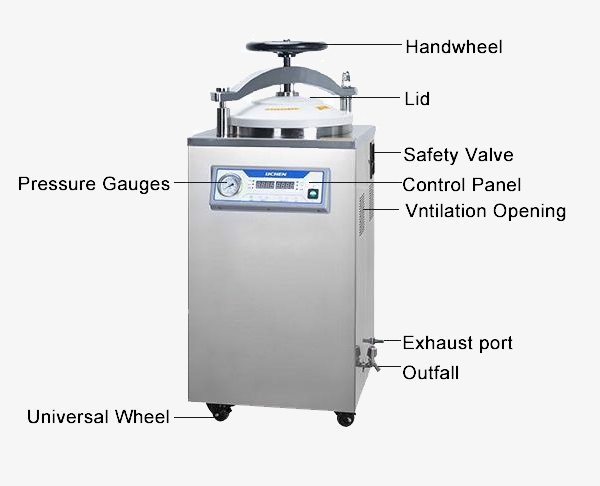

- The operation panel features a multi-parameter display with a pressure gauge for clear observation.
Safety and Control Mechanisms of the Vertical Sterilizer

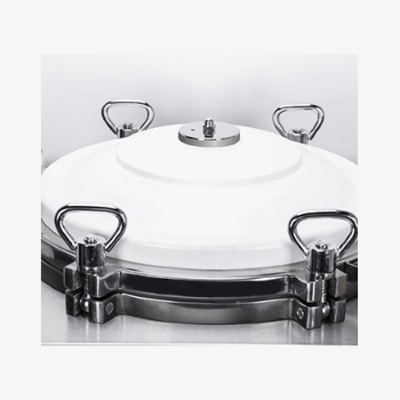

- The vertical steam sterilizer features a reinforced iron flange lid opening mechanism, which is securely fixed in all directions to ensure enhanced safety.
- SISCO vertical steam sterilizer is equipped with microcomputer control, LED digital display, PID function, and self-tuning heating parameters for fast and precise temperature control.
Applications
The vertical steam sterilizer is widely used in laboratories, medical facilities, and pharmaceutical manufacturing for sterilizing instruments, glassware, and media. With advanced temperature control and safety features, it ensures effective disinfection, preventing contamination in clinical, industrial, and research environments.
Research Field
Food Processing
Environmental Engineering
Clinical Institutions
| Model | SISCO-DGL-35B | SISCO-DGL-50B | SISCO-DGL-75B | SISCO-DGL-100B |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220V, 50HZ | |||
| Rated working pressure | 0.22Mpa | |||
| Rated working temperature | 134℃ | |||
| Sterlization temperature setting range | 50℃~134℃ | |||
| Sterilization time setting range | 4~120 min | |||
| Chamber volume | Ø 350×400 | Ø 350×525 | Ø 400×625 | Ø 450×650 |
| Bucket dimension | Ø 330×320 | Ø 330×480 | Ø 380×540 | Ø 430×550 |
| Basket dimension | Ø 320×350 | Ø 320×240×2 | Ø 360×280×2 | Ø 410×300×2 |
| Outer dimension | 480×480×1020 | 480×480×1050 | 525×525×1200 | 555×555×1250 |
| Packing size(L×W×H) | 580×630×1130 | 580×630×1230 | 630×680×1290 | 690×650×1410 |
| Gross/net weight | 79/58KG | 106/80KG | 120/90KG | 133/106KG |

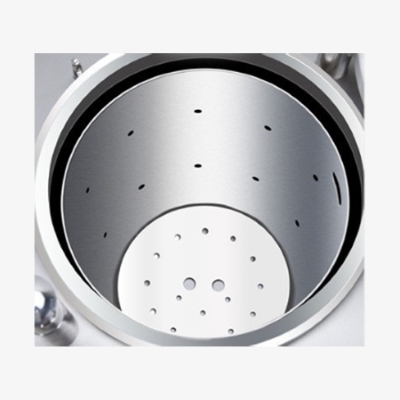

Details
.jpg)
Q1: What is a table top steam sterilizer?
A1: A table top steam sterilizer is a compact device that uses pressurized steam at high temperatures to sterilize instruments and tools, eliminating harmful microorganisms. It's commonly used in healthcare, laboratories, and dental clinics, offering efficient, space-saving sterilization with user-friendly controls and safety features.
Q2: Which materials should not be sterilized?
A2: Oils, waxes, plastic, rubber, or electronic components, flammable materials, radioactive materials, andsamples containing solvents, substances that can release harmful fumes when exposed to high heat should also be avoided.
Q3: What is the difference between an autoclave and a sterilizer?
A3: An autoclave is a specific type of sterilizer that uses steam and pressure to kill germs. A sterilizer is any device that kills germs, and it can use steam, heat, chemicals, or other methods. So, all autoclaves are sterilizers, but not all sterilizers are autoclaves.
Tips: What items should be sterilized?
Items that must be steam sterilized include medical instruments, surgical tools, laboratory equipment, and other heat-resistant items that require sterilization to ensure hygiene and prevent contamination. It is also suitable for items made of stainless steel, glass, and certain plastics that can withstand high temperatures.
