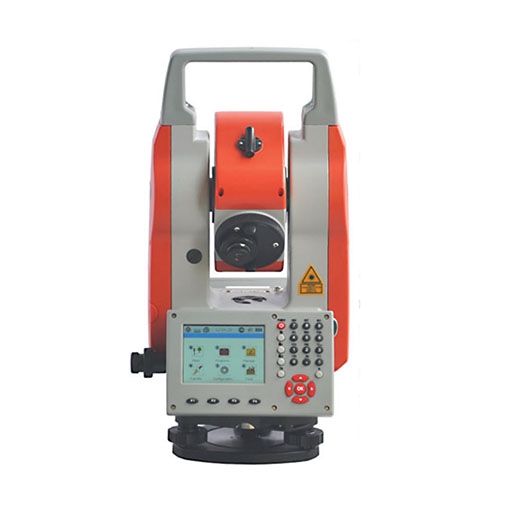

Buy a cheap total station designed for engineering projects, land surveys, construction, and topography. With its high accuracy and dual display feature, it is the ideal choice for precise surveying tasks, capable of reflectorless measurements up to 600 meters.

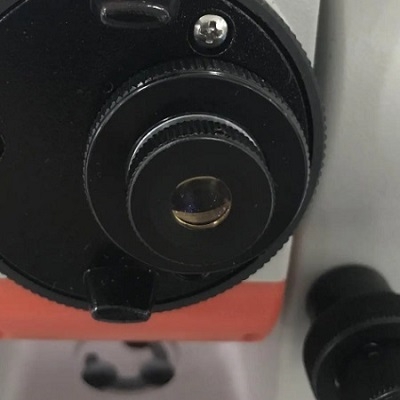

Total station has a 30X Objective
- Magnify 30X clear and bright. Effective aperture 48mm.
- Laser plummet for options. Absolute angle encoder system.
- Eyepiece. The DUT can be fine-tuned and more accurate.
- Locking screw. Horizontal and vertical spirals, fine-tuning is more accurate.
- Reflectorless. Pointing directly at the target point makes it more convenient to find the target.
Total station with double LCD display
- Large screen with a time display. High-brightness background lighting.
- On-board software and memory. Use the powerful onboard software to measure offsets, missing lines, resection, or quickly generate a map.

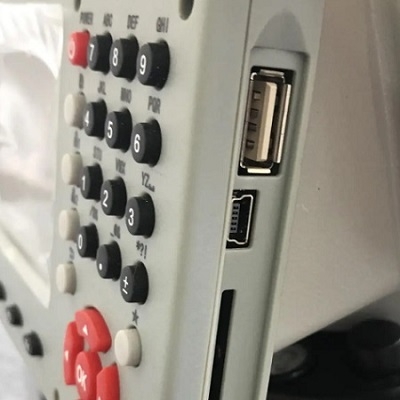

- Data output. You'll never need to worry about losing critical information, since the large internal memory stores up to 40,000 points, that can be uploaded or transferred through the RS-232 data port or USB.
- Keyboard. All English numbers. The operation is simple.
Applications
A total station is a versatile and highly precise surveying instrument that integrates an electronic theodolite with an electronic distance meter (EDM) to measure angles and distances simultaneously. SISCO total stations are used in various surveying and engineering applications, including land surveying, construction, road and rail alignment, topographic surveying, geodetic surveys, mining and tunneling, utilities and infrastructure, mapping, GIS, bridge and dam construction, and agricultural land management.
Topographic Surveying
Civil Engineering
Geodetic Surveying
Construction Layout
Â
| Model | SISCO-TS-ZTM952 | |
| Distance | Single prism | 3000m |
| Three prism | 5000m | |
| Reflectorless | 600m | |
| Minimum display | 1mm under fine measurement mode 10mm under track mode |
|
| Accuracy | ±(3mm+2ppmxD) | |
| Measuring time | 1s under fine measurement mode 0.8s under track mode |
|
| Angle | Encoder system | Absolutely encoding system |
| Mini reading | 1"/5"/10" | |
| Accuracy | 2" | |
| Telescope | Length | 170mm |
| lmage | Erect | |
| Magnification | 30X | |
| Effective aperture | Ø48mm | |
| Resolving power | 3.5" | |
| Field of view | 1° 30' | |
| Mini focus | 1.5m | |
| Compensator | Type | Single-axis liquid/double-axis photoelectric tilt sensor |
| Range | ±3' | |
| Level sensitivity | Tubular level | 30"/2mm |
| Circular level | 8'/2mm | |
| Plummet (optical or laser plummet) |
lmage | erect |
| Magnification | 3X | |
| Focus range | 0.5m~∞ | |
| Data output (RS-232/USB) |
Port | Bluetooth, SD card, USB, RS-232C |
| Capacity | 40,000 data at least | |
| Display | LCD | Double sides 320x240 |
| lumination | yes | |
| Power supply | Battery | Rechargeable lithium battery DC7.4V 3600mAh |
| Operating time | 4 hours at least | |
| Operating temperature | -20°C~+50°C | |
| Weight | 6.8kg | |
Â
Packing List:
- 1x Total station
- 2x Battery pack
- 1x Charger
- 1x Data cable
- 1x Operating manual
- 1x CD
Q1: What is a total station?
A1: A total station is a surveying instrument that combines an electronic theodolite with an electronic distance meter (EDM) and a microprocessor to measure angles, distances, and elevations with high accuracy. It is used in construction, land surveying, and other geospatial measurements.
Q2: How does a total station work?
A2: A total station works by measuring the angle between two points and the distance to the target point using a laser or infrared beam. The device's microprocessor calculates the precise coordinates of the target point, which can be stored and used for further analysis.
Q3: What are the main components of a total station?
A total station is a sophisticated surveying instrument that integrates various components to measure angles, distances, and elevations accurately. Here are the main components of a total station.
- Electronic Theodolite: Measures horizontal and vertical angles.
- Electronic Distance Meter (EDM): Measures distances using a laser or infrared signal.
- Microprocessor: Processes data and performs calculations.
- Display and Interface: Shows measurements and allows user input.
- Optical or Laser Plummet: Assists in centering the instrument over a point.
Tips: How to set up total station?
- Choose a stable location.
- Set up and secure the tripod.
- Mount and roughly level the total station.
- Precisely level using the leveling screws.
- Center over the survey point using the optical/laser plummet.
- Zero the horizontal circle.
- Turn on and check the instrument.
- Enter project details and configure settings.
- Aim, measure, and record data.
