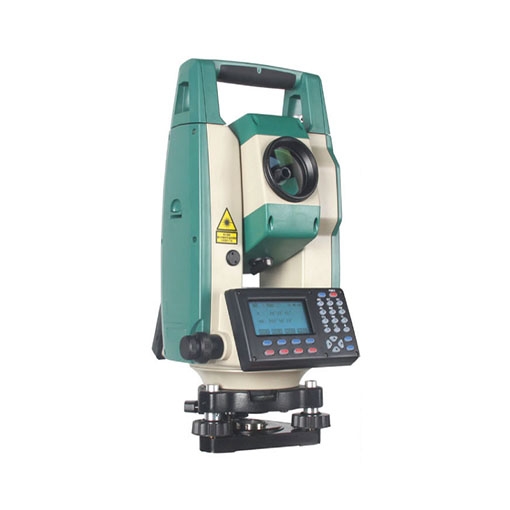

SISCO total station instrument is available for sale at a low cost. It features reflectorless ranging up to 1000 meters, high precision ranging, laser pointing, a waterproof and dustproof design, and fast USB communication, making it ideal for construction projects.

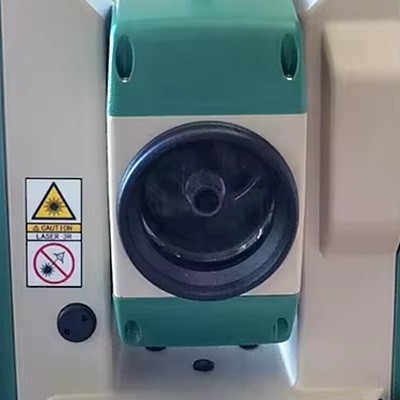

Total station has a 30X Objective
- Magnify 30X clear and bright. Effective aperture 48mm.
- Laser plummet for options. Absolute angle encoder system.
- Eyepiece. The DUT can be fine-tuned and more accurate.
- Locking screw. Horizontal and vertical spirals, fine-tuning is more accurate.
- Reflectorless. Pointing directly at the target point makes it more convenient to find the target.
Total station with double LCD display
- Large screen with a time display. High-brightness background lighting.
- On-board software and memory. Use the powerful onboard software to measure offsets, missing lines, resection, or quickly generate a map.
- Data output. You'll never need to worry about losing critical information, since the large internal memory stores up to 40,000 points, that can be uploaded or transferred through the RS-232 data port or USB.

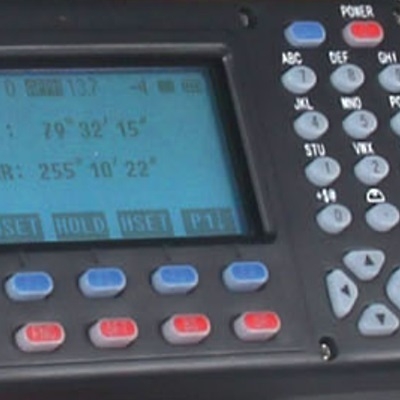

- Keyboard. All English numbers. The operation is simple.
Applications
A total station is a versatile and highly precise surveying instrument that integrates an electronic theodolite with an electronic distance meter (EDM) to measure angles and distances simultaneously. SISCO total stations are used in various surveying and engineering applications, including land surveying, construction, road and rail alignment, topographic surveying, geodetic surveys, mining and tunneling, utilities and infrastructure, mapping, GIS, bridge and dam construction, and agricultural land management.
Topographic Surveying
Civil Engineering
Geodetic Surveying
Construction Layout
Â
| Model | SISCO-TS-M4i | |
| Measuring Range | Single prism | 5.0km |
| Three prism | 8-10km | |
| Reflectorless | 1000m | |
| Accuracy | With prism: ±(2mm+2ppmxD), Without prism: ±(3mm+2ppmxD) |
|
| Measuring time | Tracking 0.1s, Fine 0.3s(optimal) | |
| Atmospheric Correction | Automatic Correction by inputting Parameter | |
| Prism Constant | Automatic Correction by inputting Parameter | |
| Angle Measurement | Measuring method | Absolutely encoding system |
| Mini reading | 1"/5" optional | |
| Accuracy | 2" | |
| Detection method | Horizontal: four sensors; Vertical: four sensors |
|
| Telescope | Length | 154mm |
| lmage | Erect | |
| Magnification | 30X | |
| Effective aperture | Ø45mm | |
| Resolving power | 3" | |
| Field of view | 1° 30' | |
| Mini focus | 1m | |
| Compensator | System | Dual axis liquid-electric |
| Working Range | ±3' | |
| Accuracy | 1" | |
| Sensitivity of Vials | Plate Vial | 30"/2mm |
| Circular level | 8'/2mm | |
| Laser Plummet | yes | |
| Data Storage and Communication | Internal Memory | 4M/40000 points |
| Communication Port | USB | |
| Display | Type | Dual sides, 6 lines, black and white |
| Battery | Power Supply | 7.4V DC Rechargeable battery(3100mAH) |
| Operating time | 10 hours | |
| Operating temperature | -20°C~+50°C | |
| Water protection | IP66 (IEC60529) | |
| Weight | 5.7kg | |
Q1: What is a total station?
A1: A total station is a surveying instrument that combines an electronic theodolite with an electronic distance meter (EDM) and a microprocessor to measure angles, distances, and elevations with high accuracy. It is used in construction, land surveying, and other geospatial measurements.
Q2: How does a total station work?
A2: A total station works by measuring the angle between two points and the distance to the target point using a laser or infrared beam. The device's microprocessor calculates the precise coordinates of the target point, which can be stored and used for further analysis.
Q3: What are the main components of a total station?
A total station is a sophisticated surveying instrument that integrates various components to measure angles, distances, and elevations accurately. Here are the main components of a total station.
- Electronic Theodolite: Measures horizontal and vertical angles.
- Electronic Distance Meter (EDM): Measures distances using a laser or infrared signal.
- Microprocessor: Processes data and performs calculations.
- Display and Interface: Shows measurements and allows user input.
- Optical or Laser Plummet: Assists in centering the instrument over a point.
Tips: What is the difference between theodolite and total station?
A theodolite and a total station are both instruments used in surveying, but they have some key differences:
Functionality
- Theodolite: Primarily measures horizontal and vertical angles. It requires additional equipment to measure distances.
- Total Station: Combines the functions of a theodolite with an electronic distance meter (EDM) to measure angles and distances simultaneously.
Data Handling
- Theodolite: Manual recording and calculation of measurements are needed.
- Total Station: Capable of electronic data recording and often includes software for on-site calculations and data storage.
Applications
- Theodolite: Used mainly for angle measurements in various surveying tasks.
- Total Station: Widely used in complex surveying and construction tasks due to its integrated capabilities of measuring angles, distances, and often, even elevations.
