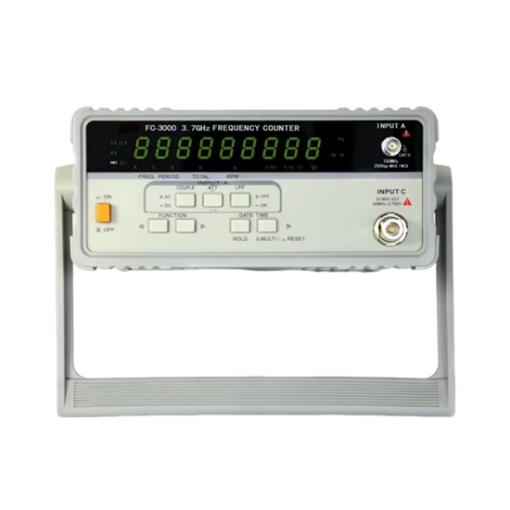

SISCO frequency counter's high accuracy, sensitivity and versatility make it a very valuable tool for scientists, engineers, experimenters and communications technicians. Its light weight and compact size make it ideal for use by the hobbyist or field technician.

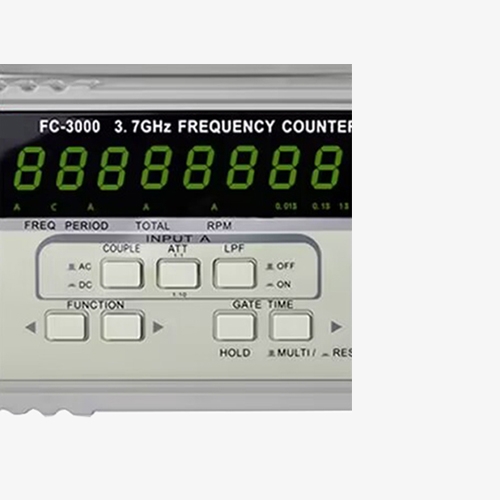

Multi-Function LCD Frequency Counter with High Resolution and Data Saving
- 9-digit LED display, 0.01mHz resolution/second (external reference signal).
- Data saving function: The LCD frequency counter is equipped with a data saving function, which can save the measurement results for users to conduct subsequent analysis and recording.
- Period, Total and Speed measurement functions: These functions expand the application range of the instrument, making it not only used for frequency measurement, but also for analyzing the periodicity of signals.
Self-Check and Filter Options Frequency Counter
- Built-in low-pass filter AC/DC coupling function optional: Low-pass filter that can filter out high-frequency noise. In addition, users can choose AC or DC coupling mode to meet different types of signal measurement needs.
- Self-check function: The freq counter has a built-in self-check function, which can automatically perform a system check at startup to ensure that all functions and components are working properly.
Wide Frequency Range with 10:1 Input Attenuation
- Frequency measurement range: A input: 0.1H-100MHz; C input: 80MHz-3.7GHz A input.
- 10:1 input attenuation: Effectively reduce the impact of high-amplitude signals on measurement results and protect the instrument input stage from damage by high-voltage signals.
Applications
SISCO frequency counters are widely used in general testing in R&D laboratories, quality control and inspection, device or circuit characterization and fault diagnosis, educational experiments, and production automation testing. In R&D and education, they help with signal measurement and analysis; in quality control, they ensure products meet standards; in fault diagnosis, they quickly identify issues; and in production, they monitor parameters in real-time to ensure production efficiency and product quality.
Comm. & Elec. Engineering
Research and Laboratory
Aerospace
Industry and Manufacturing
| Model | SISCO-FC3000 |
| Input A | |
| Frequency Range | 0.1Hz - 100MHz(DC coupled) 30Hz-100MHz (AC coupled) |
| Sensitivity | 0.1Hz to 100MHz: 30mV |
| Coupling | AC or DC selectable |
| Impedance | 1MΩ resistance, shunted by <40pF |
| Attenuator | X1 or X10 switch selectable |
| Low Pass Filter | -3dB point of 100KHz, switch selectable |
| Accuracy | ±Time base error ± resolution |
| Period Range | 10ns to 10s |
| Display | n. u. m., sec with decimal point |
| Total Range | DC to 30MHz |
| Capacity | 0 - 999 999 999 |
| Over Flow | OF |
| RPM Range | 6 to 600X107 RPM |

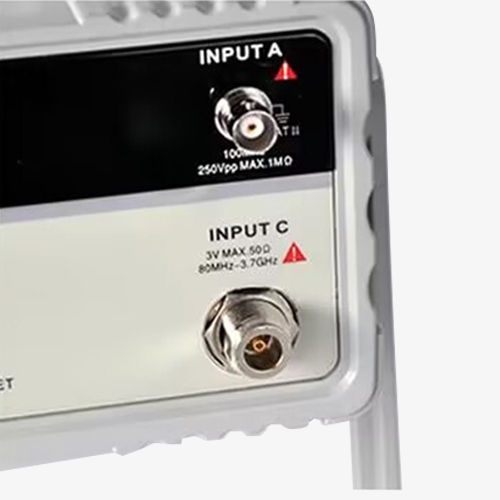

| Input C | |
| Frequency Range | 80MHz to 3.7GHz |
| Sensitivity | 10mVrms: 80MHz to 2.0GHz 20mVrms: 2.0GHz to 3.0GHz 35mVrms: 3.0GHz to 3.2GHz 40mVrms: 3.2GHz to 3.5GHz 70mVrms: 3.5GHz to 3.7GHz |
| Coupling | AC only |
| Impedance | 50Ω ± 5% |
| Max Input Level | 3Vrms sine wave |
| Time Base | |
| Type | TCO(temperature controlled oscillator) |
| Frequency | 10.000000MHz |
| Stability | ±1PPM(±1 count) |
| Line Voltage Stability | less than ± 1PPM with ±10% line voltage variation |
| Temperature Stability | ± PPM from 0℃ to 50℃ |
| Max Aging Rate | ±PPM/year |
| INT.STD.OUT | 10MHz(internal standard frequency output) |
| Level | ＞1Vpp |
| Impedance | 600Ω |
| Display | |
| Display | 9 digit LED with 56 M/n, K/u, Hz, m, Sec, G.T, Hold, and “OF” indicators |
| Gate Time | ＜10ms: between 0.9 and 9mS |
| ＜0.1s: between 9 and 90mS | |
| ＜1s: between 90 and 900mS | |
| ＜10s: between 0.9 and 9S | |
| Dimension and Weight | |
| Dimension | 260*395*100mm |
| Weight | 4kg |

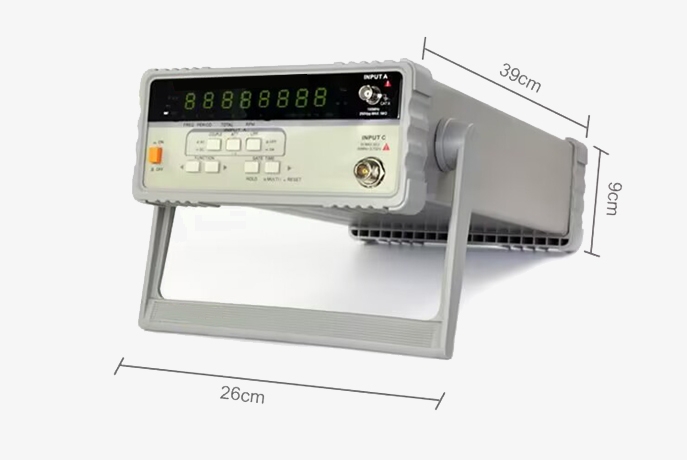

Dimensions (cm)

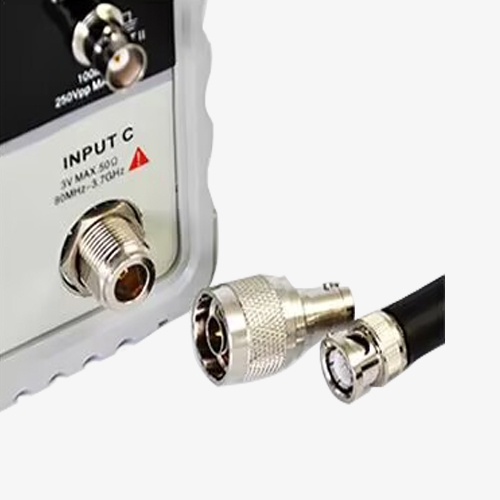

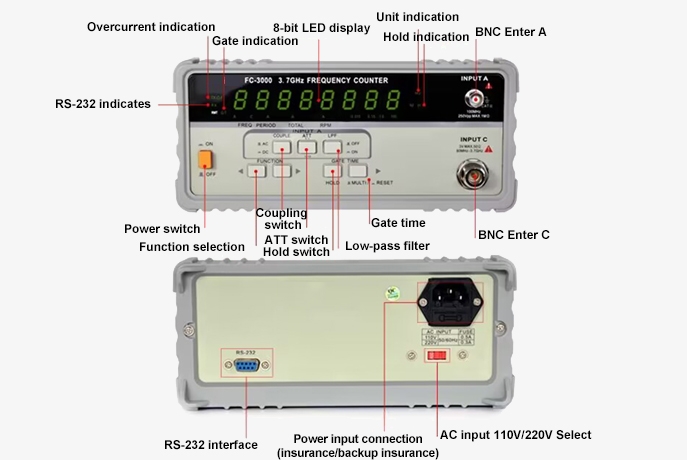

Details
Packing List

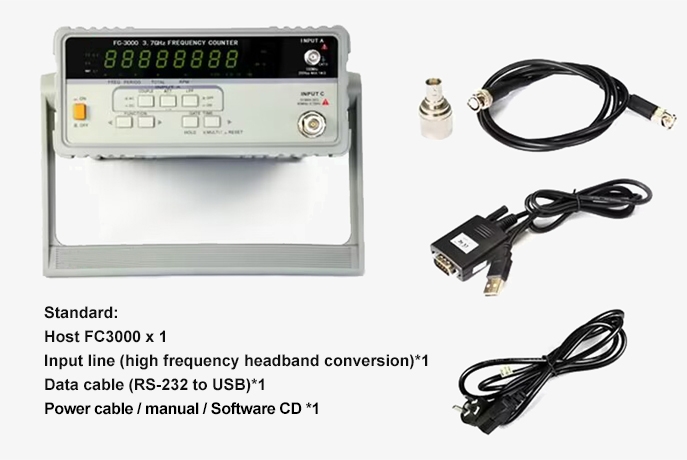

- 1 x Frequency counter
- 1 x Input line
- 1 x Data cable
- 1 x Power cable/User manual/Software CD
LCD Display Frequency Counter User ManualQ1: What factor most affects the accuracy of a frequency counter?
A1: The factor that most affects the accuracy of a frequency counter is the quality and stability of the time base oscillator. The time base oscillator provides the reference frequency against which the input signal is measured. High-quality oscillators, such as temperature-compensated crystal oscillators (TCXOs) or oven-controlled crystal oscillators (OCXOs), offer better stability, thus providing higher measurement accuracy. Additionally, the aging effect of the oscillator, as well as phase noise and jitter, can also impact measurement accuracy. Regular calibration of the frequency counter to compensate for any drift in the oscillator frequency is crucial for maintaining high accuracy.
Q2: What is the gate time of a frequency counter?
A2: The gate time of a frequency counter is the duration during which the instrument counts the number of cycles of the input signal to determine its frequency. Essentially, it defines the time interval over which the measurement is averaged, directly impacting both the resolution and accuracy of the measurement. A longer gate time results in higher resolution and more accurate frequency measurements, as it averages out short-term fluctuations and noise in the signal. However, it also means that measurements take longer to complete. Conversely, a shorter gate time allows for faster measurements but with lower resolution and potentially higher uncertainty. The choice of gate time is often a trade-off between the desired measurement accuracy and the required speed of measurement.
Q3: What types of signals can a frequency counter measure?
A3: A frequency counter can measure various types of signals, including sine waves, square waves, pulse trains, and other periodic waveforms. It is capable of measuring both analog and digital signals, making it versatile for applications in different fields. The counter can handle a wide range of frequencies, from very low frequencies (in the hertz range) to very high frequencies (in the gigahertz range), depending on the specific model and its input capabilities. Additionally, advanced frequency counters can measure parameters such as signal period, total event counts, and even the rotational speed of mechanical systems when equipped with the appropriate sensors. This versatility allows frequency counters to be used in telecommunications, electronics, industrial automation, and scientific research.
Tips: How to calculate a frequency counter?
To calculate the frequency of a signal using a frequency counter, follow these steps:
1. Set Up the Frequency Counter: Connect the input signal to the frequency counter and select the appropriate input range and mode for the type of signal being measured.
2. Choose the Gate Time: Select the gate time (or integration time) on the frequency counter. This is the duration over which the counter will measure the number of cycles of the signal. Longer gate times provide higher accuracy but take more time to measure.
3. Start the Measurement: Initiate the measurement process. The frequency counter will begin counting the number of cycles or events of the input signal during the gate time.
4. Calculate the Frequency: The frequency counter computes the frequency using the formula:
Frequency = Number of Cycles / Gate Time
Here, "Number of Cycles" is the count of signal cycles detected during the gate time, and "Gate Time" is the duration for which the counting occurred.
5. Display the Result: The frequency counter will display the calculated frequency, often in hertz (Hz), on its screen.
For example, if a frequency counter counts 10,000 cycles over a gate time of 1 second, the calculated frequency is:
Frequency = 10,000/1 = 10,000Hz or 10 kHz
This process allows the frequency counter to provide an accurate measurement of the signal's frequency based on the counted cycles and the specified gate time.
