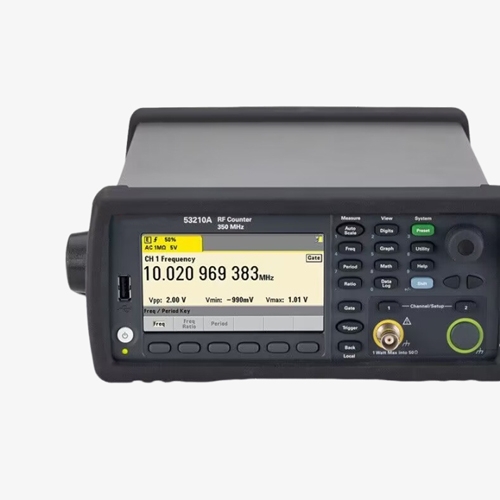

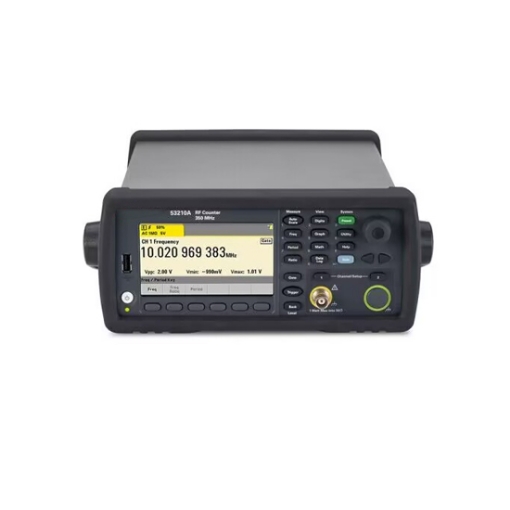

SISCO frequency counter's high accuracy, sensitivity and versatility make it a very valuable tool for scientists, engineers, experimenters and communications technicians. Its light weight and compact size make it ideal for use by the hobbyist or field technician.
Versatile Frequency Counter with High-Speed, High-Resolution Measurement
- 350 MHz standard capacity with selectable 6GHz or 15GHz microwave measurement channel.
- 12 digits/sec and 20 ps single-shot time resolution.
- Up to 75,000 and 90,000 readings/sec (frequency and time interval).
Comprehensive Frequency Counter with Advanced Data Analysis and Storage Features
- Built-in math analysis and statistics.
- 1M reading memory and USB flash storage.

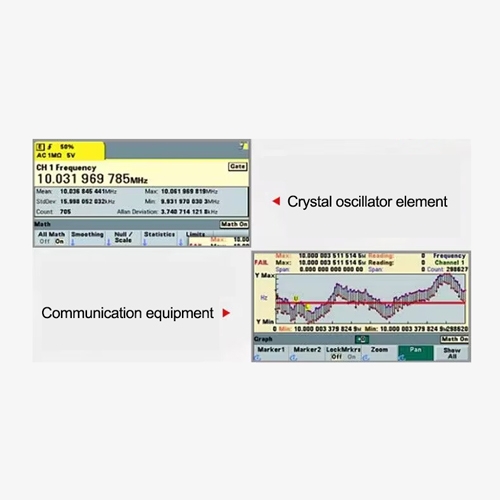

- Datalog Trend Plot: User can see how data changes over time visually, helping to identify fluctuations and patterns for forecasting and decision-making.
- Cumulative Histogram: Shows the cumulative frequency distribution of a dataset, making it easy to understand the overall distribution and central tendencies.
Frequency Counter with Flexible Interfaces and On-Site Battery Support

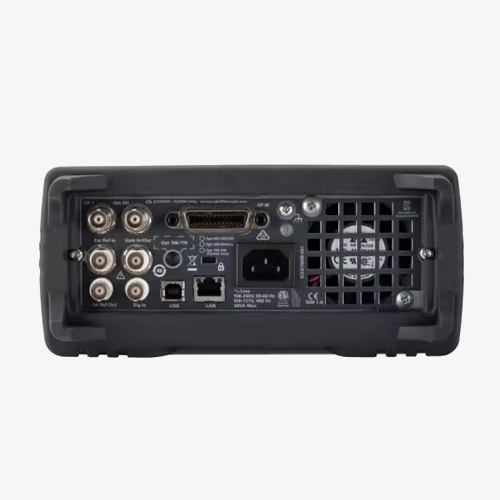

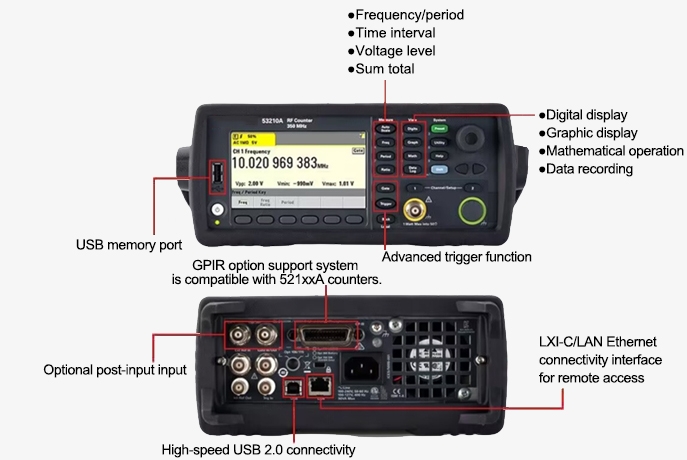

- FLXI-C/Ethernet LAN, USB: ensuring flexible and reliable data communication and integration with various systems.
- Available GPIB Interface: allowing seamless connection with other GPIB-compatible instruments for enhanced interoperability in testing environments.
- Accurate battery selection, convenient for on-site testing, which is help to optimize performance and ensure reliable results in field operations.
Applications
SISCO frequency counters are widely used in general testing in R&D laboratories, quality control and inspection, device or circuit characterization and fault diagnosis, educational experiments, and production automation testing. In R&D and education, they help with signal measurement and analysis; in quality control, they ensure products meet standards; in fault diagnosis, they quickly identify issues; and in production, they monitor parameters in real-time to ensure production efficiency and product quality.
Comm. & Elec. Engineering
Research and Laboratory
Aerospace
Industry and Manufacturing
| Model | SISCO-FC-53210A |
| Channels | Ch 1 or optional Ch 2 |
| Digits/s | 10 digits/s |
| Maximum Display Resolution | 12 digits |
| Measurement Technique | Reciprocal |
| Signal Type | Continuous Wave (CW) |
| Level & Slope | Automatically preset or user selectable |
| Gate | Internal or externa |
| Gate Time | 1 ms to 1000s in 10 µs steps |
| Advanced Gating | N/A |
| FM Tolerance | ±50% |
| Frequency, Period | |
| Range | DC (1 MHz) to 350 MHz (2.8 ns to 1000 s) |
| Microwave Input (optional) | Option 106 - 100 MHz to 6 GHz (166 ps to 10 ns) Option 115 - 300 MHz to 15 GHz (66 ps to 3.3 ns) |
| Frequency Ratio | |
| Range | 1015 Displayable range |
| Dimensions | |
| Bench Dimensions | 261.1 mm (W) x 103.8 mm (H) x 303.2 mm (D) |
| Rack Mount Dimensions | 212.8 mm (W) x 88.3 mm (H) x 272.3 mm (D) (2U x 1/2 width) |
| Weight | 3.9 kg (8.6 lbs) fully optioned 3.1 kg (6.9 lbs) without Option 300 (battery option) |

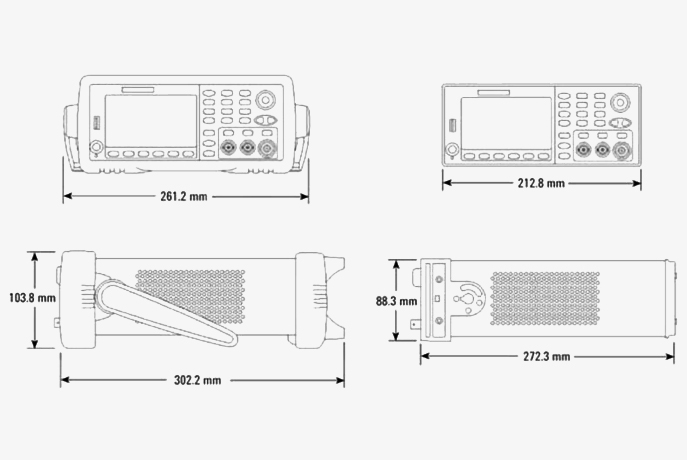

Dimensions (mm)
Details

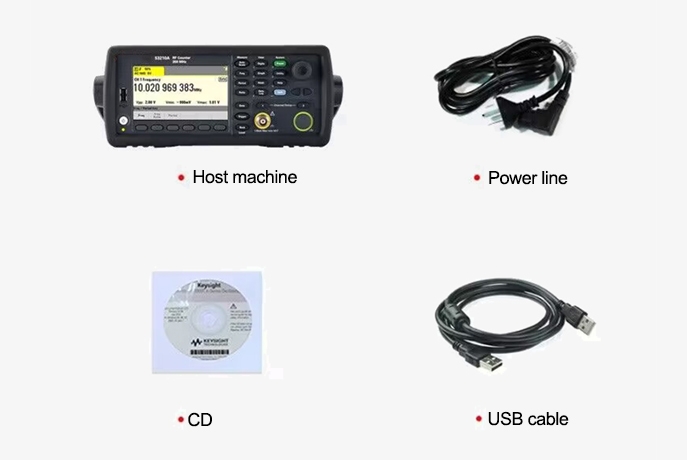

Packing List
- 1 x Frequency counter
- 1 x Power line
- 1 x USB Data cable
- 1 x Software CD
Q1: What factor most affects the accuracy of a frequency counter?
A1: The factor that most affects the accuracy of a frequency counter is the quality and stability of the time base oscillator. The time base oscillator provides the reference frequency against which the input signal is measured. High-quality oscillators, such as temperature-compensated crystal oscillators (TCXOs) or oven-controlled crystal oscillators (OCXOs), offer better stability, thus providing higher measurement accuracy. Additionally, the aging effect of the oscillator, as well as phase noise and jitter, can also impact measurement accuracy. Regular calibration of the frequency counter to compensate for any drift in the oscillator frequency is crucial for maintaining high accuracy.
Q2: What is the gate time of a frequency counter?
A2: The gate time of a frequency counter is the duration during which the instrument counts the number of cycles of the input signal to determine its frequency. Essentially, it defines the time interval over which the measurement is averaged, directly impacting both the resolution and accuracy of the measurement. A longer gate time results in higher resolution and more accurate frequency measurements, as it averages out short-term fluctuations and noise in the signal. However, it also means that measurements take longer to complete. Conversely, a shorter gate time allows for faster measurements but with lower resolution and potentially higher uncertainty. The choice of gate time is often a trade-off between the desired measurement accuracy and the required speed of measurement.
Q3: What types of signals can a frequency counter measure?
A3: A frequency counter can measure various types of signals, including sine waves, square waves, pulse trains, and other periodic waveforms. It is capable of measuring both analog and digital signals, making it versatile for applications in different fields. The counter can handle a wide range of frequencies, from very low frequencies (in the hertz range) to very high frequencies (in the gigahertz range), depending on the specific model and its input capabilities. Additionally, advanced frequency counters can measure parameters such as signal period, total event counts, and even the rotational speed of mechanical systems when equipped with the appropriate sensors. This versatility allows frequency counters to be used in telecommunications, electronics, industrial automation, and scientific research.
Tips: How to calculate a frequency counter?
To calculate the frequency of a signal using a frequency counter, follow these steps:
1. Set Up the Frequency Counter: Connect the input signal to the frequency counter and select the appropriate input range and mode for the type of signal being measured.
2. Choose the Gate Time: Select the gate time (or integration time) on the frequency counter. This is the duration over which the counter will measure the number of cycles of the signal. Longer gate times provide higher accuracy but take more time to measure.
3. Start the Measurement: Initiate the measurement process. The frequency counter will begin counting the number of cycles or events of the input signal during the gate time.
4. Calculate the Frequency: The frequency counter computes the frequency using the formula:
Frequency = Number of Cycles / Gate Time
Here, "Number of Cycles" is the count of signal cycles detected during the gate time, and "Gate Time" is the duration for which the counting occurred.
5. Display the Result: The frequency counter will display the calculated frequency, often in hertz (Hz), on its screen.
For example, if a frequency counter counts 10,000 cycles over a gate time of 1 second, the calculated frequency is:
Frequency = 10,000/1 = 10,000Hz or 10 kHz
This process allows the frequency counter to provide an accurate measurement of the signal's frequency based on the counted cycles and the specified gate time.
