The portable sulfur hexafluoride gas detector is designed for accurate and responsive leak detection with customizable ranges from 0 to 1000 ppm, 0 to 2000 ppm, and 0 to 3000 ppm. The 1 ppm resolution ensures precise readings, making it an essential tool for those working in environments where SF6 gas exposure is a concern.
Gas detectors can detect sulfur hexafluoride quickly

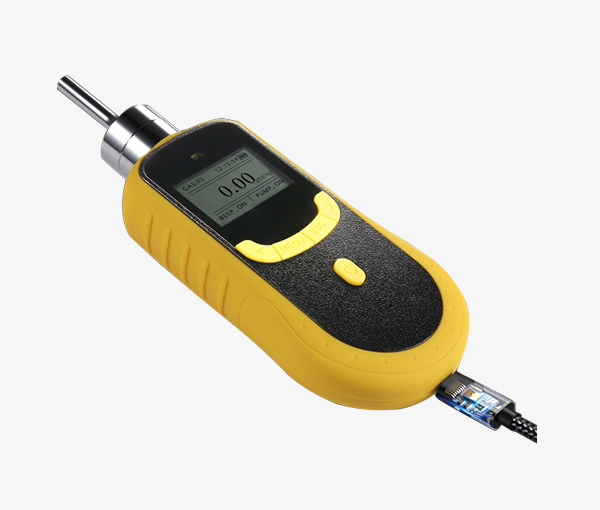

- SISCO handheld sulfur hexafluoride gas detector has an LCD dot matrix display to read the gas type, unit, concentration, local time, etc. directly.
- English/Chinese operations are supported.
- Gas concentration unit PPM and mg/m3 can be shifted quickly.
- Built-in micro-sampling pump, 10 grades of suction are available.
Explosion-proof certification.
USB interface to transfer data at high speed
- The handheld sulfur hexafluoride (SF6) can download and print the stored data (optional).
- There is no need for personnel to record data in real-time manually, and the data is automatically stored in the instrument.
- Historical data can be viewed on the instrument or downloaded to a computer.
- USB interface, fast and convenient charging.

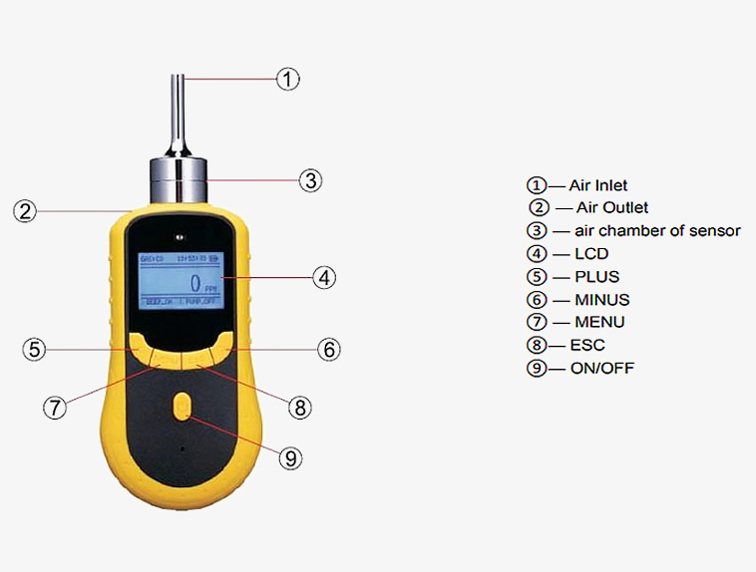

Details
Applications
The sulfur hexafluoride (SF6) gas detector is used to monitor SF6 gas concentrations in electrical substations and other high-voltage equipment. It ensures safety and compliance by detecting leaks and preventing potential hazards associated with SF6 gas.
Â
| Model | GD200-SF6 |
| Sampling Method | Pumping suction, flow rate can be up to 750ml/min |
| Detection Principle | Infrared |
| Gas | Sulfur Hexafluoride (SF6) |
| Range (Optional)* | 0 to 1000ppm, 0 to 2000ppm, 0 to 3000ppm |
| Resolution | 1ppm |
| Accuracy | ≤±3% F.S. |
| Response Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Data Logging (Optional Function) | High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.) |
| Alarms | Sound, light and vibration |
| Display | LCD dot matrix display |
| Language | Chinese/English |
| Battery | 3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug) |
| Operating Time | 100h (Pump off) |
| Communication | Mini USB interface supports standard MODBUS communication protocol |
| Explosion-proof Grade | â…¡ 2G Ex ia â…¡ CT4 Ga |
| Case Material | ABS+PC |
| Protection Grade | IP66 |
| Certification | CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014) |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Operating Pressure | 0.8~1.2bar |
| Dimension | 205*75*32mm |
| Weight | 300g |
| Warranty | 12 months |
| Extension Probe | About 480mm (Total Length), About 300mm (Probe Head) |
| Accessories (Optional) | Calibration kit - gas pressure regulator (calibration gas cylinder NOT included)
|
Note:
* If you need a sulfur hexafluoride gas detector with other measuring ranges unlisted in the above table, please inform us of your operating environment to help you choose an appropriate one for your application.
* Other portable gas detectors are also provided, you can refer to SISCO Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.
Gas Detector Catalog & User Manual
SISCOÂ Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500Â Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Portable Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
Q1:Â What is a gas detector?
A1:Â A gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, handheld gas detector, fixed gas detector, online gas detector, etc.
Q2:Â What does a gas detector detect?
A2:Â Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3:Â What is ppm of gas detector?
A3:Â Parts per million or "ppm" is often used as a fractional measure of concentration. For example, a methane (molecular) concentration of 2% means that 2 out of every 100 air molecules are methane. Likewise, a methane concentration of 2 ppm means that 2 out of every 1 million air molecules are methane.
Tip: How does a sulfur hexafluoride (SF6) gas detector work?
A sulfur hexafluoride (SF6) gas detector works by using specialized sensors, such as infrared or electrochemical sensors, to detect the presence and concentration of SF6 gas in the air. These sensors are sensitive to the unique properties of SF6, allowing the device to provide accurate, real-time measurements. When a leak is detected, the detector will sound an alarm, helping prevent potential hazards in environments such as electrical substations or high-voltage equipment.
