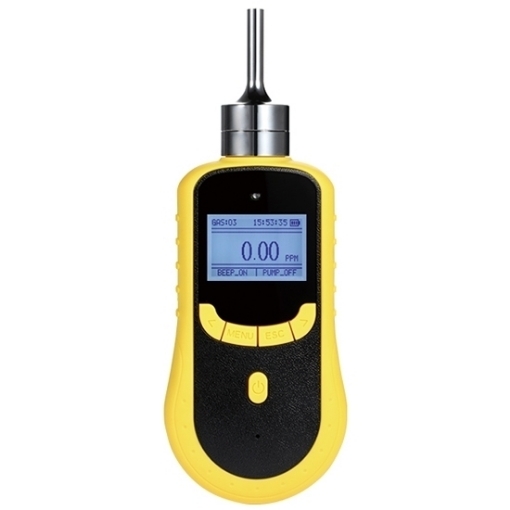

This portable benzene (C6H6) gas detector combines convenience with advanced technology. It offers a wide range of detection options, from 0 to 10000 ppm, allowing you to tailor it to your specific needs. Ideal for industrial and commercial use, this detector offers reliability you can count on, providing real-time readings that help safeguard your team and ensure workplace safety.
Gas detectors can detect benzene (C6H6) quickly
- SISCO handheld benzene gas detector has an LCD dot matrix display to directly read out the gas type, unit, concentration, local time, etc.
- English/Chinese operations are supported.
- Gas concentration unit PPM and mg/m3 can be shifted quickly.
- Built-in micro-sampling pump, 10 grades of suction are available.
Explosion-proof certification.
USB interface to transfer data at high speed
- The portable benzene gas detector can download and print the stored data (optional).
- There is no need for personnel to record data in real-time manually, and the data is automatically stored in the instrument.
- Historical data can be viewed on the instrument or downloaded to a computer.
- USB interface, fast and convenient charging.
Details
Applications
The benzene gas detector is used to monitor and detect benzene gas in industrial and commercial environments. It helps ensure worker safety by providing real-time measurements of benzene concentrations, preventing harmful exposure.
Â
| Model | GD200-C6H6 |
| Sampling Method | Pumping suction, flow rate can be up to 750ml/min |
| Detection Principle | High Precision PID |
| Gas | Benzene (C6H6) |
| Range (Optional)* | 0 to 1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm |
| Resolution | 0.001ppm (0-1/5/10/20ppm), 0.01ppm (0-50ppm), 0.1ppm (0-100/200ppm), 1ppm (0-500/1000/2000/5000/10000ppm) |
| Accuracy | ≤±3% F.S. |
| Response Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Data Logging (Optional Function) | High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.) |
| Alarms | Sound, light and vibration |
| Display | LCD dot matrix display |
| Language | Chinese/English |
| Battery | 3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug) |
| Operating Time | 100h (Pump off) |
| Communication | Mini USB interface supports standard MODBUS communication protocol |
| Explosion-proof Grade | â…¡ 2G Ex ia â…¡ CT4 Ga |
| Case Material | ABS+PC |
| Protection Grade | IP66 |
| Certification | CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014) |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Operating Pressure | 0.8~1.2bar |
| Dimension | 205*75*32mm |
| Weight | 300g |
| Warranty | 12 months |
| Extension Probe | About 480mm (Total Length), About 300mm (Probe Head) |
| Accessories (Optional) | Calibration kit - gas pressure regulator (calibration gas cylinder NOT included)
|
Note:
* If you need a Benzene (C6H6) gas detector with other measuring ranges unlisted in the above table, please inform us of your operating environment to help you choose an appropriate one for your application.
* Other portable gas detectors are also provided, you can refer to SISCO Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.
Gas Detector Catalog & User Manual
SISCOÂ Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500Â Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Portable Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
Q1:Â What is a gas detector?
A1:Â A gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, handheld gas detector, fixed gas detector, online gas detector, etc.
Q2:Â What does a gas detector detect?
A2:Â Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3:Â What is ppm of gas detector?
A3:Â Parts per million or "ppm" is often used as a fractional measure of concentration. For example, a methane (molecular) concentration of 2% means that 2 out of every 100 air molecules are methane. Likewise, a methane concentration of 2 ppm means that 2 out of every 1 million air molecules are methane.
Tips:Â What should I do if my portable benzene gas detector goes off?
If your portable benzene gas detector sounds an alarm, it indicates that the concentration of benzene has exceeded the safe threshold. Immediately evacuate the area to a well-ventilated space and avoid further exposure. Check the device’s display for the exact concentration level of benzene. If the alarm persists, verify that the device is functioning correctly, and consider recalibrating it or replacing the sensor if necessary. Always follow the emergency procedures outlined in the product manual.
