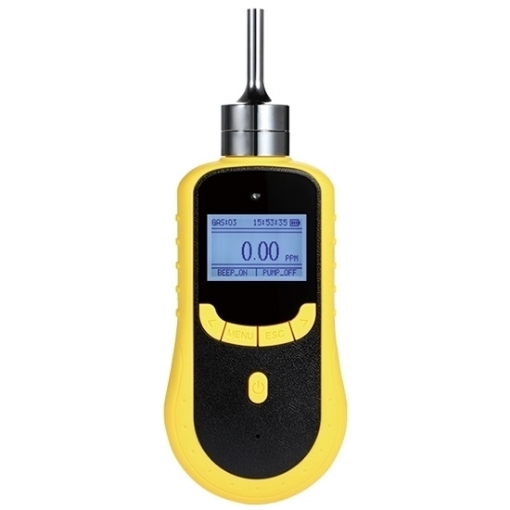

SISCO high performance hydrocarbon gas detector with a measuring range of 0–100% LEL (Lower Explosive Limit), it accurately identifies gas concentrations, providing an early warning of potential hazards. This portable detector is suitable for a variety of environments, including confined spaces, pipeline inspections, and industrial safety checks.
Combustible gas detectors with dual unit measurement
- SISCO handheld hydrocarbon gas detector provides a clear, real-time readout of gas type, unit, concentration, and local time, enhancing usability in various environments.
- Easily switch between English and Chinese for versatile operation, making it suitable for different regions and users.
- Quickly shift between PPM and mg/m³ for gas concentration measurements, offering flexibility in various applications.
- Includes a 10-grade adjustable suction system, allowing for precise sampling in different conditions.
Customizable alarm system
- High-strength engineering plastic housing offers anti-slip, waterproof, dustproof, and explosion-proof protection, ideal for tough working conditions.
- Certified explosion-proof design ensures safety in hazardous environments where flammable gases are present.
- The portable HC gas detector is equipped with self-calibration and zero calibration features for highly accurate and reliable gas detection.
- Two-stage sound and light alarm with adjustable alarm points, providing timely warnings in dangerous situations.
Details
Applications
The hydrocarbon (HC) gas detector is used to detect and monitor hazardous hydrocarbons (HC) in industrial and environmental settings to ensure safety and compliance. It provides real-time, accurate readings, helping to prevent potential gas leaks and exposure to harmful hydrocarbons in various applications such as manufacturing, oil & gas, and chemical industries.
Â
| Model | GD200-HC |
| Sampling Method | Pumping suction, flow rate can be up to 750ml/min |
| Detection Principle | Catalytic Combustion |
| Gas | Hydrocarbons (HC) |
| Range (Optional)* | 0 to 100% LEL |
| Resolution | 1% LEL |
| Accuracy | ≤±3% F.S. |
| Response Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Data Logging (Optional Function) | High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.) |
| Alarms | Sound, light and vibration |
| Display | LCD dot matrix display |
| Language | Chinese/English |
| Battery | 3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug) |
| Operating Time | 100h (Pump off) |
| Communication | Mini USB interface supports standard MODBUS communication protocol |
| Explosion-proof Grade | â…¡ 2G Ex ia â…¡ CT4 Ga |
| Case Material | ABS+PC |
| Protection Grade | IP66 |
| Certification | CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014) |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Operating Pressure | 0.8~1.2bar |
| Dimension | 205*75*32mm |
| Weight | 300g |
| Warranty | 12 months |
| Extension Probe | About 480mm (Total Length), About 300mm (Probe Head) |
| Accessories (Optional) | Calibration kit - gas pressure regulator (calibration gas cylinder NOT included)
|
Note:
* If you need a hydrocarbon gas detector with other measuring ranges unlisted in the above table, please inform us of your operating environment to help you choose an appropriate one for your application.
* Other portable gas detectors are also provided, you can refer to SISCO Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.
Gas Detector Catalog & User Manual
SISCOÂ Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500Â Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Portable Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
Q1:Â What is a gas detector?
A1:Â A gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, handheld gas detector, fixed gas detector, online gas detector, etc.
Q2:Â What does a gas detector detect?
A2:Â Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3:Â What is ppm of gas detector?
A3:Â Parts per million or "ppm" is often used as a fractional measure of concentration. For example, a methane (molecular) concentration of 2% means that 2 out of every 100 air molecules are methane. Likewise, a methane concentration of 2 ppm means that 2 out of every 1 million air molecules are methane.
Tips: What is a hydrocarbon detector?
A hydrocarbon detector is a device used to identify and measure the presence of hydrocarbon gases in the air. Hydrocarbons, such as methane, propane, butane, and others, are compounds made of hydrogen and carbon atoms. These detectors play a crucial role in industries like oil and gas, chemical manufacturing, and environmental monitoring to ensure safety, prevent explosions, and detect leaks.
Hydrocarbon detectors often use technologies like infrared (IR) sensors, catalytic bead sensors, or photoionization detectors (PID) to detect gas concentrations accurately. They are available in portable, handheld models for field use or fixed systems for continuous monitoring in industrial settings.
