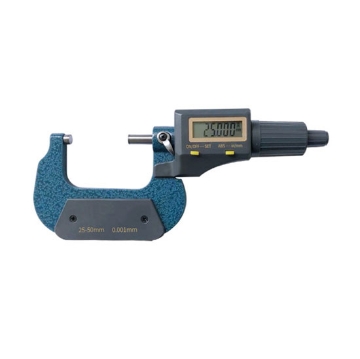

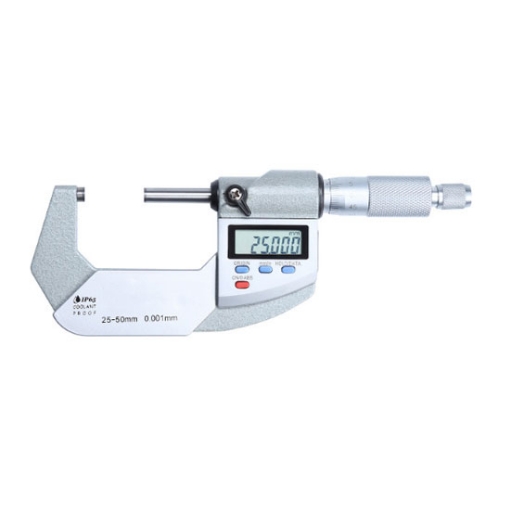

The digital micrometer has a range of 1 to 2 inches (25 to 50 mm) and a resolution of 0.00005 inch, with a hard aluminum alloy probe for durability and long service life. Digital micrometer is accurate to 0.00005 inches, measures in metric and inches, and provides a digital readout on a clear LCD screen.

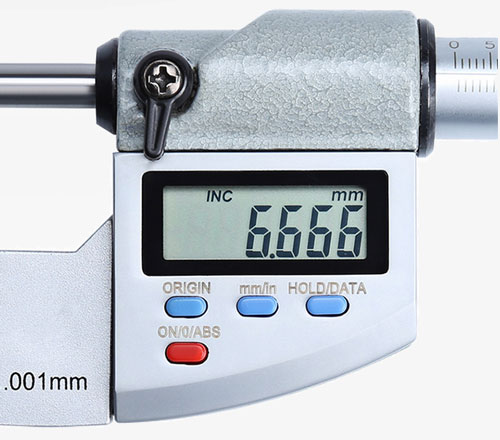

High-definition LCD screen for clearer figures
- Electronic digital display, resolution 0.001mm.
- Multifunctional digital micrometer with digital display and scale display, which can be read even without power.
- Accurate measurement tolerance ≤ ±0.002mm.
- Large digital display ABS home measuring point, no need to repeatedly clear zero.
- IP65 protection level is waterproof, oil-proof, and dust-proof, and can be used in harsh environments.
- 3V high-capacity battery, lasting power.
Application
Digital micrometer is widely used in mechanical engineering, machining and most mechanical industries for accurate measurement of parts, digital micrometer measurement of materials are mainly hardware and plastic.
| Model | SISCO-JZ25-50 |
| Digital Display Scale | Digital display + scale |
| Range | 25~50mm (1~2 inch) |
| Resolution | 0.001 mm (0.00005 inch) |
| Accuracy | ±0.002mm (0.00007 inch) |
| Metric to English Conversion | Yes |
| Home Position Measurement | Yes |
| Data Hold | Yes |
| Power Supply | LR44 button cell |
| Out of Tolerance Alert | Yes |
| Scale Body Quality | High quality steel |
| Product Process | Surface spraying |
| Scale Process | Laser scale |
| Packaging | Drop-proof blow mold box |

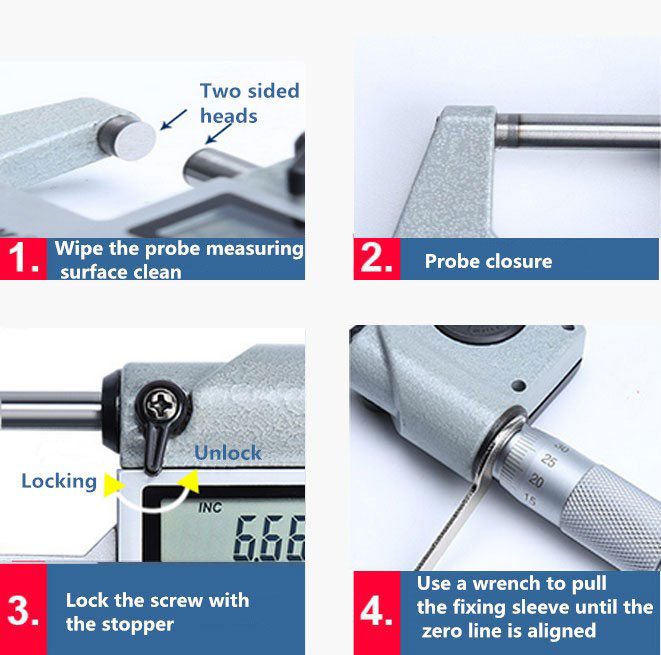

Set zero
- Wipe the probe measuring
- Probe closure
- Lock the screw with the stopper
- Use a wrench to pull the fixing sleeve until the zero line is aligned
Q1: Is the sisco digital micrometer accurate?
A1: sisco digital micrometers can display accurate measurements in small ranges. Advanced and more accurate models can easily measure distances down to 0.001mm. This accuracy when measuring small objects translates into accuracy for the entire project being carried out.
Q2: What is a digital micrometer?
A2: The digital micrometer is the outside diameter micrometer that uses electronic measurement, digital display, and the principle of the spiral sub to read the distance between the two measuring surfaces on the ruler frame.
Q3: What are the ranges of sisco digital micrometers?

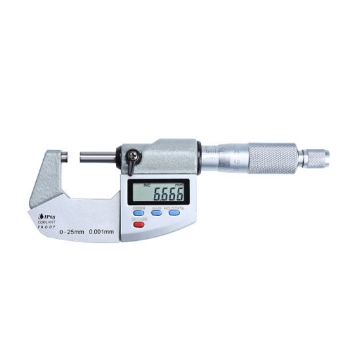

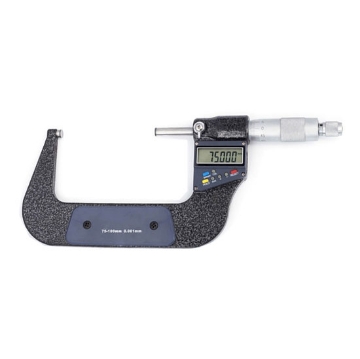

A3: sisco digital micrometer has 4 ranges available: 0-25mm (0~1 inch), 25-50mm (1-2 inch), 50-75mm (2~3 inch), and 75-100mm (3~4 inch).
Tips: How to maintain the digital micrometer?
- Digital micrometer should be used after the timely cleaning of the anvil or other parts of the impurities, oil or moisture adhering to the anvil, in order to save and later use.
- Store the digital micrometer, so that the two anvils slightly maintain the distance between, for example, 0.1MM, forbidden to apply force to make the two anvils end face in a close combination of the state of storage.
- Micrometers should be placed in the prescribed location, in order to facilitate its use and management, if necessary, should be protected, such as into the packaging box, shall not be measured and tools, tools mixed.
- It is strictly forbidden to use measuring instruments temporarily as some kind of tool.
- Pay attention to the use or storage process, gauges fall, bump or other damage, if the above happens, should immediately check to confirm. If necessary, use the fact to re-calibrate to ensure that the gauge meets the requirements of use.
- Do not use your hands to directly touch the micrometer screw and the two sides of the probe, to avoid fingerprints caused by the message rust and measurement errors.
- Can not hand hold the digital blade micrometer differential cylinder arbitrary shaking, to prevent the screw from too quickly wear and damage.
