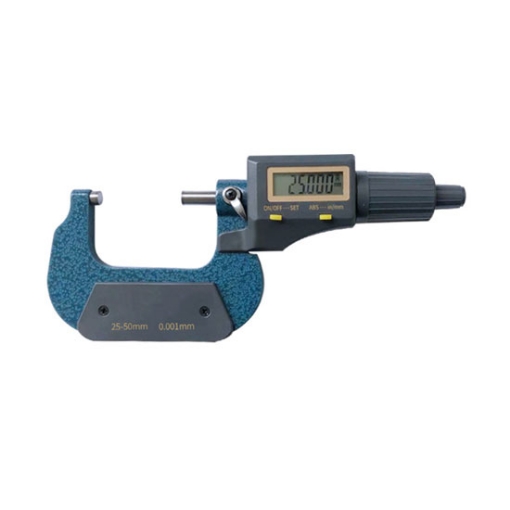

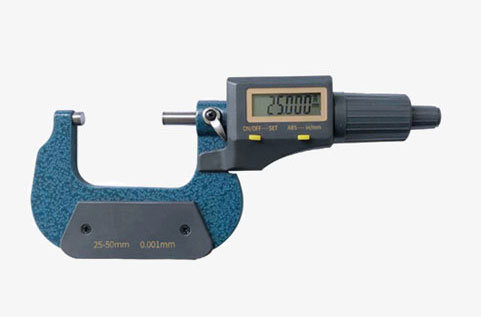

The digital outside micrometer offers a clear LCD screen with a range of 25mm to 50mm (1 to 2 inch), a resolution of 0.00005 inch, and an accuracy of
0.0001 inch, allowing the user to switch between metric (mm) and imperial (inch) measurements at the touch of a button.
Accurate measurement, efficient and stable
- Electronic digital display, resolution 0.001mm.
- Digital micrometer screw gauge with alloy probe for accurate measurement.
- Accurate measurement tolerance ≤ ±0.002mm.
- Large digital display ABS home measuring point, no need to repeatedly clear zero.

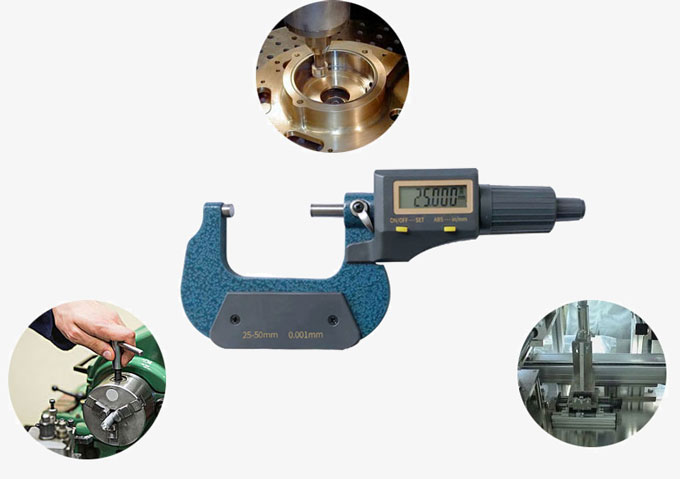

Application
Digital micrometer is widely used in mechanical engineering, machining and most mechanical industries for accurate measurement of parts, digital micrometer measurement of materials are mainly hardware and plastic.
| Model | SISCO-DM-1025 |
| Digital Display Scale | Digital display + scale |
| Range | 25~50mm (1~2 inch) |
| Resolution | 0.001 mm (0.00005 inch) |
| Accuracy | ±0.003mm (0.0001 inch) |
| Metric to English Conversion | Yes |
| Home Position Measurement | Yes |
| Data Hold | Yes |
| Power Supply | LR44 button cell |
| Out of Tolerance Alert | Yes |
| Scale Body Quality | High quality steel |
| Product Process | Surface spraying |
| Scale Process | Laser scale |
| Packaging | Drop-proof blow mold box |
Q1: Is the sisco digital micrometer accurate?
A1: sisco digital micrometers can display accurate measurements in small ranges. Advanced and more accurate models can easily measure distances down to 0.001mm. This accuracy when measuring small objects translates into accuracy for the entire project being carried out.
Q2: What is a digital micrometer?
A2: The digital micrometer is the outside diameter micrometer that uses electronic measurement, digital display, and the principle of the spiral sub to read the distance between the two measuring surfaces on the ruler frame.
Q3: What are the ranges of sisco digital micrometers?
A3: sisco digital micrometer has 4 ranges available: 0-25mm (0~1 inch), 25-50mm (1-2 inch), 50-75mm (2~3 inch), and 75-100mm (3~4 inch).
Tips:Â What is the least count of micrometers?
A micrometer is a device used to measure the thickness or width of very small objects. The least count of a micrometer is the smallest distance that can be measured with it. This distance is usually about 0.001 millimeters or one-thousandth of a millimeter.
