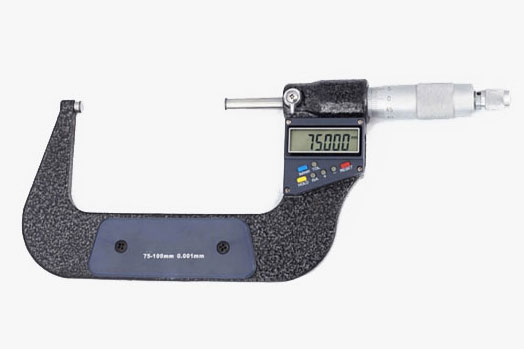

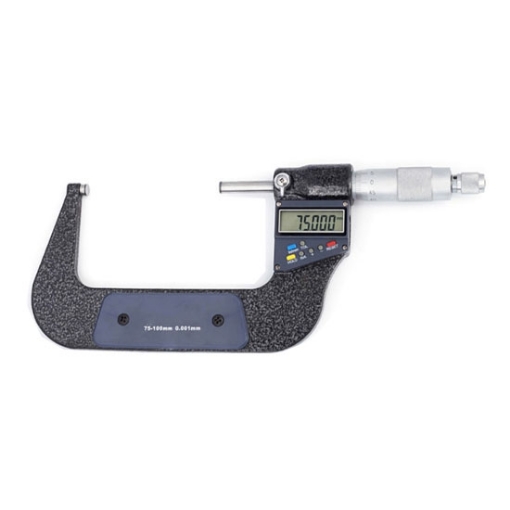

High performance digital outside micrometer for sale, measuring range 3 inch~4 inch (75mm~100mm), measuring in millimeter and inch, clear large screen
provides digital readings, this digital outside micrometer can also be measured accurately in rough environment.
Accurate measurement, efficient and stable
- Electronic digital display, resolution 0.001mm.
- Multifunctional digital micrometer with digital display and scale display, which can be read even without power.
- Accurate measurement tolerance ≤ ±0.002mm.
- Large digital display ABS home measuring point, no need to repeatedly clear zero.
Application
Digital micrometer is widely used in mechanical engineering, machining and most mechanical industries for accurate measurement of parts, digital micrometer measurement of materials are mainly hardware and plastic.
| Model | SISCO-DGN7-75100 |
| Digital Display Scale | Digital display + scale |
| Range | 75~100mm (3~4 inch) |
| Resolution | 0.001 mm (0.00005 inch) |
| Accuracy | ±0.003mm (0.0001 inch) |
| Metric to English Conversion | Yes |
| Home Position Measurement | Yes |
| Data Hold | Yes |
| Power Supply | LR44 button cell |
| Out of Tolerance Alert | Yes |
| Scale Body Quality | High quality steel |
| Product Process | Surface spraying |
| Scale Process | Laser scale |
| Packaging | Drop-proof blow mold box |
Set zero
- Wipe the probe measuring
- Probe closure
- Lock the screw with the stopper
- Use a wrench to pull the fixing sleeve until the zero line is aligned
Q1: Is the sisco digital micrometer accurate?
A1: sisco digital micrometers can display accurate measurements in small ranges. Advanced and more accurate models can easily measure distances down to 0.001mm. This accuracy when measuring small objects translates into accuracy for the entire project being carried out.
Q2: What is a digital micrometer?
A2: The digital micrometer is the outside diameter micrometer that uses electronic measurement, digital display, and the principle of the spiral sub to read the distance between the two measuring surfaces on the ruler frame.
Q3: What are the ranges of sisco digital micrometers?
A3: sisco digital micrometer has 4 ranges available: 0-25mm (0~1 inch), 25-50mm (1-2 inch), 50-75mm (2~3 inch), and 75-100mm (3~4 inch).
Tips: What is the difference between inside diameter micrometer and outside diameter micrometer?
The difference is that the inside diameter micrometer is to measure the diameter of the inner hole, the outside diameter micrometer is to measure the diameter of the outer circle, but also can measure the thickness of the inside diameter micrometer for the precision measurement of internal dimensions (divided into monoblock type and connecting rod )
The correct measurement method: inside diameter micrometer in the measurement and its use of the largest size of the rod and its micrometer head connected, in turn down to the measurement contact, with the inside diameter of the ruler to measure the hole will be measured contact measuring surface support in the measured surface to adjust the differential cylinder, so that the differential cylinder side of the measuring surface in the radial section of the hole swing to find the minimum size, and then tighten the set screw to remove and read, there is no tightening screw directly There are also direct readings without tightening the screw.
