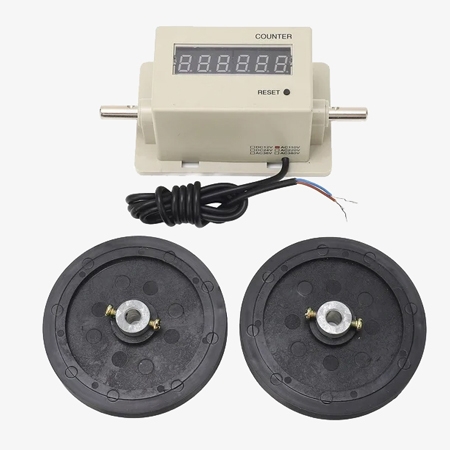

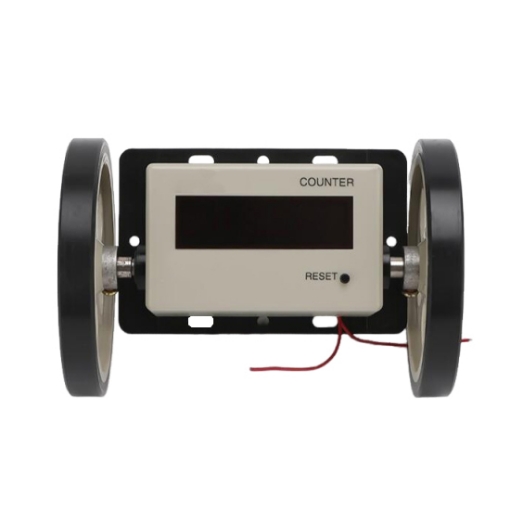

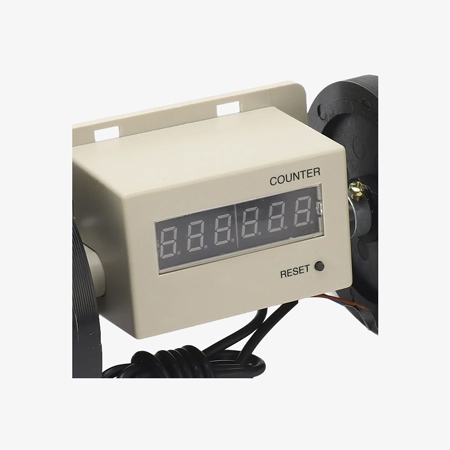

Digital Meter Counter with Measuring Wheel

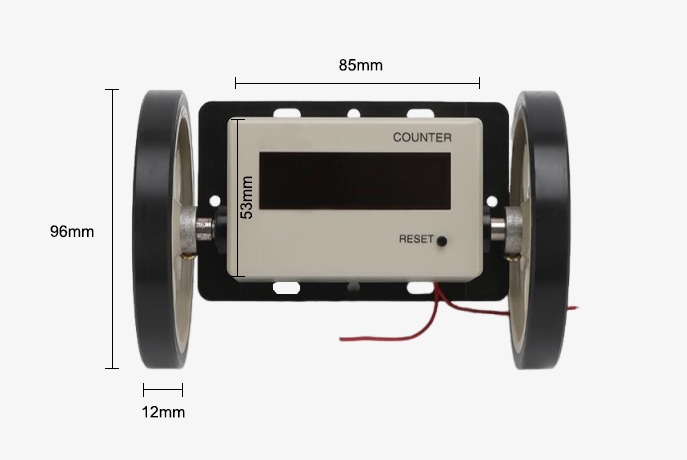

Dimensions (mm)

Q1: What materials can a digital meter counter measure?
A1: A meter counter can measure a wide variety of materials, particularly those that are in the form of continuous rolls or lengths. These materials typically include textiles, such as fabrics and yarns, as well as plastic films, rubber sheets, artificial leather, and cables. It can also be used for measuring other types of flexible materials such as paper, foil, and non-woven fabrics. The meter counter is ideal for industries that require precise measurement of material lengths during production, processing, or packaging, ensuring accuracy and efficiency in material handling and inventory management.

Q2: What are the types of meter counters?
A2: Meter counters come in various types, each designed for specific applications and material handling needs. Common types include mechanical meter counters, which use gears and manual mechanisms to measure length; electronic or digital meter counters, which provide more accurate and precise readings using sensors and digital displays; and rolling meter counters, typically used for materials that are unwound or unrolled, such as fabrics, films, or cables.

There are also specialized meter counters for high-speed applications, like those in manufacturing lines, which can handle faster counting rates and higher precision. Additionally, some models include features like reset functions, adjustable counting speeds, and the ability to measure in both forward and reverse directions, offering flexibility in various industries.

Q3: What should be considered when using a meter counter?
A3: When using a meter counter, several key factors must be considered to ensure accurate and reliable measurements. First, it's important to ensure that the material being measured is properly aligned with the counter’s sensor or mechanism. Misalignment can cause inaccurate readings or even damage to the counter. The type of material being measured also plays a role; materials with varying thickness, flexibility, or surface texture may require adjustments to the counter’s settings, such as tension or speed, to ensure precise measurement. It's also vital to regularly calibrate and maintain the meter counter, as wear and tear over time can affect its performance.

Additionally, operational conditions such as temperature, humidity, and environmental factors should be taken into account. Extreme temperatures or high humidity can influence the performance of both mechanical and electronic meter counters, leading to discrepancies in readings or malfunction. It's also important to consider the counter's capacity, such as its maximum counting speed and range, to ensure it is suitable for the specific application. Overloading the counter or using it beyond its specified limits can lead to errors or damage. Proper training for operators is essential to ensure that the meter counter is used effectively and that any issues are promptly addressed.

Tips: how does a meter counter work?

A meter counter works by tracking the movement of material, typically in the form of a continuous roll or length, as it passes through the counter. The counter is usually equipped with a mechanical or electronic system that measures this movement and converts it into a length reading.

In a mechanical meter counter, a rotating shaft or roller is connected to the moving material, and as the material moves, the shaft or roller rotates. This rotation is then translated into a numerical count, which is displayed on a mechanical dial or a digital display. The counter’s gears and mechanisms are designed to count the number of rotations and calculate the corresponding length, often based on a pre-set ratio that links the number of rotations to the length of material passed.

In an electronic meter counter, sensors detect the movement of the material and send signals to a microprocessor, which processes the information and displays the length on a digital screen. These counters may offer greater accuracy and features such as reset functions, adjustable counting speeds, and higher counting ranges. The working principle is similar in both types, but electronic counters typically offer more flexibility, faster response times, and additional functions such as automatic reset or integration with other machinery.
