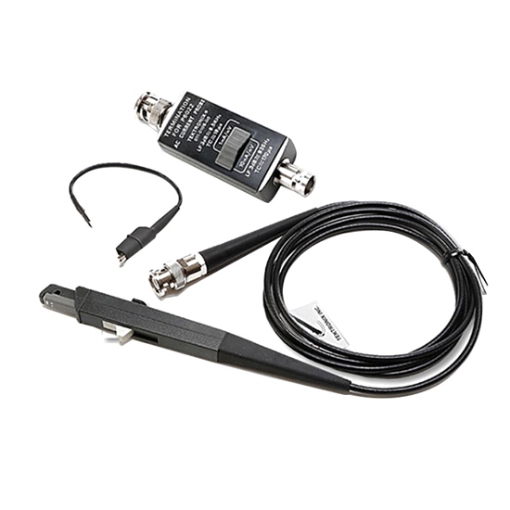

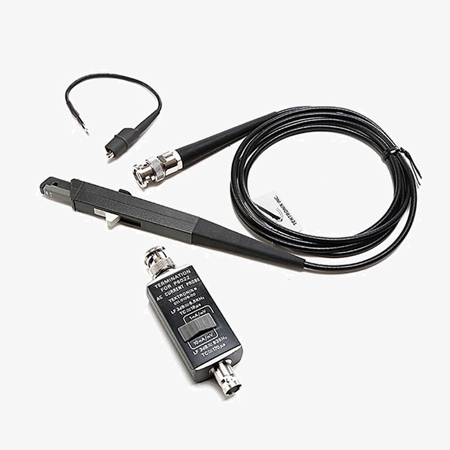

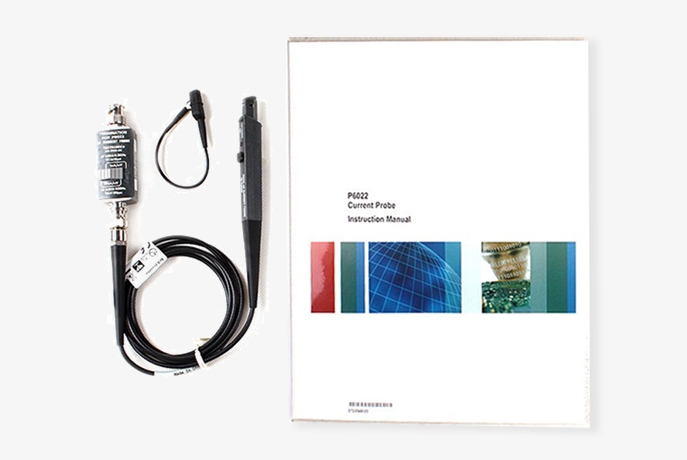

SISCO's AC oscilloscope current probes simplify current measurement by allowing users to clip directly onto the current-carrying conductor without interrupting the circuit. A key safety feature is the shielded probe head, which remains ungrounded when the slides are open, preventing unintended grounding of the circuit under test.
Measurement Characteristics and Signal Types

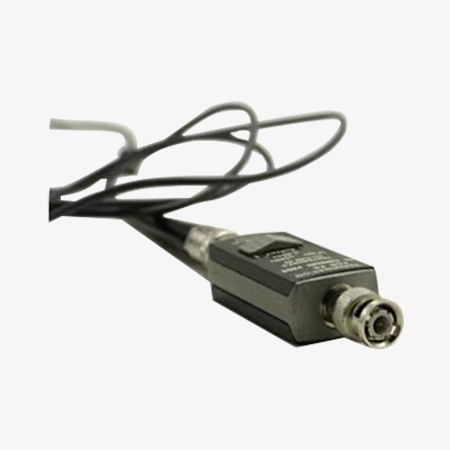

Physical Structure and Interference Suppression
AC oscilloscope current probes are essential tools for analyzing and troubleshooting a wide range of electronic systems, particularly those involving AC currents. Key applications include the testing and optimization of motor drives, where these probes facilitate precise measurement of current waveforms, enabling analysis of motor performance and efficiency. In power inverters and converters, these probes are crucial for verifying correct operation, identifying switching losses, and ensuring compliance with power quality standards. Similarly, in power supply design and testing, AC current probes provide vital insights into current draw, ripple current, and transient response. Furthermore, their high bandwidth and accuracy make them indispensable in avionics applications, where precise current measurements are critical for ensuring the reliability and safety of aircraft electrical systems.
Model | SISCO-OP-P6021A | SISCO-OP-P6022 |
Peak Pulse | 250A | 100A |
Bandwidth | 120Hz-60MHz | 935Hz-120MHz |
Rise Time | ≤5.8ns | ≤2.9ns |
Maximum ACp-P | 15A | 6A |
Maximum Wire Diameter | 5mm | 2.8mm |
Sensitivity | 10mA | 1mA |
Interface | BNC | BNC |
Length | 1.5m |
Q1: What is probe attenuation?
A1: Probe attenuation refers to the reduction in the amplitude of the signal being measured by the oscilloscope probe. It is typically expressed as a ratio, such as 10X or 1X, indicating how much the signal is scaled down. For example, a 10X probe reduces the signal by a factor of 10, meaning the oscilloscope sees only one-tenth of the input signal’s voltage. Attenuation is useful for measuring higher voltage signals without overloading or damaging the oscilloscope, ensuring that the input signal is within the device's safe measurement range. It also improves the probe’s bandwidth and reduces the loading effect on the circuit under test.
Q2: How to minimize noise when using oscilloscope probes?
A2: To minimize noise when using oscilloscope probes, it's essential to ensure proper grounding, use short ground leads, and maintain good probe placement to reduce electromagnetic interference (EMI). Keep the probe tip as close as possible to the test point to minimize the probe's cable length, which can act as an antenna and pick up external noise. Additionally, use low-noise, shielded probes if possible and consider employing a differential probe for balanced measurements in noisy environments. Adjust the oscilloscope’s settings, such as averaging or filtering, to reduce noise in the displayed signal. It's also important to use the correct probe attenuation (e.g., 10X) to ensure the oscilloscope is properly scaled, and avoid using probes that might introduce excessive loading on the circuit, which can also contribute to noise.
Q3: What is the difference between a passive and active oscilloscope probe?
A3: A passive oscilloscope probe is a simple device that does not require an external power source to operate. It typically consists of a resistive voltage divider network, which attenuates the signal as it passes through the probe. Passive probes are commonly used for general-purpose measurements, offering a broad frequency range and a simple, cost-effective solution for many applications. They are typically lighter, more durable, and less expensive than active probes, making them a popular choice for basic signal testing. However, they can introduce a higher level of loading on the circuit under test, which may affect the accuracy of measurements, particularly at high frequencies.
An active oscilloscope probe, on the other hand, uses internal electronics, such as transistors or amplifiers, to actively measure and condition the signal. These probes require a power source, often provided through the oscilloscope itself. Active probes provide higher input impedance, lower capacitance, and reduced loading on the circuit, making them more suitable for high-speed or high-frequency applications where precision is critical. They can also handle higher voltage levels with better accuracy and stability, but they are typically more expensive and require additional components to operate. Active probes are ideal for advanced measurements, such as those in digital circuits or high-frequency signals, where low loading and high performance are essential.
Tips: how does a oscilloscope probe work?
An oscilloscope probe works by connecting to the circuit under test and capturing the electrical signals, which are then transmitted to the oscilloscope for analysis. The probe typically consists of a metal tip for probing the signal and a ground clip to establish a reference point. When the probe tip touches a circuit node, it measures the voltage at that point, and the signal is sent through a coaxial cable to the oscilloscope. Depending on the type of probe, the signal may be attenuated (scaled down) by a factor, such as 10X or 1X, to ensure the oscilloscope receives a signal within its measurable range. The oscilloscope then processes and displays the signal waveform, allowing users to analyze characteristics such as amplitude, frequency, and waveform shape. In active probes, internal electronics amplify or condition the signal to ensure minimal loading and higher accuracy, especially for high-speed or high-frequency measurements.
