Comes with a large screen display with a backlight
- Large screen digital display, backlight, clear reading, no parallax, convenient for operation at night or in places with insufficient light, automatic shutdown after 5 minutes of misoperation.
- Data can be saved, and 999 groups of record values can be stored.
- The digital wrench torque has anti-slip buttons, a comfortable feel, easy to carry.
The electronic torque wrench can preset values, sound and light alarm
- The digital tq wrench allows users to set target torque values according to the torque to be measured.
- Buzzer and LED indicators are triggered when the preset torque value is reached (peak limit mode and preset mode), the buzzer sounds long and the red light stays on.
- Digital display torque wrench supports switching between different torque units (e.g., Nm, lb-ft) and displays the selected unit on the screen.

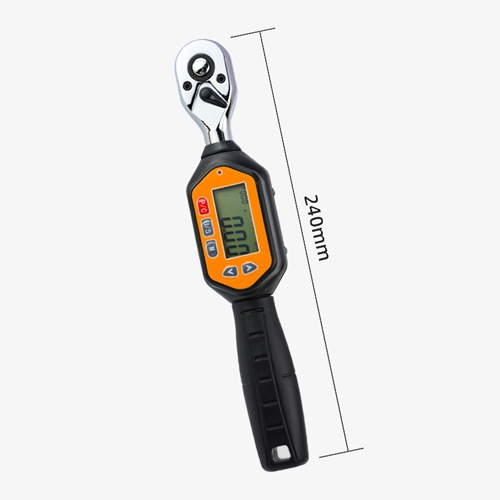

Dimension
Applications
SISCO digital torque wrenches are widely used in various fields, including automotive repair, aerospace, bicycle maintenance, construction, and medical equipment assembly and maintenance. They provide precise torque measurement and control through a digital display, ensuring fasteners achieve the required torque value for safety and reliability. These tools are especially suited for applications requiring high precision and repeatability, such as wind and solar energy installation, electronics repair, and the oil and gas industry.
Machinery Industry
Medical Equipment
Bicycle Repairing
Automotive
| Model | SISCO-DTW-ZWM-60 |
| Connector Size | 3/8 inches |
| Buzzer Setting Range | 1.8-60 N.m |
| Minimum Division Value | 0.01 |
| Maximum Operating Range | 60 N.m/44.25 ft.lb/531.04 in.lb/ 611.82 kgf.cm |
| Length | 240mm |
| Accuracy*1 | Clockwise: ±2%; Counterclockwise: ±2.5% (20-100% of full scale) |
| Data Storage Capacity | 999 groups |
| Operation Mode | Peak mode (P)/Real time mode (T)/Preset mode (Pre) |
| Unit | Four units can be switched freely (N.m, kgf.cm, lbf.ft, lbf.in) |
| Ratchet Head Type | Bidirectional ratchet head |
| Number of Ratchet Teeth | 72 teeth |
| Number of Buttons | 5 |
| Display and Prompts | LCD digital display with backlight function; sound and light alarm when reaching the preset torque value |
| Auto Shutoff | Automatic shutdown within 5 minutes without operation |
| Battery | 2*7# batteries (Excluded) |
| Operating Temperature | -10℃-60℃ |
| Storage Temperature | -20℃-70℃ |
| Drop Test Height | 1 meter |
| Vibration Test Conditions*2 | 10G |
| Life Test*3 | 10000 times |
Detail
Q1: What is a digital torque wrench?
A1: A digital torque wrench is a tool used to measure and apply a specific amount of torque to a fastener. Unlike traditional mechanical wrenches, it features a digital display for precise torque measurements and often includes audible and visual alerts.
Q2: How does digital torque wrench work?
A2: A digital torque wrench measures and applies torque using electronic sensors. The sensors convert the applied force into an electrical signal, which is processed by a microprocessor. The torque value is then displayed on a digital screen, and the tool often provides audible and visual alerts when the preset torque is reached.
Q3: Is a digital torque wrench more accurate than a mechanical one?
A3: Digital torque wrenches are generally considered more accurate than mechanical ones due to their precise measurements and built-in alerts. However, accuracy can still depend on the quality of the tool and proper use.
Tips: How to maintain the digital torque wrench?
Maintaining a digital torque wrench properly ensures its accuracy and longevity. Here are some key maintenance tips:
- Regular Calibration: Periodically calibrate your torque wrench according to the manufacturer's recommendations to ensure accuracy.
- Proper Storage: Store the wrench in its protective case when not in use to protect it from dust, moisture, and physical damage. Keep it in a dry and cool place.
- Cleaning: Clean the wrench with a soft, dry cloth after each use. Avoid using harsh chemicals or submerging them in water.
- Battery Care: Check and replace the batteries regularly. Remove the batteries if the wrench will not be used for an extended period to prevent corrosion.
- Regular Inspection: Inspect the wrench regularly for any signs of wear, damage, or loose parts, and address any issues immediately.
By following these maintenance steps, you can ensure your digital torque wrench remains accurate and reliable for a long time.
