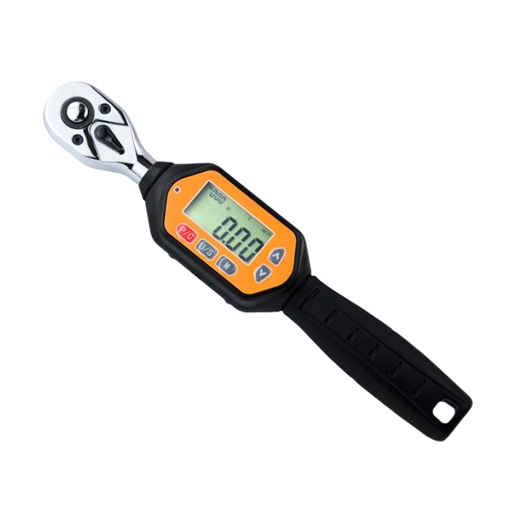

SISCO digital display torque wrench with 4 units of N.m, kgf.cm, Ibf.tf, lbf.in can be transferred for multiple needs. 1/4" digital torque wrench designed with user comfort in mind, the ergonomic handle offers a firm grip. The large, backlit LCD display offers easy readability, even in low-light conditions. The mini digital torque wrench is suitable for fastening and controlling bolts in the automobile industry, machinery industry, etc.

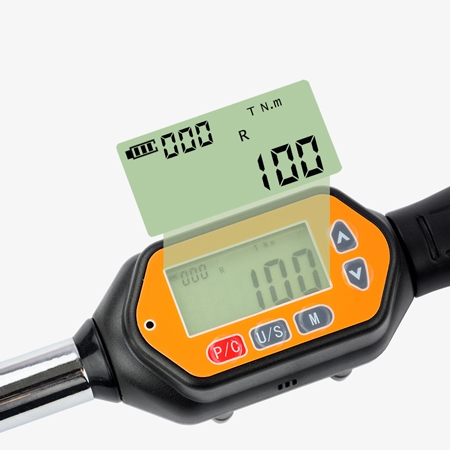

Comes with a large screen display with a backlight
- Large screen digital display, backlight, clear reading, no parallax, convenient for operation at night or in places with insufficient light, automatic shutdown after 5 minutes of misoperation.
- Data can be saved, and 999 groups of record values ​​can be stored.
- The digital wrench torque has anti-slip buttons, a comfortable feel, easy to carry.

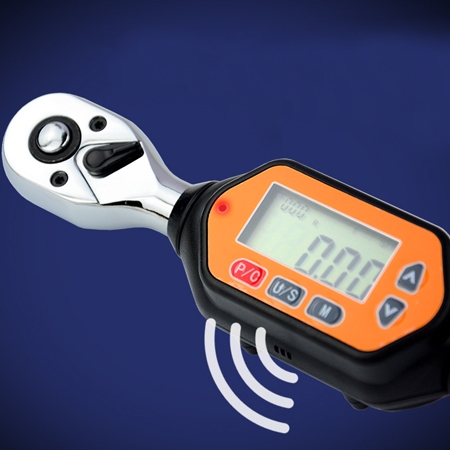

The electronic torque wrench can preset values, sound and light alarm
- The digital tq wrench allows users to set target torque values according to the torque to be measured.
- Buzzer and LED indicators are triggered when the preset torque value is reached (peak limit mode and preset mode), the buzzer sounds long and the red light stays on.
- Digital display torque wrench supports switching between different torque units (e.g., Nm, lb-ft) and displays the selected unit on the screen.

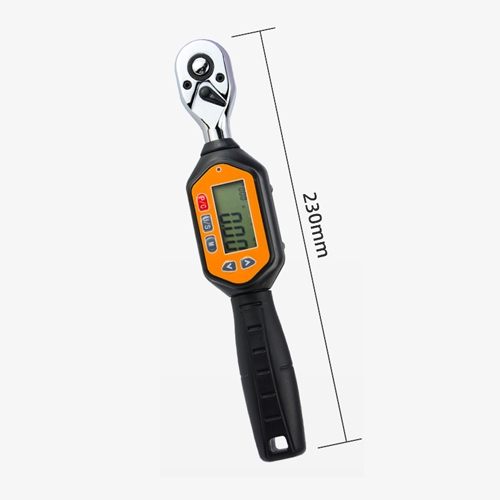

Dimension
Applications
SISCO digital torque wrenches are widely used in various fields, including automotive repair, aerospace, bicycle maintenance, construction, and medical equipment assembly and maintenance. They provide precise torque measurement and control through a digital display, ensuring fasteners achieve the required torque value for safety and reliability. These tools are especially suited for applications requiring high precision and repeatability, such as wind and solar energy installation, electronics repair, and the oil and gas industry.
Machinery Industry
Medical Equipment
Bicycle Repairing
Automotive
Â
| Model | SISCO-DTW-ZWM-30 |
| Connector Size | 1/4 inches |
| Buzzer Setting Range | 0.9-30 N.m |
| Minimum Division Value | 0.01 |
| Maximum Operating Range | 30 N.m/22.12 ft.lb/265.5 in.lb/ 305.91 kgf.cm |
| Length | 230mm |
| Accuracy*1 | Clockwise: ±2%; Counterclockwise: ±2.5% (20-100% of full scale) |
| Data Storage Capacity | 999 groups |
| Operation Mode | Peak mode (P)/Real time mode (T)/Preset mode (Pre) |
| Unit | Four units can be switched freely (N.m, kgf.cm, lbf.ft, lbf.in) |
| Ratchet Head Type | Bidirectional ratchet head |
| Number of Ratchet Teeth | 72 teeth |
| Number of Buttons | 5 |
| Display and Prompts | LCD digital display with backlight function; sound and light alarm when reaching the preset torque value |
| Auto Shutoff | Automatic shutdown within 5 minutes without operation |
| Battery | 2*7# batteries (Excluded) |
| Operating Temperature | -10℃-60℃ |
| Storage Temperature | -20℃-70℃ |
| Drop Test Height | 1 meter |
| Vibration Test Conditions*2 | 10G |
| Life Test*3 | 10000 times |
Â

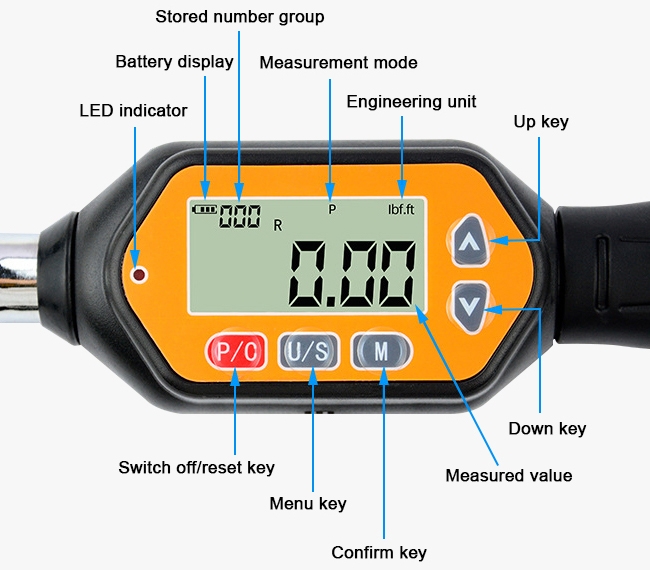

Detail
Q1: What is a digital torque wrench?
A1: A digital torque wrench is a tool used to measure and apply a specific amount of torque to a fastener. Unlike traditional mechanical wrenches, it features a digital display for precise torque measurements and often includes audible and visual alerts.
Q2: How does digital torque wrench work?
A2: A digital torque wrench measures and applies torque using electronic sensors. The sensors convert the applied force into an electrical signal, which is processed by a microprocessor. The torque value is then displayed on a digital screen, and the tool often provides audible and visual alerts when the preset torque is reached.
Q3: Is a digital torque wrench more accurate than a mechanical one?
A3: Digital torque wrenches are generally considered more accurate than mechanical ones due to their precise measurements and built-in alerts. However, accuracy can still depend on the quality of the tool and proper use.
Tips: What is a digital torque wrench used for?
A digital torque wrench is used for precisely applying a specific amount of torque to fasteners such as bolts and nuts. Its primary purposes include:
- Ensuring Proper Tightness: It ensures that fasteners are tightened to the correct torque specifications, preventing over-tightening or under-tightening, which can lead to mechanical failure or damage.
- Improving Accuracy: The digital display provides precise torque readings, improving the accuracy of torque applications compared to traditional mechanical wrenches.
- Quality Control: In industries like automotive, aerospace, and manufacturing, a digital torque wrench is essential for maintaining consistent quality and safety standards.
- Recording and Tracking: Some models have memory functions to store torque settings and usage data, helping in tracking and documenting maintenance and assembly processes.
Overall, a digital torque wrench is a valuable tool for tasks that require precise and reliable torque applications.
