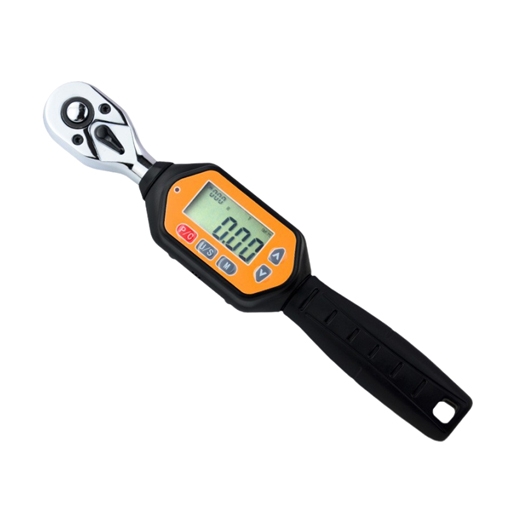

High-precision 1/4 inch digital torque wrench for sale online. The digital ratchet torque wrench ensures precision at your fingertips. With ±2% accuracy in clockwise direction and ±2.5% in counter-clockwise direction, confidently tackle jobs with the certainty of precision. The electronic torque wrench has a mini design, which is more suitable for operation in a narrow space.
Comes with a large screen display with a backlight
- Large screen digital display, backlight, clear reading, no parallax, convenient for operation at night or in places with insufficient light, automatic shutdown after 5 minutes of misoperation.
- Data can be saved, and 999 groups of record values ​​can be stored.
- The digital wrench torque has anti-slip buttons, a comfortable feel, easy to carry.
The electronic torque wrench can preset values, sound and light alarm
- The digital tq wrench allows users to set target torque values according to the torque to be measured.
- Buzzer and LED indicators are triggered when the preset torque value is reached (peak limit mode and preset mode), the buzzer sounds long and the red light stays on.
- Digital display torque wrench supports switching between different torque units (e.g., Nm, lb-ft) and displays the selected unit on the screen.
Dimension
Applications
SISCO digital torque wrenches are widely used in various fields, including automotive repair, aerospace, bicycle maintenance, construction, and medical equipment assembly and maintenance. They provide precise torque measurement and control through a digital display, ensuring fasteners achieve the required torque value for safety and reliability. These tools are especially suited for applications requiring high precision and repeatability, such as wind and solar energy installation, electronics repair, and the oil and gas industry.
Machinery Industry
Medical Equipment
Bicycle Repairing
Automotive
Â
| Model | SISCO-DTW-ZWM-10 |
| Connector Size | 1/4 inches |
| Buzzer Setting Range | 0.3-10 N.m |
| Minimum Division Value | 0.01 |
| Maximum Operating Range | 10 N.m/7.37 ft.lb/88.5 in.lb/ 101.97 kgf.cm |
| Length | 230mm |
| Accuracy*1 | Clockwise: ±2%; Counterclockwise: ±2.5% (20-100% of full scale) |
| Data Storage Capacity | 999 groups |
| Operation Mode | Peak mode (P)/Real time mode (T)/Preset mode (Pre) |
| Unit | Four units can be switched freely (N.m, kgf.cm, lbf.ft, lbf.in) |
| Ratchet Head Type | Bidirectional ratchet head |
| Number of Ratchet Teeth | 72 teeth |
| Number of Buttons | 5 |
| Display and Prompts | LCD digital display with backlight function; sound and light alarm when reaching the preset torque value |
| Auto Shutoff | Automatic shutdown within 5 minutes without operation |
| Battery | 2*7# batteries (Excluded) |
| Operating Temperature | -10℃-60℃ |
| Storage Temperature | -20℃-70℃ |
| Drop Test Height | 1 meter |
| Vibration Test Conditions*2 | 10G |
| Life Test*3 | 10000 times |
Â
Detail
Q1: What is a digital torque wrench?
A1: A digital torque wrench is a tool used to measure and apply a specific amount of torque to a fastener. Unlike traditional mechanical wrenches, it features a digital display for precise torque measurements and often includes audible and visual alerts.
Q2: How does digital torque wrench work?
A2: A digital torque wrench measures and applies torque using electronic sensors. The sensors convert the applied force into an electrical signal, which is processed by a microprocessor. The torque value is then displayed on a digital screen, and the tool often provides audible and visual alerts when the preset torque is reached.
Q3: Is a digital torque wrench more accurate than a mechanical one?
A3: Digital torque wrenches are generally considered more accurate than mechanical ones due to their precise measurements and built-in alerts. However, accuracy can still depend on the quality of the tool and proper use.
Tips: How does a digital torque wrench measure angle?
A digital torque wrench measures angle using an internal angular sensor, such as an accelerometer or rotary encoder. As the wrench rotates, the sensor detects the movement and converts it into an angle measurement. This data is processed by the wrench's microprocessor and displayed on the digital screen. This feature allows users to apply a specific angle of rotation, which is useful for tasks requiring precise angular adjustments in addition to torque measurements.
