This 256x192 thermal imager is designed for precision and clarity, boasting a 25Hz frame rate to ensure smooth and responsive imaging capabilities. Whether you're troubleshooting equipment or conducting routine inspections, trust in the reliability and accuracy of our WiFi thermal imaging camera to get the job done efficiently and effectively.

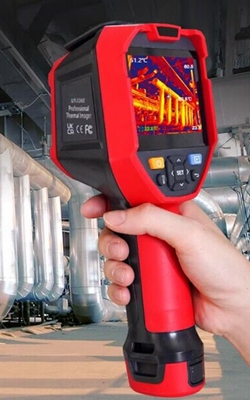

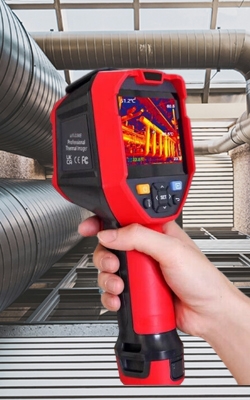

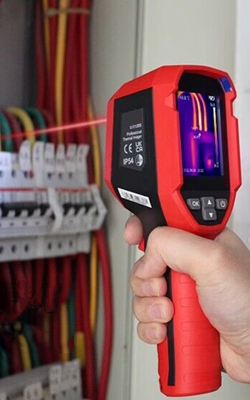

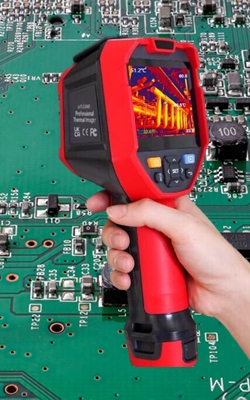

A portable infrared thermal imaging camera is used for inspecting distribution boxes, motors, conveyor pipes, transformers, vents, circuit boards, and more, ensuring efficient maintenance and early detection of potential issues.
Â
Model | SISCO-UT260E |
Screen Size | 3.5 inch |
IR Resolution | 256x92 |
Temperature Measurement Range | -40℃~400℃ |
Accuracy | 2°C or ±2%, whichever is the maximum |
Emissivity | 0.95 (default),0.01~0.99 adjustable |
Visible Light Pixels | 2 Million |

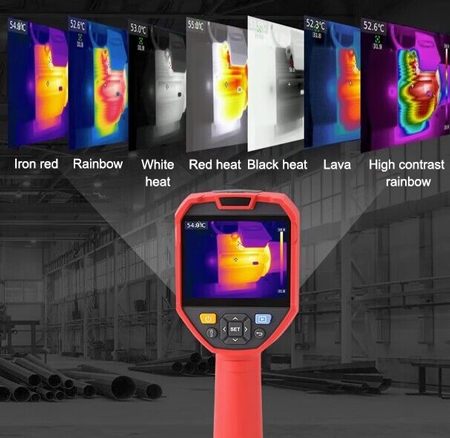

Color Palette | Iron Red/Rainbow/White Hot Red Hot/Black Hot/Lava/High Contrast Rainbow |
Field of View | 56°(H)*42.2°(V) |
IFOV | 3.8mrad |
Storage Media | 32GB Micro SD Card |
Focus Mode | No focus adjustment |
Sensitivity | < 50mk |
Frame Frequency | ≤25Hz |
Digital Magnification | 2x,4x |
Temperature Analysis | Point rectangle, circle, line |
Isotherm | Manual/Auto |
Temperature Measurement Display | Center point, high and low temperature automatic tracking |
Temperature Unit | Celsius/Fahrenheit |
High and Low Temperature Alarm | LED flash/screen alarm |
Image Mode | Thermal imaging/visible light/picture-in-picture/fusion |
Image Format | JPG |
USB Communication | Type C, USB |
WiFi | √ |
Real-Time Image Transmission | √ |

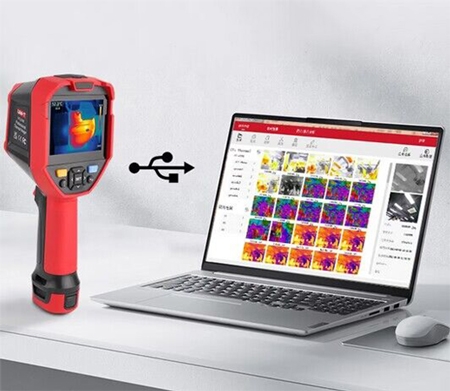

PC Analysis Software | √ |
Mobile APP | √ |
LED lighting | √ |
Language | English/Chinese |

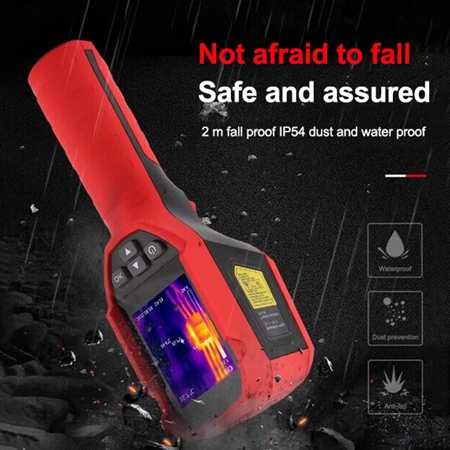

IP Rating | IP54 |
Drop Test | 2m |

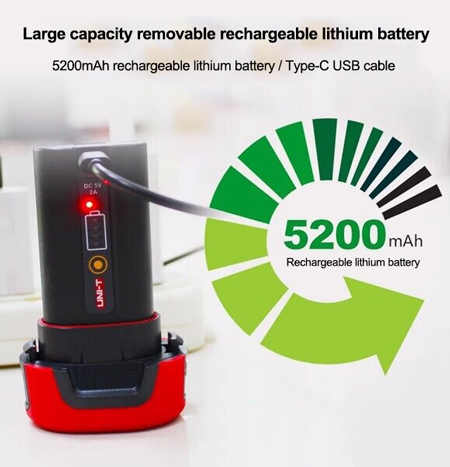

Battery | 3.7V 5200mAh, Rechargeable lithium battery |
Dimension | 260x92x100mm |
Weight | 560g |
Q1: How does a thermal imaging camera work?
A1: Thermal imaging camera works by detecting infrared radiation, which is emitted by all objects based on their temperature. The camera's sensor captures this radiation and converts it into an electronic signal. This signal is then processed to create a thermal image or thermogram, where different temperatures are represented by various colors or shades of gray, allowing users to visualize heat patterns and temperature variations.
The camera uses a special lens to focus the infrared light emitted by objects in its field of view. Inside the camera, a phased array of infrared-detector elements creates a detailed temperature pattern called a thermogram. This thermogram is translated into electric impulses, which are then processed by the camera's circuitry to produce a visible image on the display, illustrating the heat distribution of the scene. This technology is widely used in various applications such as detecting termites and mice, conducting electrical and HVAC inspections, firefighting, locating water leaks, and performing building and home inspections.
Q2: Can an infrared thermal imaging camera detect water leaks?
A2: Yes, an infrared thermal imaging camera can effectively detect water leaks. It identifies temperature variations on surfaces, which can indicate the presence of moisture. When water leaks occur, they often cause cooler or warmer spots on walls, floors, or ceilings due to the difference in thermal conductivity compared to dry areas.
By using the thermal imaging camera, technicians can quickly and non-invasively locate the source of the leak without needing to dismantle structures. This makes it a valuable tool for early detection and repair, preventing further damage and reducing maintenance costs.
Q3: Can an infrared thermal imaging camera be used outdoors in various weather conditions?
A3: Yes, infrared thermal imaging cameras can be used outdoors in a variety of weather conditions. They are designed to detect temperature differences and can function effectively in both day and night. However, certain environmental factors like heavy rain, fog, or extreme temperatures can affect the clarity and accuracy of the thermal images. For optimal performance, it is advisable to use the camera in conditions where visibility is not severely obstructed. Additionally, many models are built to withstand harsh outdoor conditions, including being resistant to dust and water, ensuring durability and reliable operation in different environments.
Tips: Can a thermal imaging camera detect extremely high temperature variations?
Yes, thermal imaging cameras are capable of detecting extremely high temperature variations. These cameras can detect temperatures ranging from very cold to very hot, often spanning from below freezing to several hundred degrees Celsius or Fahrenheit, depending on the specific model and its temperature range capabilities. Some thermal imaging cameras are designed for specific applications where high temperature differentials are common, such as in industrial settings, electrical inspections, or firefighting. These cameras are equipped with sensors and algorithms that can accurately capture and display temperature differences, making them effective tools for various applications, including detecting overheating components, monitoring thermal processes, and identifying potential hazards.
Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.
SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.
