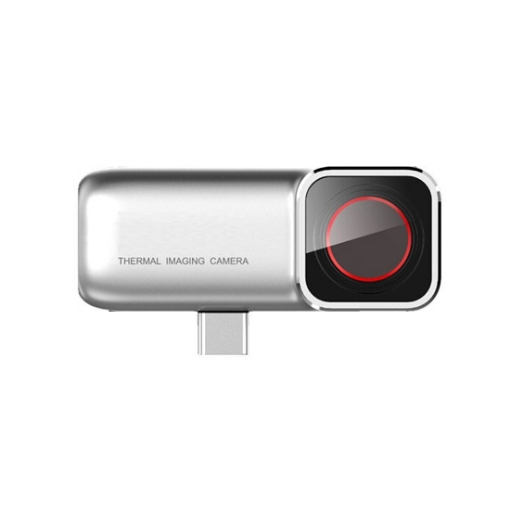

Buy a cheap thermal imaging camera for your smartphone, with an infrared resolution of 256×192, this camera delivers crystal-clear imaging, revealing intricate details even in challenging conditions.
- High-Resolution Imaging: The thermal imaging camera features high-definition imaging with a resolution of 256x192, ensuring detailed and accurate thermal visuals.
- Touchscreen Autofocus: With just a fingertip touch on the screen, the camera automatically focuses, quickly delivering clear thermal images for immediate analysis.
- Long-Range Detection: This compact smartphone thermal imaging camera can identify people and animals at distances of up to 100 meters in dark outdoor environments, making it ideal for various field applications.
- Enhanced Visibility in the Dark: Thermal imaging cameras enable clear detection and visualization of targets in dark environments, making them ideal for urban night running, hiking and camping, outdoor adventures, and pet locating.
- Versatile Multi-Scene Application: The smartphone thermal imaging camera supports three scene modes: human temperature measurement, conventional temperature measurement, and night vision mode.
- Industrial-Grade Temperature Accuracy: The thermal imaging camera offers an impressive measurement accuracy of ±2°C, with a temperature range of -20°C to +150°C.

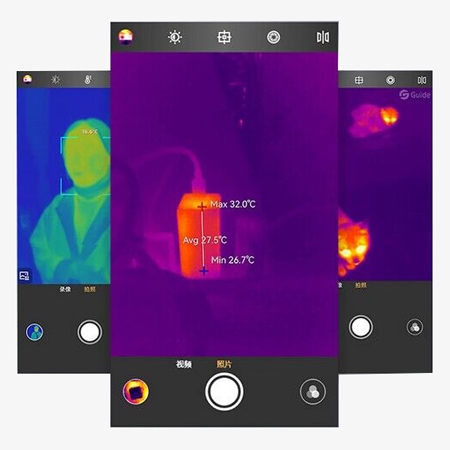

- Comprehensive Analysis Capabilities: Advanced Analysis Capabilities: This thermal imaging camera can simultaneously add up to 3 points, 1 line, and 2 areas for detailed analysis.
- Supports Multiple Person Detection: Capable of accurately detecting the temperature of multiple individuals simultaneously.
- High Precision Temperature Measurement: The industrial thermal imaging camera provides body temperature readings with an accuracy of ±0.5°C.
- Effective Range: Operates efficiently within a distance range of 0.5 to 2.5 meters.
Applications
SISCO handheld infrared thermal imaging camera is used for power line inspections, HVAC maintenance, building inspections, air conditioning inspections, industrial mechanical and electrical inspections, energy audits, and leak prevention.
Electrical Inspection
Air Conditioning Inspection
Electrical Maintenance
Water Leak Detection
| Model | SISCO-MOIB-2R |
| IR Resolution | 256X192 |
| Pixel Size | 12um |
| Working Band | 7.5~14um |
| Field of View | 259° Focal length 7mm |
| Focus Mode | Auto focus |
| Detector Type |
WLP |
| Temperature Measurement Range | - 20°C~150°C |
| Temperature Measurement Accuracy | ±2°C or 2% of reading |
| Human Body Temperature Measurement Accuracy | ±0.5℃ |
| Human Body Temperature Measurement Range | 20-50°C |
| Human Body Temperature Measurement Distance | 0.5-2.5 Meters |
| Protection Level | IP43 |
| Drop Test | Resistant to 1 meter drop (excluding type-c interface) |
| Certification | CE FCC RoHS (measurement report) |
| Dimension | 59x23.55x16.38mm |
| Weight | 35g |
Q1: How does a thermal imaging camera work?
A1: Thermal imaging camera works by detecting infrared radiation, which is emitted by all objects based on their temperature. The camera's sensor captures this radiation and converts it into an electronic signal. This signal is then processed to create a thermal image or thermogram, where different temperatures are represented by various colors or shades of gray, allowing users to visualize heat patterns and temperature variations.
The camera uses a special lens to focus the infrared light emitted by objects in its field of view. Inside the camera, a phased array of infrared-detector elements creates a detailed temperature pattern called a thermogram. This thermogram is translated into electric impulses, which are then processed by the camera's circuitry to produce a visible image on the display, illustrating the heat distribution of the scene. This technology is widely used in various applications such as detecting termites and mice, conducting electrical and HVAC inspections, firefighting, locating water leaks, and performing building and home inspections.
Q2: Can an infrared thermal imaging camera detect water leaks?
A2: Yes, an infrared thermal imaging camera can effectively detect water leaks. It identifies temperature variations on surfaces, which can indicate the presence of moisture. When water leaks occur, they often cause cooler or warmer spots on walls, floors, or ceilings due to the difference in thermal conductivity compared to dry areas.
By using the thermal imaging camera, technicians can quickly and non-invasively locate the source of the leak without needing to dismantle structures. This makes it a valuable tool for early detection and repair, preventing further damage and reducing maintenance costs.
Q3: Can an infrared thermal imaging camera be used outdoors in various weather conditions?
A3: Yes, infrared thermal imaging cameras can be used outdoors in a variety of weather conditions. They are designed to detect temperature differences and can function effectively in both day and night. However, certain environmental factors like heavy rain, fog, or extreme temperatures can affect the clarity and accuracy of the thermal images. For optimal performance, it is advisable to use the camera in conditions where visibility is not severely obstructed. Additionally, many models are built to withstand harsh outdoor conditions, including being resistant to dust and water, ensuring durability and reliable operation in different environments.
Tips: Can I record videos with a Thermal Imaging Camera for Smartphone?
Yes, most Thermal Imaging Cameras for Smartphones allow you to record videos. These cameras typically come with companion mobile apps that enable video recording functionality in addition to capturing thermal images. Recording videos can be useful for documenting thermal patterns over time, analyzing temperature changes, or sharing thermal footage with others.
