A tension meter, also known as a tension gauge or tension measuring instrument, is a device designed to measure and quantify the tension or force in materials such as wires, cables, belts, and other flexible components. This tension meter is widely used in various industries to ensure that proper tension levels are maintained for optimal performance and safety.

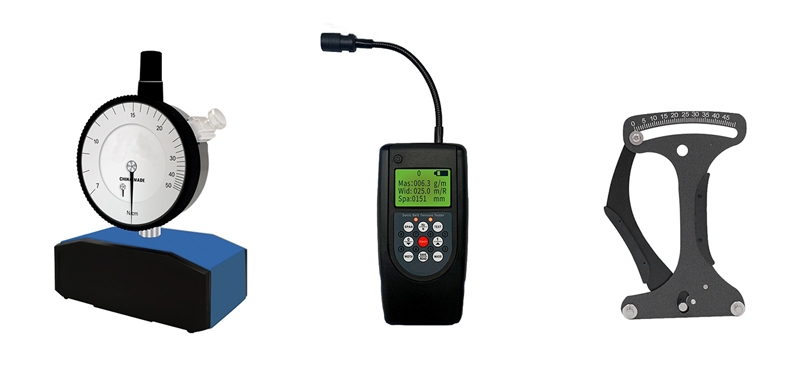

Types of Tension Meters
Tension meters come in various types, each designed to suit specific applications and industries. Here are some common types of tension meters:
- Digital Tension Meters: Digital tension meters provide electronic readings of tension force. They typically feature a digital display that shows the measured tension in real-time. Digital tension meters may use load cells, strain gauges, or other electronic sensors to capture and display the tension force.
- Handheld Tension Meters: Handheld tension meters are portable devices designed for ease of use and mobility. They are suitable for on-the-spot tension measurements in various applications. Handheld tension meters can come in different types, such as rolling or clamp-on, and may offer digital or analog displays.
- Stationary Tension Meters: Stationary tension meters are fixed or mounted devices used in industrial processes where continuous monitoring of tension is required. These meters are often integrated into manufacturing lines and machinery to ensure consistent tension levels during production.
- Belt Tension Meters: Belt tension meters are used to measure and adjust the tension in belts, commonly found in automotive applications, conveyor systems, and industrial machinery. Proper belt tension is essential for efficient operation and longevity.
Advantages of Tension Meters
Tension meters offer several advantages in various industries and applications where precise tension measurements are critical. Here are some key advantages of using tension meters:
- Improved Productivity: By providing accurate and real-time tension measurements, tension meters contribute to improved productivity in manufacturing processes. Operators can quickly identify and address tension issues, reducing downtime and increasing overall efficiency.
- Cost Savings: Accurate tension measurements help prevent material waste and reduce the likelihood of costly production errors. By avoiding over-tensioning, which can lead to material damage, tension meters contribute to cost savings in terms of materials and maintenance.
- Extended Equipment Lifespan: Over-tensioning can accelerate wear and tear on machinery and components. Tension meters help prevent excessive tension, contributing to the extended lifespan of equipment and reducing the frequency of maintenance and replacement.
- Versatility: Tension meters are versatile instruments that can be used across various industries and applications, including wire manufacturing, textiles, printing, automotive, and more. Different types of tension meters are available to suit specific materials and requirements.
- Real-Time Monitoring: Many tension meters provide real-time monitoring capabilities, allowing operators to continuously monitor tension levels during production. This enables prompt adjustments and ensures consistent product quality.
Tension meters offer a range of advantages, including improved product quality, enhanced safety, cost savings, and increased productivity. Their versatility and ability to provide accurate tension measurements make them essential tools in various industries where tension control is crucial.
What are Tension Meters Used for?
Tension meters are versatile tools used across various industries to measure and monitor tension or force in materials. Their applications span a wide range of industries and processes where precise tension control is essential. Here are some common uses for tension meters:
- Wire and Cable Manufacturing: Tension meters are used to measure and control the tension in wires and cables during the manufacturing process. Ensuring proper tension is crucial for producing high-quality, reliable, and consistent products.
- Textile Industry: In the textile industry, tension meters are employed to maintain the desired tension levels in threads and yarns. This is essential for the production of fabrics with uniform strength and characteristics.
- Printing Industry: Tension meters are used in printing presses to control the tension of paper or other printing substrates. Proper tension ensures accurate registration and prevents issues such as wrinkles, misalignment, or print defects.
- Conveyor Systems: Tension meters play a role in conveyor systems where belts or chains are used to transport materials. Proper tension ensures smooth operation, reduces wear on components, and prevents slipping.
- Automotive Industry: Tension meters are used in the automotive industry to measure and control the tension in belts and other components. This includes timing belts, serpentine belts, and other systems where proper tension is critical for performance.
- Flexible Circuit Manufacturing: Tension meters are used in the production of flexible circuits to ensure that the tension in the conductive materials is within the specified range, preventing damage and maintaining the integrity of the circuit.
The common theme across these applications is the need for precise tension control to ensure product quality, operational efficiency, and safety. Tension meters help industries achieve these goals by providing accurate and real-time measurements of tension forces in various materials.
