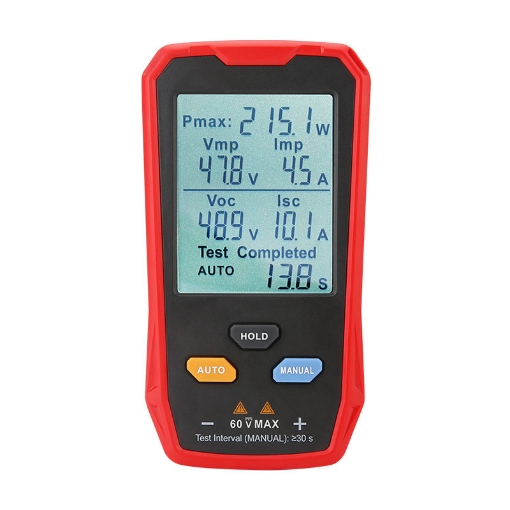

Buy a SISCO solar panel tester for PV module performance testing, capable of measuring sunlight for solar panels. It features over-temperature protection, a small size for easy portability, and simple operation.

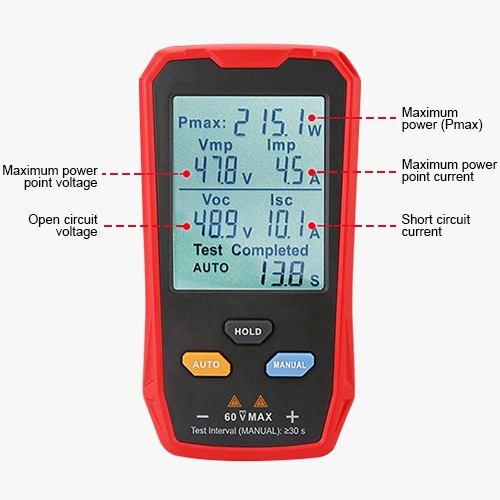

Solar panel tester LCD display
- Maximum power measurement
- Large LCD display
- Short circuit current measurement
- Open circuit voltage measurement

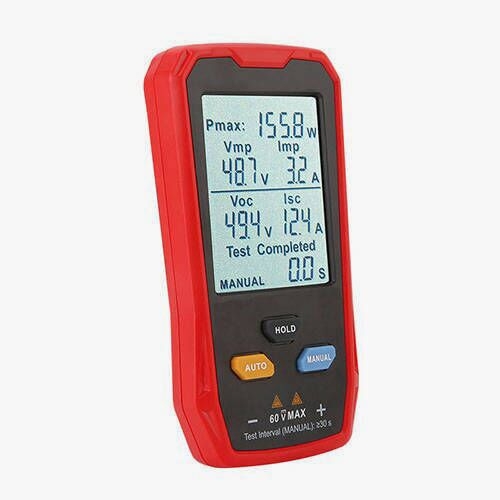

Solar panel tester reliable measurement
- Over temperature protection
- Small size, easy to carry, simple operation
- Standard with MC4 test line, convenient and reliable measurement.

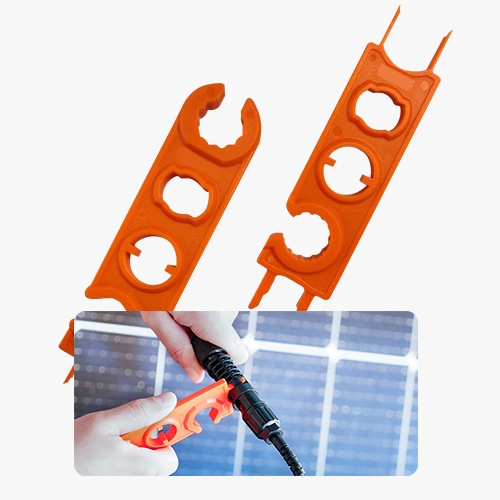

- Standard with MC head, disassembly tools
Applications
The solar panel tester application is a versatile tool designed to monitor and analyze the performance of solar panels, ensuring they operate at peak efficiency. It conducts rigorous testing of solar modules, plays a critical role in quality control during the manufacturing process, and performs comprehensive solar PV performance assessments. These functions collectively contribute to optimizing the efficiency, reliability, and longevity of solar energy systems.

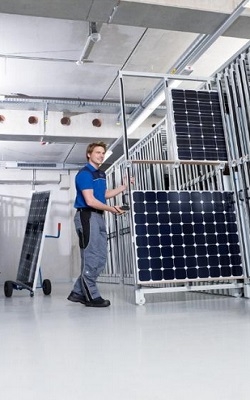

Testing Solar Modules
Quality Control

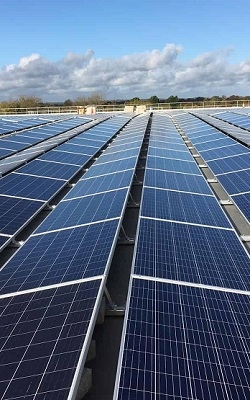

PV Performance Testing

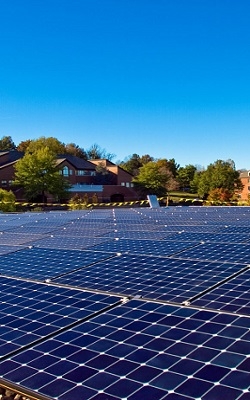

Monitoring Solar Panels
Â
| Model | SISCO-SPT-UT673PV | |
| Basic functions | Range | Basic Accuracy |
| Open circuit voltage measurement | 12-60V | ±(1.5%*5) |
| Power measurement | 5-800W | ±(1.5%+5) |
| Load current | 0-35A | ±(1.5%+5) |
| Special Function | ||
| Input protection | When the input is about 100V, the product will be limited to enter the measurement mode and the LCD will prompt OVERLOAD! | |
| Reverse connection protection | When the input positive and negative poles are reversed, there is no display on the meter interface. | |
| Overvoltage protection | When the input voltage exceeds 60V, the display will show an over-voltage warning (voltage position shows OL). | |
| Overcurrent protection | When the input current exceeds 35A, the display will show an overcurrent warning (current position shows OL). | |
| Over temperature warning | When the measurement time is too long or the current is too large, the temperature of the circuit rises to 50°C, the display will show an over-temperature warning, the meter stops testing, and you need to wait for the meter to cool down and then use it. | |
| Over power protection | When the input voltage or current exceeds the rated power, LCD will display "overload", please disconnect the solar panel in time and use it within the rated range. | |
| Hold | Pressing the HOLD key briefly will keep the current test data and the LCD will display the âHâ symbol. | |
| Safety grade | - | CAT 0 60V |
| Certified | CE(EMCăLVD), cETLus, RoHS | - |
| Basic Parameters | ||
| Power supply | No battery power is required | |
| Weight | 155g | |
| Dimension | 142*76*22mm | |
Â
Details
Q1: What is a solar panel tester?Â
A1: A solar panel tester is a device used to evaluate the performance and functionality of solar panels. It measures various parameters to indicate the health and efficiency of the solar panel to ensure that it is working properly and providing the expected power output. The solar panel tester is an essential tool for solar panel installers, maintenance technicians and those involved in the solar industry.
Q2: How to use a solar panel tester?
A2: To use a solar panel tester, follow these steps:
- Safety First: Ensure youâre wearing appropriate safety gear and that the solar panel system is de-energized if necessary.
- Connect the Tester: Attach the test leads of the solar panel tester to the positive and negative terminals of the solar panel.
- Set the Tester: Choose the appropriate settings on the tester, such as voltage, current, or power measurements.
- Take Readings: Read the measurements displayed on the tester. Compare these readings with the manufacturerâs specifications or performance expectations.
- Analyze Results: Use the results to assess the efficiency of the solar panel and identify any issues that may need attention.
- Disconnect and Record: Once testing is complete, disconnect the tester and record your findings for future reference.
Q3: Can a solar panel tester detect all types of problems?
A3: A solar panel tester can identify issues related to voltage, current, and power output but might not detect all types of problems, such as internal panel damage. For comprehensive diagnostics, additional testing or professional inspection might be needed.
Tips: How does a solar panel tester work?
A solar panel tester works by measuring the electrical output of a solar panel to evaluate its performance. It typically connects to the panelâs terminals to record key parameters like voltage (V) and current (I) under sunlight. By applying a known electrical load, the tester can determine the panel's output at different points, creating an I-V (current-voltage) curve. This curve helps identify the maximum power point (MPP), which is the optimal point for energy generation.
More advanced testers may also simulate various sunlight conditions, detect faults such as damaged cells or poor connections, and provide insights into overall efficiency and performance degradation over time.
