Buy a soil resistivity tester online. It is also a ground resistance tester that can measure ground resistance, soil resistivity, and ground voltage on-site. sisco soil resistivity tester comes with a 0~30000 ohm large range, reading, consulting, saving, reporting, printing and other historical data functions, widely used in electric power, telecommunications, meteorology, oil field, construction, lightning protection and industrial electrical equipment.

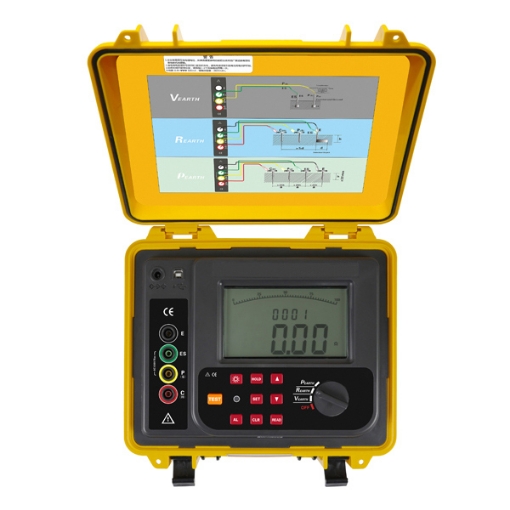

Soil resistivity tester is available with a 0~30kΩ measure range and a waterproof case.
-
Digital earth resistance soil resistivity tester has a precise 3/4-wire and simple 2-wire method to measure earth resistance, soil resistivity and earth voltage.
-
sisco resistance tester has import FFT (fast Fourier transform) technology, and AFC (automatic frequency control) technology, with unique anti-interference ability and environmental adaptability, high repeat test consistency.
-
Package with waterproof protection box, waterproof, crash-proof, anti-drop and durable, and large-capacity rechargeable lithium battery pack, especially suitable for use at outdoor construction sites.
-

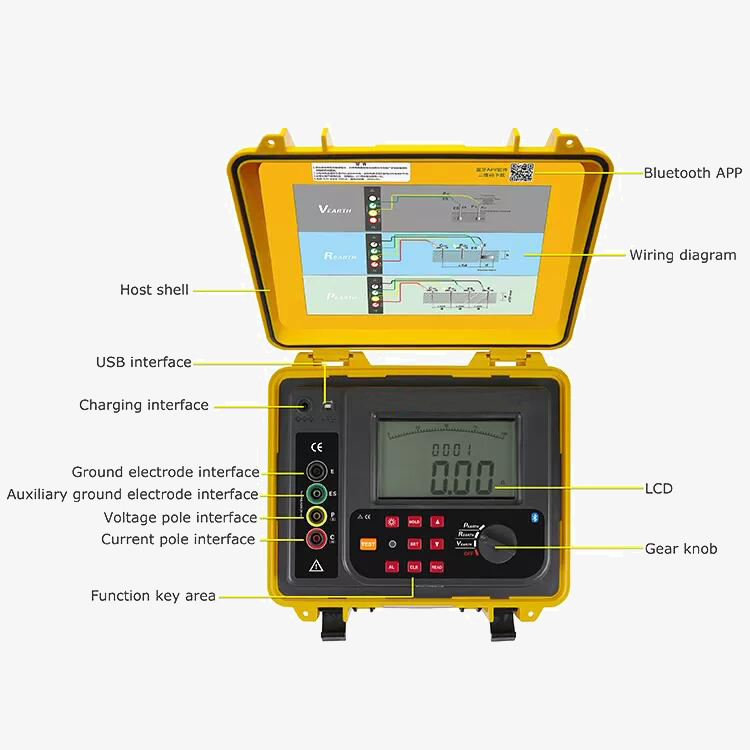

The soil resistivity tester is equipped with a large LCD display of host machine with a white backlight and bar graph indication that can be seen clearly. Alarm function, overload protection function, auto shutdown and data upload function.
Applications
sisco earth resistance tester is available with a measuring range of 0.00Ω-300kΩ. The soil resistivity test with a waterproof box is anti-collision, anti-fall, and waterproof (protection grade IP65), especially suitable for use in outdoor construction sites, widely used to measure the grounding resistance of electric power, telecommunications, meteorology, construction, lightning protection and industrial electrical equipment, etc.
| Model | SISCO-ERT-3100C | ||
| Earth Resistance(R) | Range: 0.00Ω~30.00Ω Resolution: 0.01Ω Accuracy: ±2%rdg±3dgt | ||
| Range: 30.0Ω~300.0Ω Resolution: 0.1Ω Accuracy: ±2%rdg±3dgt | |||
| Range : 300Ω~3000Ω Resolution: 1Ω Accuracy: ±2%rdg±3dgt | |||
| Range: 3.00kΩ~30.00kΩ Resolution: 10Ω Accuracy: ±4%rdg±3dgt | |||
| Earth Voltage | Range: AC 0.0~600V Resolution: 0.1V Accuracy: ±2%rdg±3dgt | ||
| Soil Resistivity(ρ) | Range: 0.00Ωm~99.99Ωm Resolution: 0.01Ωm |
Accuracy: According to the precision of R (ρ=2πaR, a: 1 m-100m, π=3.14) |
|
| Range: 100.0Ωm~999.9Ωm Resolution: 0.1Ωm | |||
| Range: 1000Ωm~9999Ωm Resolution: 1Ωm | |||
| Range: 10.00kΩm~99.99kΩm Resolution: 10Ωm | |||
| Range: 100.0kΩm~999.9kΩm Resolution: 100Ωm | |||
| Range: 1000kΩm~9000kΩm Resolution: 1kΩm | |||
| Power Supply | DC 7.4V 2600mAh rechargeable lithium battery, full charge about DC 8.4V | ||
| Measurement Method | Earth Resistance: rated current change-pole method, measure current 20mA Max Soil Resistivity: Wenner 4-pole measurement Earth Voltage: average rectification(between P(S)-ES) | ||
| Test Frequency | 128Hz/111Hz/105Hz/94Hz (AFC) | ||
| Test Voltage Wave | Sine wave | ||
| Short-circuit Test Current | AC 20mA max | Open-circuit Test Current | AC 40V max |
| Data Storage | 300 groups | Data Hold | Data hold function: “HOLD” symbol display |
| Data Access | Data access function: "READ" symbol display | Overflow Display | Exceeding measure range overflow function: “OL” symbol display |
| LCD Dimension | LCD Frame Dimension: 128mm×75mm； LCD Display Dimension: 124mm×67mm | ||
| Tester Dimension | 280mm(L)×260mm(W)×160mm(H) | ||
| Weight | Total Weight: 5700g(with package) | ||
| Testing Wires | Red 20m, black 20m, yellow 10m, green 10m, red 1.6m, black 1.6m (total 6pcs wires) | ||
| Auxiliary Ground Rod | 4PCS: Φ10mm×250mmp10mmx250mm | ||
| USB Interface | With USB interface, software monitoring, stored data can be uploaded to a computer, saved and printed, data transmission cable length: 1.5m | ||
| Alarm Function | Measure value exceeds alarm setting value, will "Toot-toot-toot" alarm indication | ||
| Auto Shutdown | 15 minutes after power on, will automatically shut down without any operation. | ||
| Overload Protection | Measure earth resistance: between each interfaces of C(H)-E,P(S)-ES, AC 280V/3 seconds | ||
| Interference Test | Automatic recognition of interference signal, interference voltage higher than 5V will display the “NOISE” symbol | ||
| Auxiliary Grounding Test | Auxiliary earth resistance test function: 0.00kΩ~30kΩ(100R+rC<50kΩ, 100R+rP<50kΩ) | ||
| Protection Level | IP65（close the case） | ||
| Battery Voltage | When the battery voltage decreases to around DC 7.2V+0.1V, will display battery voltage low symbol, and remind to replace the battery | ||
| Working Current | Standby: around 20mA (Backlight close); Power on with backlight: 45mA (backlight close 25mA); Measurement: 100mA (Backlight close) | ||
| Accessories | Tester: 1PC; Ground Rod: 4PCS; Test wires: 4PCS; Simple test wire: 2PCS; USB data transmission cable: 1PCS; Tester bag: 1PCS; Special charger: 1PCS | ||

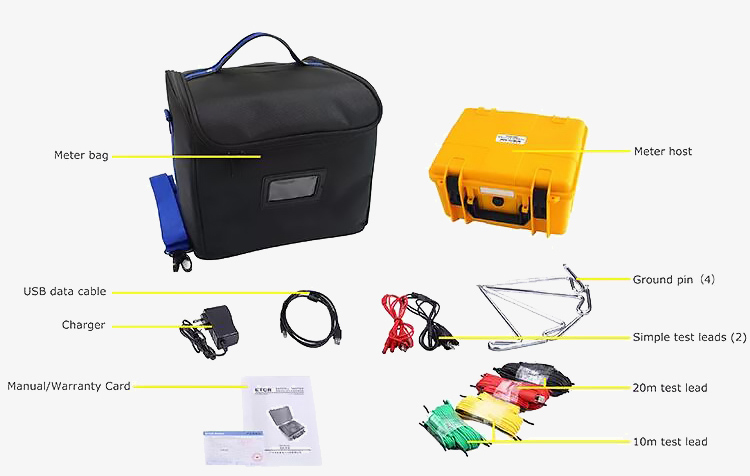

Package List
Q1: What is ground resistance?
A1: Ground resistance is the resistance encountered when the current flows from the grounding device to the ground and then flows to another grounding body or spreads to a distant place through the ground. It includes the resistance of the grounding wire and the grounding body itself, the contact resistance between the grounding body and the resistance of the earth, and the resistance of the earth between the two grounding bodies or the earth resistance from the grounding body to infinity. sisco digital earth resistance tester is specially designed for measuring ground resistance, which can prevent ground faults.
Q2: What is an earth resistance tester?
A2: The earth resistance tester is a resistance measuring device, which is used to measure the grounding resistance and the resistance value of low-resistance conductors of various equipment in departments such as electric power, post and telecommunications, railways, communications, and mines. The resistance tester also measures soil resistivity and ground voltage.
Q3: What is the earth resistance tester used for?
A3: The ground resistance tester can accurately measure the grounding impedance, grounding resistance and grounding reactance of large grounding grids.
- It accurately measures the surface potential gradient in the large-scale grounding grid area.
- Earth resistance tester can measure the contact potential difference, contact voltage, step potential difference and step voltage of large grounding grids.
- Measure the transfer potential of large-scale grounding grids and soil resistivity accurately.
- Digital earth resistance tester is used to measure the on-resistance of the grounding down-conductor.
Tips: What is soil resistivity?
The soil resistivity tester is used to measure the resistivity of the soil. What is the resistivity of the soil?
Soil resistivity is the average value of soil resistance per unit length. Soil resistivity is a commonly used parameter in the calculation of grounding engineering, which directly affects the size of the grounding resistance of the grounding device, the ground potential distribution of the ground grid, the contact voltage and the step voltage. Soil resistivity is an important factor in determining the resistance of the grounding body. In order to reasonably design the grounding device, the soil resistivity must be measured in order to use the measured resistivity as the calculation parameter of the grounding resistance. One of the methods of measuring soil resistivity is to measure the grounding resistance of the grounding body. After measuring the grounding resistance of the grounding body, the soil resistivity is calculated according to the formula. At present, the soil resistivity tester is one of the most effective equipments for testing resistivity.
