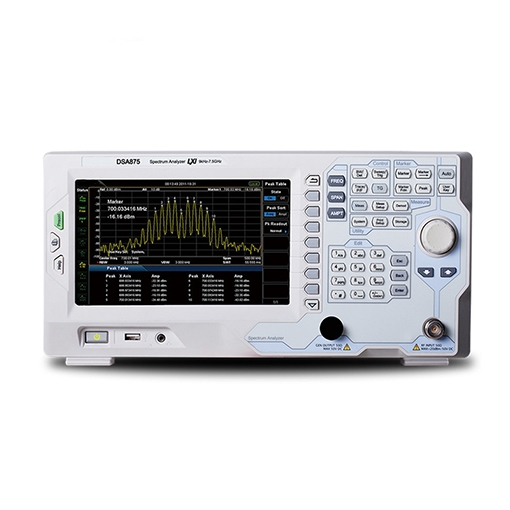

    9 kHz~7.5 GHz Portable Spectrum Analyzer

    SISCO inexpensive portable spectrum analyzer with a frequency range from 9 kHz up to 7.5 GHz, RBW accuracy<5%, and the average noise level displayed is as low as -161dBm, which can effectively ensure the test capability of weak signals.
    SKU: SISCO-SA-DSA875
    $15,420.77
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Cheap price handheld spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The digital spectrum analyzer features a widescreen display, compact design, and easy-to-use interface making it ideal for benchtop or field apps in RF and wireless testing and production.

    USB spectrum analyzer detail

    High-accuracy network spectrum analyzer

    • The frequency spectrum analyzer has a Max frequency of up to 1 GHz and adopts all-digital IF technology to ensure stable performance.
    • The wide-screen design has a novel appearance and is easy to operate.
    • Intuitive software with advanced analysis tools and a high-resolution display. This ensures ease of use and provides clear visualization of complex signal characteristics.
    USB spectrum analyzer detail

    Rich interface configuration for spectrum analyzers

    • LAN (Local Area Network): Enables remote control and monitoring of the spectrum analyzer over a network. This interface facilitates data transfer, remote access, and integration into automated test systems, enhancing flexibility and productivity.
    • USB Host: Allows connection of USB peripherals such as external storage devices, keyboards, and mice. This interface makes it easy to save measurement data, update firmware, and control the analyzer using external input devices.
    • USB Device: Used to connect the spectrum analyzer directly to a computer for data transfer, remote control, and software updates. This interface supports high-speed communication and simplifies data management.

    Dimension

    Spectrum analyzer size

    Applications

    SISCO spectrum analyzer is an instrument used to measure and analyze the frequency spectrum of electromagnetic signals. The frequency spectrum analyzer helps identify and quantify the frequency components, amplitude, and sources of interference in signals, assisting engineers in optimizing device performance and ensuring compliance with relevant standards, which is the ideal choice for RF R&D, design verification, manufacturing, education and training.

    Spectrum analyzer for design verification

    Design Verification

    Spectrum analyzer for manufacturing

    Manufacturing

    Spectrum analyzer for education and training

    Education & Training

    Spectrum analyzer for RF-R&D

    RF R&D

    Specs



    Model SISCO-SA-DSA832
    Frequency range 9 kHz~7.5 GHz
    Aging rate <1 ppm/year
    Temperature drift <0.5 ppm/year (20℃~30℃)
    Resolution bandwidth 10 Hz~1 MHz in 1-3-10 steps
    Phase noise (typical) -98 dBc/Hz@10kHz offset
    Full amplitude accuracy <0.8 dB
    Displayed average noise level (DANL)  -161 dB (normalized to 100 Hz)
    Preamplifier Optional
    Measurement range 9 kHz~7.5 GHz, DANL to 20dBm
    Frequency resolution 1 Hz
    Internal reference frequency 10 MHz
    RBW accuracy <5%, nominal value
    Shape factor <5% nominal value (60dB: 3dB)
    Video bandwidth (-3dB) 1-3-10 in 1Hz to 3MHz steps
    Max damage level 30 dBm (1W)
    Detection method  Standard Positive peak, negative peak, sampling, RMS, voltage average, quasi-peak (with EMI option)
    Trace function Erase write, Max hold, Min hold, average, view, close
    Scale unit dBm, dBmV, dBuV, nV, mV, nW, uW, mW, W
    10 MHz reference input/output
    Advanced measurement function Optional
    Display 8"TFT LCD, 800*480 resolution
    Interface LAN, USB Host, USB Device, GPIB (optional)
    Weight 4.55kg
    Dimensions 361.6mm*178.8*128mm



    Detail

     Spectrum analyzer detail

    FAQs

    Q1: What is a spectrum analyzer?
    A1: A spectrum analyzer is an electronic instrument used to measure and display the amplitude of signals across a range of frequencies. It provides a visual representation of the frequency spectrum, showing the strength of signals at different frequencies. Spectrum analyzers are widely used in telecommunications, broadcasting, electronics design, and electromagnetic compatibility (EMC) testing to identify and analyze signals, detect interference, and ensure compliance with relevant standards.

    Q2: What is spectrum analyzer resolution bandwidth?
    A2: Resolution bandwidth (RBW) is a key parameter of a spectrum analyzer that defines the smallest frequency difference that can be resolved by the instrument. It determines the analyzer's ability to distinguish between two closely spaced signals. A narrower RBW allows for finer frequency resolution and better separation of closely spaced signals, but it also results in longer sweep times and lower signal-to-noise ratio. Conversely, a wider RBW provides faster measurements but with coarser frequency resolution.

    Q3: Is a spectrum analyzer a device used for signal analysis?
    A3: Yes, a spectrum analyzer is a device used for signal analysis. It measures and displays the frequency content of signals, allowing for the examination of signal characteristics such as amplitude, frequency, and noise levels. This analysis helps in identifying signal components, diagnosing issues related to interference and noise, and ensuring that signals meet specific criteria for performance and regulatory compliance. Spectrum analyzers are essential tools in various fields, including telecommunications, electronics, and EMC testing.

    Tips: Is a spectrum analyzer capable of detecting and analyzing noise and interference?

    Yes, spectrum analyzers are highly capable of detecting and analyzing noise and interference in signals. They are designed to measure and display the amplitude of signals across a range of frequencies, allowing engineers and technicians to identify unwanted signals such as noise and interference. Spectrum analyzers can distinguish between signal components and noise, providing insights into the frequency, amplitude, and characteristics of interference sources. This capability is essential in telecommunications, electronics testing, and electromagnetic compatibility (EMC) assessments to ensure signal integrity, identify sources of interference, and optimize system performance.
