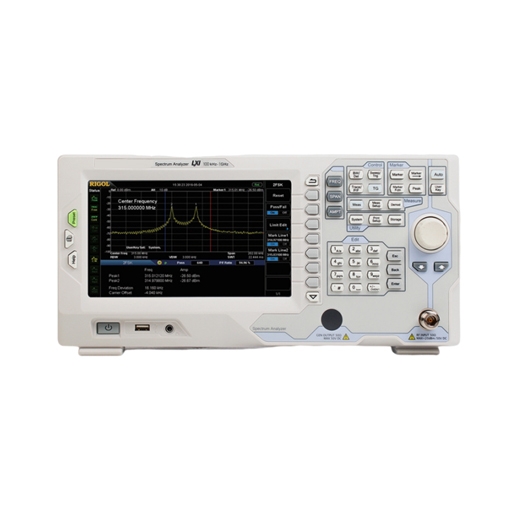

Cheap price spectral analyzer online for sale. The digital spectrum analyzer features a frequency range from 100 kHz to 1 GHz, a widescreen display, a compact design, and an easy-to-use interface making it ideal for RF R&D, design verification, manufacturing, education and training.
High-accuracy network spectrum analyzer
- The frequency spectrum analyzer has a Max frequency of up to 1 GHz and adopts all-digital IF technology to ensure stable performance.
- The wide-screen design has a novel appearance and is easy to operate.
- Intuitive software with advanced analysis tools and a high-resolution display. This ensures ease of use and provides clear visualization of complex signal characteristics.
Rich interface configuration for spectrum analyzers
- LAN (Local Area Network): Enables remote control and monitoring of the spectrum analyzer over a network. This interface facilitates data transfer, remote access, and integration into automated test systems, enhancing flexibility and productivity.
- USB Host: Allows connection of USB peripherals such as external storage devices, keyboards, and mice. This interface makes it easy to save measurement data, update firmware, and control the analyzer using external input devices.
- USB Device: Used to connect the spectrum analyzer directly to a computer for data transfer, remote control, and software updates. This interface supports high-speed communication and simplifies data management.
Dimension
Applications
SISCO spectrum analyzer is an instrument used to measure and analyze the frequency spectrum of electromagnetic signals. The frequency spectrum analyzer helps identify and quantify the frequency components, amplitude, and sources of interference in signals, assisting engineers in optimizing device performance and ensuring compliance with relevant standards, which is the ideal choice for RF R&D, design verification, manufacturing, education and training.
Design Verification
Manufacturing
Education & Training
RF R&D
Â
| Model | SISCO-SA-DSA710 |
| Frequency range | 100 kHz~1 GHz |
| Aging rate | ＜2 ppm/year |
| Temperature drift | ＜2 ppm/year (20℃~30℃) |
| Resolution bandwidth | 100 Hz~1 MHz in 1-3-10 steps |
| Phase noise (typical) | -80 dBc/Hz@10kHz offset |
| Full amplitude accuracy | ＜1.5 dB |
| Displayed average noise level (DANL)Â | -130 dB (normalized to 100 Hz) |
| Preamplifier | Standard |
| Measurement range | 100 MHz~1 GHz, DANL to 20dBm |
| Frequency resolution | 1 Hz |
| Internal reference frequency | 10 MHz |
| RBW accuracy | ＜5%, nominal value |
| Shape factor | ＜5% nominal value (60dB: 3dB) |
| Video bandwidth (-3dB) | 1-3-10 in 1Hz to 3MHz steps |
| Max damage level | 30 dBm (1W) |
| Detection method | Standard Positive peak, negative peak, sampling, RMS, voltage average, quasi-peak (with EMI option) |
| Trace function | Erase write, Max hold, Min hold, average, view, close |
| Scale unit | dBm, dBmV, dBuV, nV, mV, nW, uW, mW, W |
| 10 MHz reference input/output | √ |
| Advanced measurement function | Optional |
| Display | 8"TFT LCD, 800*480 resolution |
| Interface | LAN, USB Host, USB Device, GPIB (optional) |
| Weight | 4.25kg |
| Dimensions | 361.6mm*178.8*128mm |
Â
Detail

Q1: What is a spectrum analyzer?
A1: A spectrum analyzer is an electronic instrument used to measure and display the amplitude of signals across a range of frequencies. It provides a visual representation of the frequency spectrum, showing the strength of signals at different frequencies. Spectrum analyzers are widely used in telecommunications, broadcasting, electronics design, and electromagnetic compatibility (EMC) testing to identify and analyze signals, detect interference, and ensure compliance with relevant standards.
Q2: What is spectrum analyzer resolution bandwidth?
A2: Resolution bandwidth (RBW) is a key parameter of a spectrum analyzer that defines the smallest frequency difference that can be resolved by the instrument. It determines the analyzer's ability to distinguish between two closely spaced signals. A narrower RBW allows for finer frequency resolution and better separation of closely spaced signals, but it also results in longer sweep times and lower signal-to-noise ratio. Conversely, a wider RBW provides faster measurements but with coarser frequency resolution.
Q3: Is a spectrum analyzer a device used for signal analysis?
A3: Yes, a spectrum analyzer is a device used for signal analysis. It measures and displays the frequency content of signals, allowing for the examination of signal characteristics such as amplitude, frequency, and noise levels. This analysis helps in identifying signal components, diagnosing issues related to interference and noise, and ensuring that signals meet specific criteria for performance and regulatory compliance. Spectrum analyzers are essential tools in various fields, including telecommunications, electronics, and EMC testing.
Tips: What are the primary uses of a network spectrum analyzer?
A network spectrum analyzer is primarily used to measure and analyze the frequency spectrum of signals in a network, helping identify and troubleshoot issues related to noise, interference, and signal quality. It is commonly employed in telecommunications, broadcasting, and electronic design to ensure optimal performance and compliance with regulatory standards. The analyzer can detect unwanted signals, pinpoint sources of interference, assess signal quality, and verify that devices do not emit excessive electromagnetic interference (EMI) while maintaining functionality in the presence of external noise. This makes it an essential tool for maintaining the integrity and reliability of network systems. Â Â
