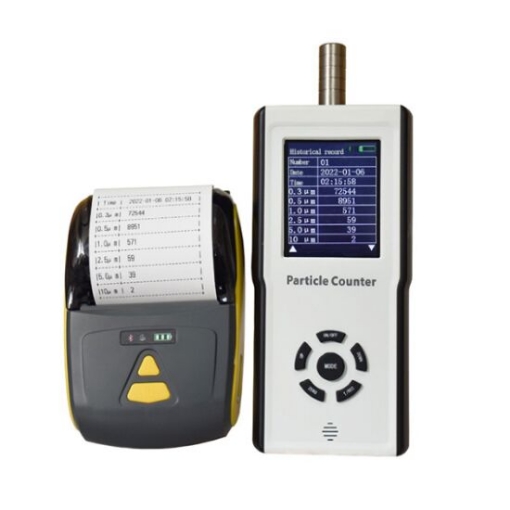

Portable Dust Particle Counter with Printer

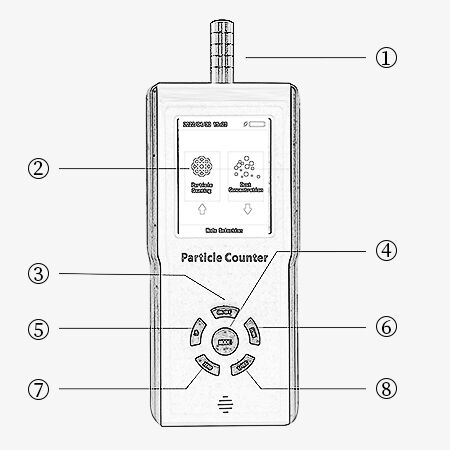

Structure Diagram

1. Sampling Port
2. LCD Monitor
3. ON/OFF: On-off/back
4. MORE: Enter key
5. UP
6. DOWN: Udown key
7. ZERO: Zero clearing/Setting function
8. T/REC: Historical data

SISCO Particle Counter MKS 880 User Manual

Q1: How to use the handheld particle counter?
A1: The particle counter is simple to use, first determine the number of test points according to the area of the clean room and distribute the test points evenly in the clean room, then set the measurement time, measurement unit, flow rate, and other parameters of the particle counter, then put the particle counter on the plane of 1~1.2 meters height from the ground in the middle of the sampling point, and finally start to test the sampling and record the data one by one.

Q2: How to change the printing paper of the particle counter?
A2: Generally, the printing part of the particle counter has a cover, some covers can be lifted directly to cover, lift it to replace the printing paper, and some need to use a screwdriver to unscrew the screw, the specific instructions are also introduced, open the cover to follow the thermal printing paper can be replaced.

Q3: How to read the dust particle counter?
A3: The results of the dust particle counter, generally the left column is the particle diameter, and the right column is the number of particles per cubic meter.

Tips: Advantages of Particle Counters

• As an important tool for detecting the number of suspended particles in the air, particle counters have the following main advantages:
  High sensitivity and accuracy. Modern particle counters can detect dust particles of extremely small particle sizes and maintain accurate measurement results even in environments with extremely low particle concentrations. This is crucial for industries that require extremely high cleanliness, such as semiconductor production and biopharmaceuticals.
• Wide measurement range and versatility. Advanced particle counters are usually equipped with multiple particle size channels, which can simultaneously measure particles of various particle sizes to meet the diverse monitoring needs of different scenarios. Some devices can also monitor other parameters such as temperature and humidity in the environment to provide a more comprehensive environmental quality assessment.
• Portability and flexibility. The portable design and multiple power supply methods allow particle counters to be quickly deployed and flexibly monitored in different locations.
• Devices that support wireless data transmission also provide additional convenience, making data collection and analysis more efficient.
• Reliability and stability. The rigorously designed and manufactured particle counters have good durability and stability, can operate stably in various complex environments, and provide reliable data support. The automatic calibration function further ensures the accuracy of data during long-term use.

Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.

What is covered?

SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

What is not covered?

• Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
• Expendable parts.
• Routine cleaning or normal cosmetic and mechanical wear.
• Damage from misuse, abuse or neglect.
• Damage from use of parts other than SISCO approved.
• Damage from use outside the product’s usage or storage parameters.
• Damage from use of parts not sold by SISCO.
• Damage from modification or incorporation into other products.
• Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
• Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
