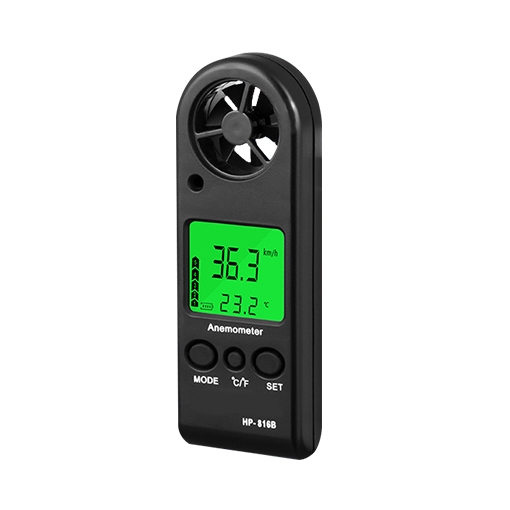

    Mini Vane Anemometer, 0~30 m/s

    High-performance mini vane anemometer can accurately measure wind speed 0.3~30m/s (Β±5% of rdg ), resolution 0.1m/s, and wind chill in high accuracy and real-time measurement. The vane-type anemometer with a backlight screen makes it easier to read in dark conditions.
    SKU: SISCO-CA-HP816B
    $49.23
    i h
    🚚 Free shipping
    πŸ”™ 30-day returns
    πŸ“… Delivery: 7-12 days
    Overview


    Lower-cost wind vane anemometer is compact and lightweight which is easy to carry. The digital vane anemometer has functions of auto/ manual power off; ℃/℉ two units can be switched, wind speed units of m/s, Ft/min, Knots, Km/hr, and Mph can be chosen. The digital vane-type anemometer can be used for outdoor activities, like shooting, sailing, and mountain climbing measurements.

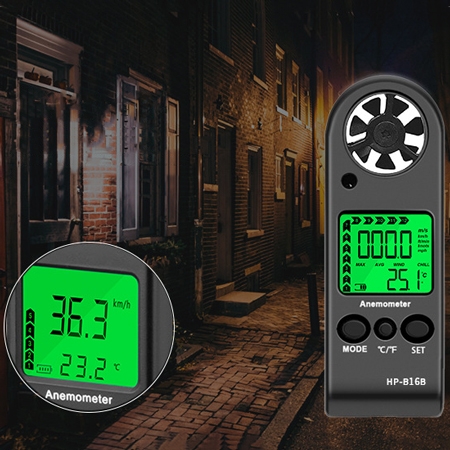

    Mini vane anemometer detail

    Heat Index Checker Wet Bulb Globe Temperature

    • The mini vane anemometer is equipped with a backlit display, ensuring clear and easy visibility in low-light conditions or during nighttime use. This feature is especially useful for outdoor applications where lighting may be limited.
    • The high-contrast backlit screen provides real-time wind speed and temperature readings, ensuring that users can quickly access accurate data without straining their eyes.
    • Depending on the model, the backlight may either activate automatically in low-light conditions or can be manually switched on and off, offering flexibility based on the user's preferences.

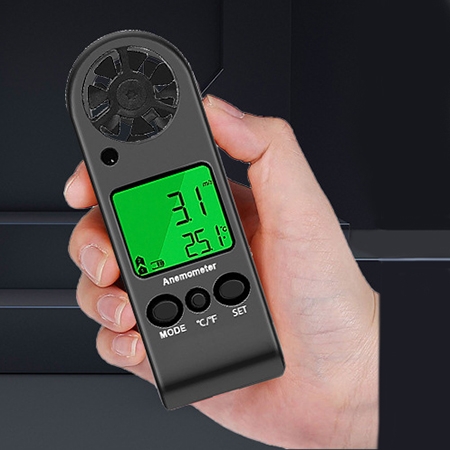

    Mini vane anemometer detail

    Mini Vane Anemometer Features

    • Wind Chill Indication: The mini vane anemometer offers a wind chill indicator, allowing users to understand the "feels-like" temperature based on the current wind speed and air temperature.
    • Current Wind Speed Measurement: With a highly responsive vane sensor, the anemometer delivers real-time current wind speed data. The precision of the device ensures that users get instant feedback on wind conditions, whether in m/s, km/h, mph, or knots.
    • Low Battery Display: The digital vane anemometer is equipped with a low battery indicator on the display, ensuring users are alerted well in advance when the power is running low.
    • Automatic/Manual Shutdown: Designed for power efficiency, the device supports both automatic and manual shutdown options. The auto-shutdown feature conserves battery life by turning off the device after a period of inactivity, while the manual shutdown allows users to power off the device when desired. This flexibility maximizes battery usage and ensures that the anemometer is always ready for action.
    • Max/Average Wind Speed Tracking: The vane anemometer can calculate and display maximum and average wind speeds over a user-defined period.

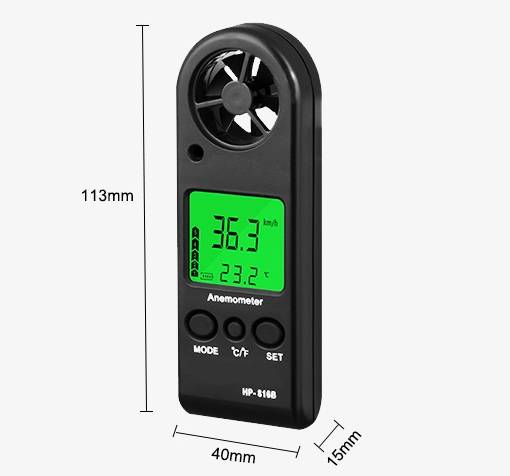

    Dimension

    Mini vane anemometer size

    Applications

    SISCO cup anemometer is widely used for data acquisition in boilers, refrigeration, HVAC, ventilation ducts, agriculture meteorological stations, meteorological monitoring for seaport, navigation, wind power, improved air circulation and daily speed measurement.

    Weighing indicator for wind power

    Wind Power

    Weighing indicator for improve air circulation

    Improve Air Circulation

    Weighing indicator for daily speed measurement

    Daily Speed Measurement

    Weighing indicator for navigation

    Navigation

    Specs

    Β

    Model SISCO-CA-HP816B
    Wind Speed Range 0~30 m/s
    Resolution 0.1 m/s
    Accuracy Β±5%
    Threshold 0.1 m/s
    Temp. Range -10~50℃/14℉~113℉
    Temp. Resolution 0.2℃/0.36℉
    Temp. Accuracy Β±2β„ƒοΌˆ+/-3.6℉)
    Thermometer NTC thermometer
    Operating Temperature -10℃~45℃(14℉~113℉)
    Operating Humidity ≀90%RH
    Store Temperature -40℃~60℃(-40℉~140℉)
    Current Consumption About 3mA
    Weight 60g
    FAQs

    Q1: What is digital anemometer?
    A1:
    Digital Anemometer allows for measuring atmospheric effects, namely wind velocity, temperature, and humidity for better data analysis. It also possesses various features such as the Beaufort scale, switches between Celsius and Fahrenheit, switches between metric and imperial systems, or the battery status indicator.

    Q2: How does a digital anemometer measure wind speed?
    A2: On the instrument, press the unit button to view the range of measurement options and select the relevant one. Once it's showing the correct unit of measurement, it's ready to calculate the speed.

    Q3: How does a digital anemometer work?
    A3: The arms are attached to a vertical rod. As the wind blows, the cups rotate, making the rod spin. The stronger the wind blows, the faster the rod spins. The anemometer counts the number of rotations, or turns, which is used to calculate wind speed.

    Tips: Is the mini vane anemometer suitable for outdoor use?

    Yes, the Mini Vane Anemometer is specifically designed for outdoor use. Its durable construction, featuring robust materials such as ABS plastic and a high-quality vane sensor, ensures that it can withstand various environmental conditions. The device is ideal for outdoor activities like hiking, sailing, and weather monitoring.

    However, while it can handle general outdoor exposure, it’s advisable to avoid prolonged exposure to extreme weather conditions like heavy rain or extreme temperatures, as this could affect the long-term performance of the device. For optimal durability, ensure proper storage when not in use.
